Поз.
Артикул
Описание

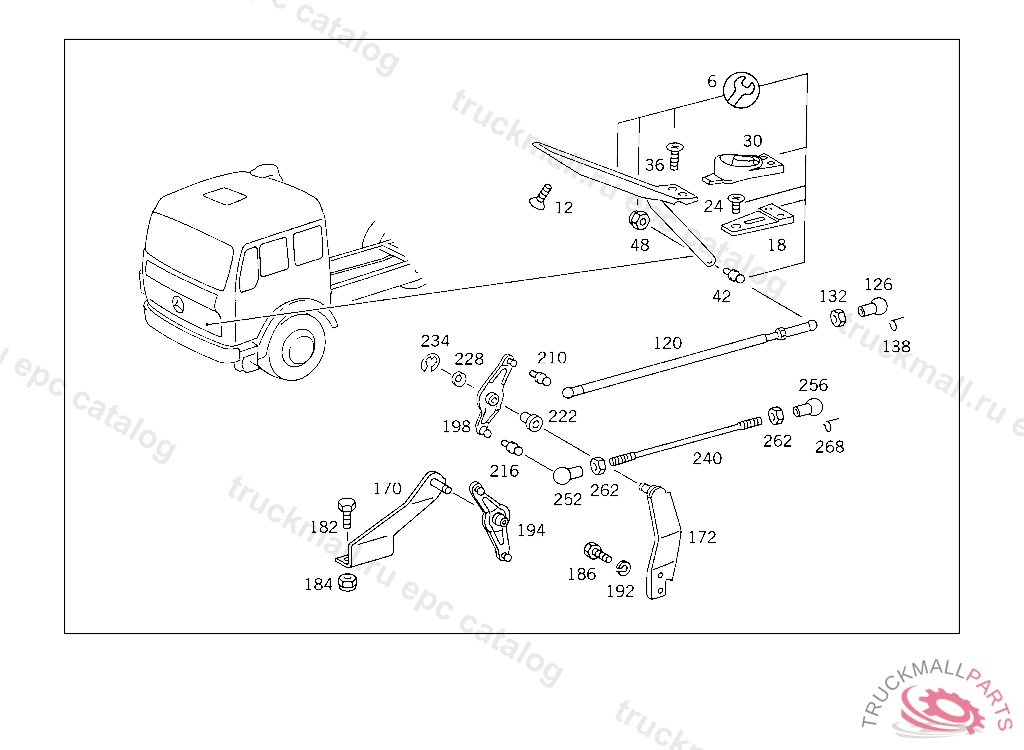

6
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
12
SCREW ACCELERATOR PEDAL
18
SHIM ACCELERATOR PEDAL
24
SCREW PEDAL TO CAB FLOOR
30
BOOT ACCELERATOR PEDAL
36
SCREW ACCELERATOR PEDAL TO CAB M 6X25
42
BALL PIVOT LOAD SENSOR
48
NUT PUMP TO BRACKET
48
NUT , Replaced By: N913004006001
120
ROD LOAD SENSOR CONTROL
126
BALL SOCKET PULL ROD TO LEVER
132
NUT BALL PIVOT TO LEVER
138
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
170
BEARING BRACKET INTERMEDIATE BEARING
182
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
184
NUT , Replaced By: N910113010000
184
NUT STRAP TO BRACKET
194
LEVER INTERMEDIATE BEARING
210
BALL STUD. BALL PIVOT TOP B10X4,5 MM
216
BALL PIVOT BOTTOM B13X5 MM
228
COVERING INTERMEDIATE BEARING
234
LOCK PLATE INTERMEDIATE BEARING
240
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
252
BALL SOCKET ROD TO BALL PIVOT
256
BALL SOCKET ROD TO BALL PIVOT
262
NUT
268
SECURING CLIP. CIRCLIP
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
LEVER (INTERMEDIATE LEVER)
999
PAD ACCELERATOR PEDAL
