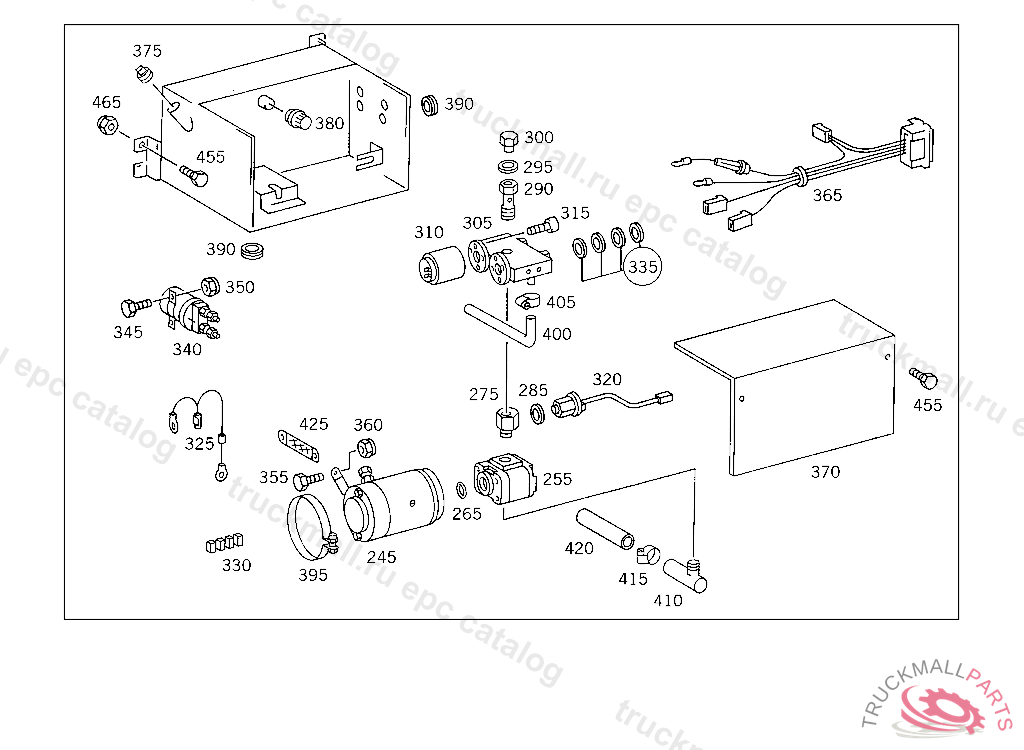

Поз.
Артикул
Описание
245
MOTORBOSCH
245
MOTORSWE
255
PUMPBOSCH
255
PUMPSWE
265
SEAL RINGBOSCH
265
SEAL RINGSWE
275
VALVE (CHECK VALVE) BOSCH
275
VALVE (CHECK VALVE) SWE
285
SEAL RING , Replaced By: N007603018101
285
SEAL RING VALVE TO VALVE,K 025179
290
HOLLOW SCREW SOLENOID VALVE
295
SEAL RING SOLENOID VALVE
300
SCREW , Replaced By: A0019976130
300
SCREW PLUG
305
VALVE , Replaced By: A0005504355
305
VALVE (CONTROL VALVE)
305
VALVE (CONTROL VALVE)
305
VALVE , Replaced By: A0005505355
310
MAGNET
315
SCREW
320
SWITCH (PRESSURE SWITCH) 140 BAR
325
CONTROL UNIT THERMAL SWE
330
CARBON BRUSH PARTS KIT SWE
330
CARBON BRUSH PARTS KIT BOSCH
335
SEAL RING PARTS KIT SWE
340
CONTACTOR
340
COIL , Replaced By: A0005450967
340
CONTACTOR
340
COIL , Replaced By: A0005450967
345
SCREW IN CASE OF SUBSEQUENT INSTALLATION
350
NUT TWO-WAY VALVE TO BRACKET
355
SCREW COVER PLATE TO COVER PLATE M 6 X 12
355
SCREW , Replaced By: N304017006018
360
NUT PUMP TO BRACKET
360
NUT , Replaced By: N913004006001
365
CABLE HARNESS ELECTRIC
370
COVER SWITCH BOX
375
SCREW PLUG OIL TANK
380
FILTER HOUSING OIL TANK
390
GROMMET OIL TANK
390
GROMMET , Replaced By: A6999970181
395
BRACKET ENGINE
400
HOSE FROM OIL TANK TO SOLENOID VALVE, ORDER BY THE METER
400
HOSE FROM OIL TANK TO SOLENOID VALVE
405
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
405
CLAMP , Replaced By: N916017011001
410
LINE OIL TANK SWE
410
LINE OIL TANK BOSCH
415
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
415
CLAMP , Replaced By: N000000000667
420
HOSE
425
GROUND STRAP ENGINE SWE
455
SCREW BRACKET TO SIDE MEMBER
455
SCREW , Replaced By: N304017010002
455
SCREW END PIECE TO EXHAUST PIPE M 10X25
465
NUT STRAP TO BRACKET
465
NUT , Replaced By: N910113010000
999
LOCK MOUNTING BRACKET
