Поз.
Артикул
Описание

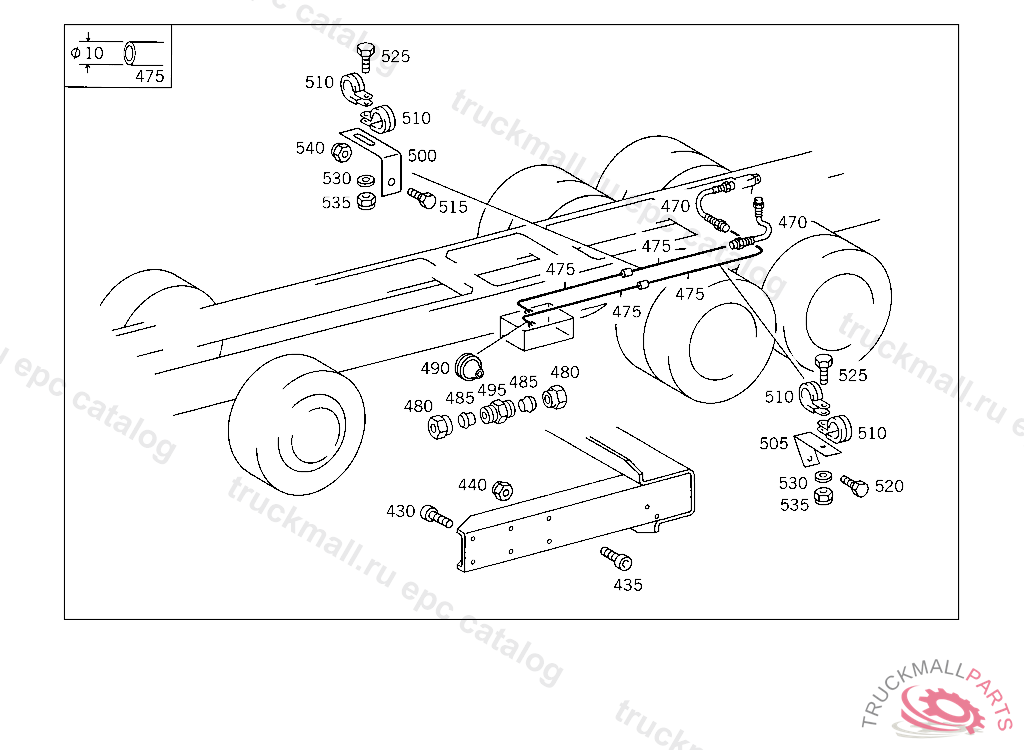

430
SCREW RUBBER MOUNTING TO FRONT CONSOLE
435
SCREW SWINGING LINK TO TRAILING AXLE M 16X120
440
NUT INTERMEDIATE PIECE TO SUPPORT
440
NUT , Replaced By: N910113016003
470
HOSE FROM OIL PUMP TO CYLINDER
475
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
475
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
480
UNION NUT OIL LINE
480
NUT. UNION NUT LINE CONNECTION
485
CUTTING RING. GLAND LINE CONNECTION
490
GROMMET FOR PASSAGE OF LINE
495
FITTING (PARTS KIT),LINE RUPTURE
500
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
505
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
505
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205244040
510
CLAMP CABLE HARNESS MOUNTING
510
CLAMP , Replaced By: N000000001045
510
CLAMP , Replaced By: N916016010211
515
SCREW BRACKET TO CROSS CONNECTION STRUT
515
SCREW , Replaced By: N304017008034
520
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
520
SCREW , Replaced By: N304017008027
525
SCREW LICENSE PLATE TO BRACKET
525
SCREW , Replaced By: N304017006020
530
WASHER COMPRESSED AIR LINE TO BRACKET
530
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
535
NUT PUMP TO BRACKET
535
NUT , Replaced By: N913004006001
540
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
540
NUT , Replaced By: N913004008001
999
LOCK MOUNTING BRACKET
999
VALVE , Replaced By: A0005505355
