Поз.
Артикул
Описание

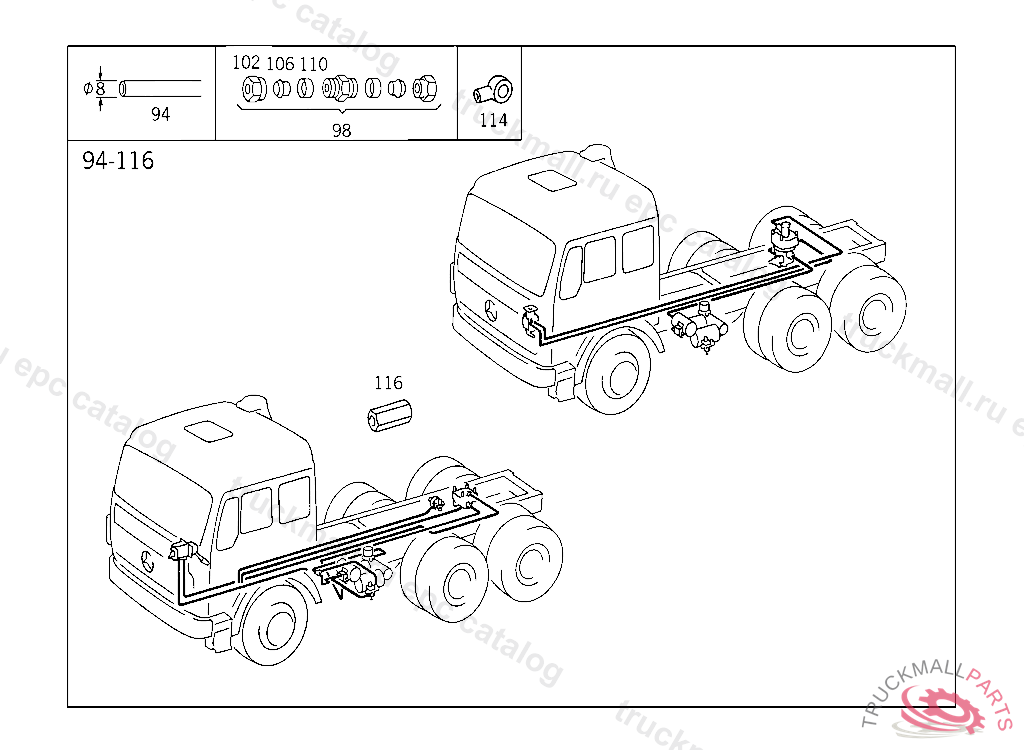

94
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
98
FITTING , Replaced By: A0029905971
98
FITTING (PARTS KIT),LINE RUPTURE
102
UNION NUT LINE CONNECTION
106
GLAND LINE CONNECTION
110
SLEEVE LINE CONNECTION
114
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
114
BANJO UNION HEATING CONNECTION,K 169122
114
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER STRAP TO SUPPORT
999
SEAL RING LINE CONNECTION
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LINE CONNECTION
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
999
SEAL RINGKNORR
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT PRESSURE REGULATOR KNORR
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
REPAIR KIT (SERVICE BRAKE VALVE) WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
CONNECTOR REPAIR SIZE
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
REPAIR KIT , Replaced By: A0004308006
999
GASKET KITBOSCH
999
GASKET KITWABCO
999
GASKET KITKNORR
999
VALVE (REGULATING VALVE)
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PRESSURE REGULATORKNORR
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
REPAIR KITKNORR
999
SEAL RING TOP WABCO
999
SPRING INSIDE WABCO
999
SEAL RING INSIDE WABCO
999
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
UNIT IDENTIFICATION PLATE SYMBOL: LONGITUDINAL DIFFERENTIAL LOCK
999
ADHESIVE FOIL GUIDE SIGN
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF STEEL AXLE
999
BRACKET , Replaced By: A6205243040
999
BRACKET BRACKET TO CROSS MEMBER
999
WASHER AT TWO-WAY VALVE
