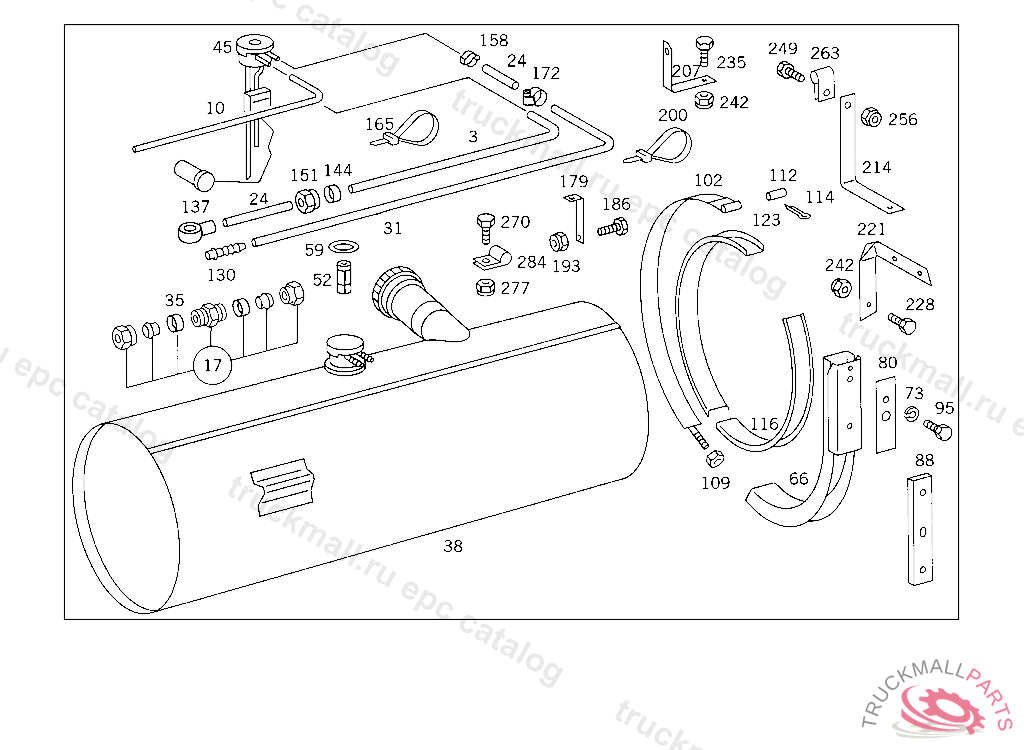

Поз.
Артикул
Описание
3
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
17
FITTING , Replaced By: A0029905971
17
FITTING (PARTS KIT),LINE RUPTURE
24
HOSE LEAK LINE
24
HOSE LEAK LINE
31
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
31
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
35
SLEEVE FEED
38
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
38
FUEL TANK , Replaced By: A3874701601
38
FUEL TANK
38
FUEL TANK , Replaced By: A3874702301
45
SENDER UNIT , Replaced By: A0055424117
45
SENDER UNIT FUEL GAUGE,K 169123
45
SENDER UNIT ,4 316249, Replaced By: A0045424017, +001A3054760126, +002A3879900078
45
SENDER UNIT FUEL GAUGE,K 169123
45
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
45
SENDER UNIT , Replaced By: A0085428317
45
SENDER UNIT , Replaced By: A0055424117
52
FUEL STRAINER FUEL TANK,K 169122
59
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT FUEL TANK
66
SUPPORT , Replaced By: A3874702142
73
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
80
SHIM SUPPORT TO SIDE MEMBER
88
BASE SUPPORT TO SIDE MEMBER
95
SCREW BRACKET TO CAB CONSOLE,K 035197
102
STRAP FUEL TANK
109
NUT STRAP TO SUPPORT
112
PIN STRAP TO SUPPORT
112
PIN STRAP TO SUPPORT
114
COTTER PIN STRAP TO SUPPORT
116
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
123
PAD STRAP, ORDER BY THE METER
123
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
130
FITTING RETURN
137
BANJO UNION , Replaced By: N000000000363
144
CONNECTOR RIGHT,177-LITER
144
SLEEVE FEED
144
SLEEVE FEED
151
UNION NUT FUEL HOSE
158
CLIP LEAK LINE
165
LOOM TIE LINE MOUNTING 280 MM
172
CLAMP , Replaced By: N000000000665
172
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
179
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
186
SCREW , Replaced By: N304017008034
186
SCREW BRACKET TO CROSS CONNECTION STRUT
193
NUT , Replaced By: N913004008001
193
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
LOOM TIE LINE MOUNTING
207
BRACKET FUEL LINE TO FRAME
214
BRACKET FUEL LINE TO FRAME
221
BRACKET FUEL LINE TO FRAME
228
SCREW , Replaced By: N304017008034
228
SCREW BRACKET TO CROSS CONNECTION STRUT
235
SCREW , Replaced By: N304017008018
235
SCREW SUPPORT TO FENDER
242
NUT , Replaced By: N913004008001
242
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
249
SCREW COVER PLATE TO BRACKET
256
NUT PUMP TO BRACKET
256
NUT , Replaced By: N913004006001
263
CLAMP LINE MOUNTING
270
SCREW COVER PLATE TO BRACKET
277
NUT PUMP TO BRACKET
277
NUT , Replaced By: N913004006001
284
CLAMP LINE MOUNTING
999
CORE BUNDLE SEALING1.0-2.5 MM2
999
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
999
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
999
PLUG SOCKET. CONTAKT SOCKET
999
PLUG SOCKET. PLUG HOUSING
999
SEAL RING
999
SUPPORT REAR
999
BRACKET , Replaced By: A6205240340
999
SUPPORT FUEL TANK TO FRAME
999
SUPPORT FUEL TANK TO FRAME
999
SUPPORT FUEL TANK TO FRAME
999
EXHAUST PIPE
999
SLEEVE , Replaced By: N915062008000
