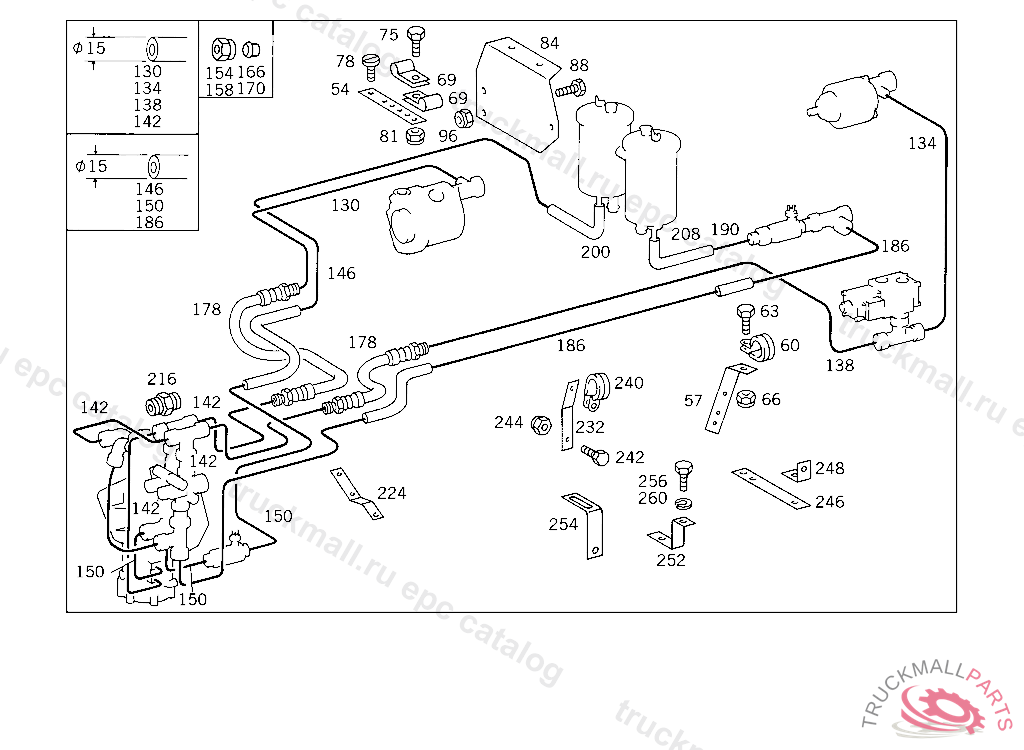

Поз.
Артикул
Описание
54
BRACKET , Replaced By: A3604293140
54
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
57
BRACKET RETURN LINE,5 537500
60
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
63
SCREW , Replaced By: N304017006016
63
SCREW PUMP TO BRACKET
66
NUT , Replaced By: N913004006001
66
NUT PUMP TO BRACKET
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP , Replaced By: A6739950001
69
CLAMP DELIVERY AND SUCTION LINES TO STEERING
69
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
CLAMP LINE MOUNTING
69
CLAMP FEED LINE TO THERMOSTAT
69
CLAMP LINE MOUNTING
75
SCREW , Replaced By: N304017006016
75
SCREW PUMP TO BRACKET
75
SCREW , Replaced By: N304017006020
75
SCREW LICENSE PLATE TO BRACKET
75
SCREW , Replaced By: N304017006016
78
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
81
NUT , Replaced By: N913004006001
81
NUT PUMP TO BRACKET
84
BRACKET OIL TANK
88
SCREW END PIECE TO EXHAUST PIPE M 10X25
96
NUT , Replaced By: N910113010000
96
NUT STRAP TO BRACKET
130
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
134
LINE (DELIVERY LINE) FROM HYDRAULIC PUMP TO HYDRAULIC LINE
134
LINE (DELIVERY LINE) FROM HYDRAULIC PUMP TO HYDRAULIC LINE
138
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
138
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
142
LINE RETURN, OIL HOSE CONNECTION, CIRCUITS I AND II
146
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
146
LINE , Replaced By: A0005516256
150
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
150
LINE , Replaced By: A0005516256
154
UNION NUT LINE CONNECTION
154
UNION NUT LINE CONNECTION, Replaced By: N000000006239
158
UNION NUT LINE CONNECTION
166
SEAL CONE LINE CONNECTION
166
GLAND , Replaced By: A0019901967
170
GLAND LINE CONNECTION
178
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
178
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
178
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
186
LINE RETURN, OIL HOSE CONNECTION, CIRCUITS I AND II
186
LINE RETURN, OIL HOSE CONNECTION, CIRCUITS I AND II,5 537500
186
LINE RETURN, OIL HOSE CONNECTION, CIRCUITS I AND II
190
LINE HIGH PRESSURE HOSE,LEFT
200
HOSE FROM RETURN LINE TO OIL TANK
200
HOSE FROM RETURN LINE TO OIL TANK
200
HOSE
208
HOSE FROM OIL TANK TO SUCTION LINE
216
FITTING PRESSURE LIMIT,CIRCUIT II
224
BRACKET POWER CYLINDER DELIVERY LINE
224
BRACKET POWER CYLINDER DELIVERY LINE
224
BRACKET POWER CYLINDER DELIVERY LINE
232
BRACKET DELIVERY AND SUCTION LINES
232
BRACKET , Replaced By: A3812711640
240
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
240
CLAMP DELIVERY AND SUCTION LINES TO FRAME
240
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
240
CLAMP BRAKE HOSE BRACKET
240
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
240
CLAMP LINE MOUNTING
242
SCREW , Replaced By: N304017006016
242
SCREW PUMP TO BRACKET
244
NUT , Replaced By: N913004006001
244
NUT PUMP TO BRACKET
246
BRACKET , Replaced By: A3184924841
246
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
246
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
248
ANGLE LINE MOUNTING
252
BRACKET LINE TO REAR TRANSMISSION CASE,5 537500
252
BRACKET LINE TO REAR TRANSMISSION CASE,5 537500
254
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
256
SCREW CENTRAL LOCK TO CAB M 10X16
256
SCREW CENTRAL LOCK TO CAB M 10X16
260
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
260
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
999
LINE , Replaced By: A6564602224
999
LINE , Replaced By: A0005516156
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE SUCTION LINE TO OIL PUMP
999
LINE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
999
BRACKET
999
BRACKET
999
BRACKET OIL LINE TO ENGINE
999
BRACKET OIL TANK
999
BRACKET OIL TANK, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET POWER CYLINDER DELIVERY LINE,5 525734
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II,5 569241
999
LINE FROM 2/2-WAY VALVE TO HOSE,CIRCUIT II,5 569241
999
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
999
LINE FROM 2/2-WAY VALVE TO HOSE,CIRCUIT II,5 569241
999
BRACKET OIL LINE ON ENGINE SIDE
999
HOSE , NOT USED
999
BRACKET SUCTION LINE TO TRANSMISSION
