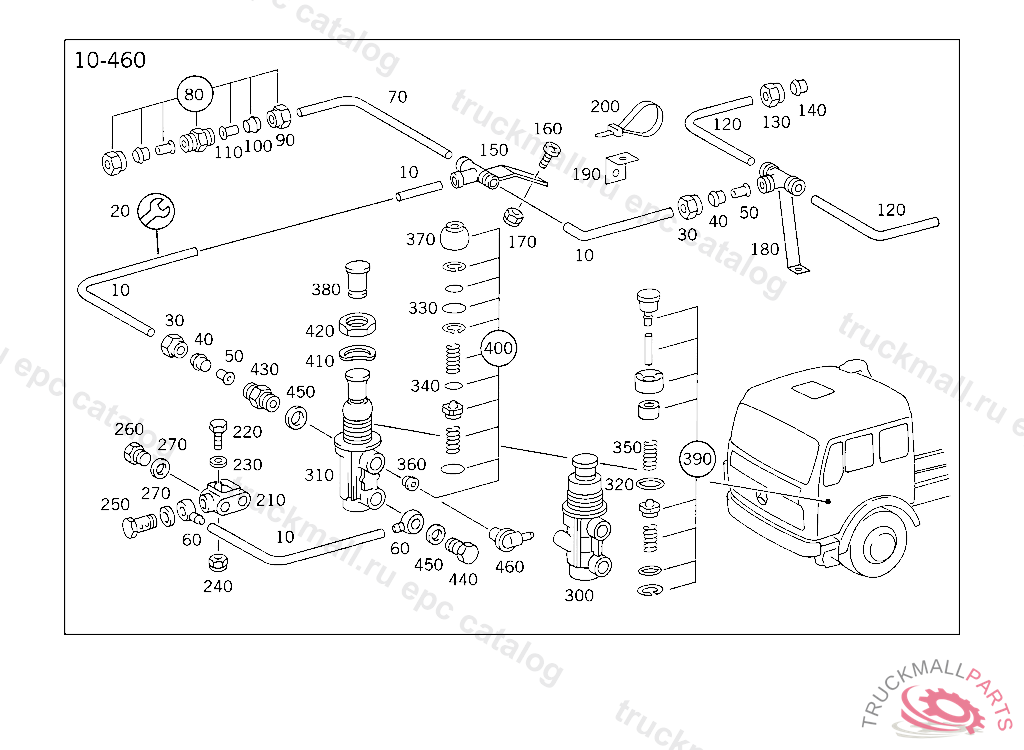

Поз.
Артикул
Описание
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
FITTING , Replaced By: A0029905971
20
FITTING (PARTS KIT),LINE RUPTURE
30
UNION NUT LINE CONNECTION
40
GLAND LINE CONNECTION
50
SLEEVE LINE CONNECTION
60
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
70
PLASTIC PIPE RISING PIPE 4X6 MM
70
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
80
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
90
UNION NUT
100
GLAND , Replaced By: A0019901667
100
SEAL CONE
110
SLEEVE LEAK LINE
120
LINE , Replaced By: A0004296201
120
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
130
UNION NUT
140
GLAND , Replaced By: A0019901667
140
SEAL CONE
150
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
160
SCREW , Replaced By: N000000001146
160
SCREW CLAMP MOUNTING M 6X16
170
NUT , Replaced By: N913004006001
170
NUT PUMP TO BRACKET
180
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
190
ANGLE LINE MOUNTING
200
LOOM TIE LINE MOUNTING 280 MM
200
LOOM TIE LINE MOUNTING
210
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
220
SCREW DISTRIBUTOR TO CAB
230
WASHER COMPRESSED AIR LINE TO BRACKET
230
WASHER , Replaced By: N009021006208
240
NUT PUMP TO BRACKET
240
NUT , Replaced By: N913004006001
250
HOLLOW SCREW HEATING CONNECTION
250
HOLLOW SCREW LINE CONNECTION
260
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
260
SCREW PLUG , Replaced By: N000908012009
270
SEAL RING LINE CONNECTION
300
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
310
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
310
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
320
SEAL RINGTO 000 434 21 01
330
SEAL RINGTO 000 434 23 01
340
SEAL RINGTO 000 434 23 01
350
SPRINGTO 000 434 21 01
360
STRAINERTO 000 434 21 01
370
CUP 3/2-WAY VALVE WABCO
380
HANDLETO 000 434 23 01
390
REPAIR KIT 3/2-WAY VALVE BOSCH
400
REPAIR KIT 3/2-WAY VALVE WABCO
410
SPRING WASHER AT CAB FLOOR
420
NUT SUCTION LINE TO OIL PUMP
430
FITTING LINE CONNECTION
430
FITTING LINE CONNECTION, Replaced By: N000000006446
440
HOLLOW SCREW HEATING CONNECTION
450
SEAL RING LINE CONNECTION
460
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
460
BREATHER , Replaced By: A3933280065
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
CLAMP LINE MOUNTING
999
CLAMP LINE MOUNTING
999
SCREW BRACKET TO ENGINE
999
SCREW , Replaced By: N304017006016
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SCREW PUMP TO BRACKET
999
NUT , Replaced By: N913002006009
999
NUT OIL TANK TO BRACKET
