Поз.
Артикул
Описание

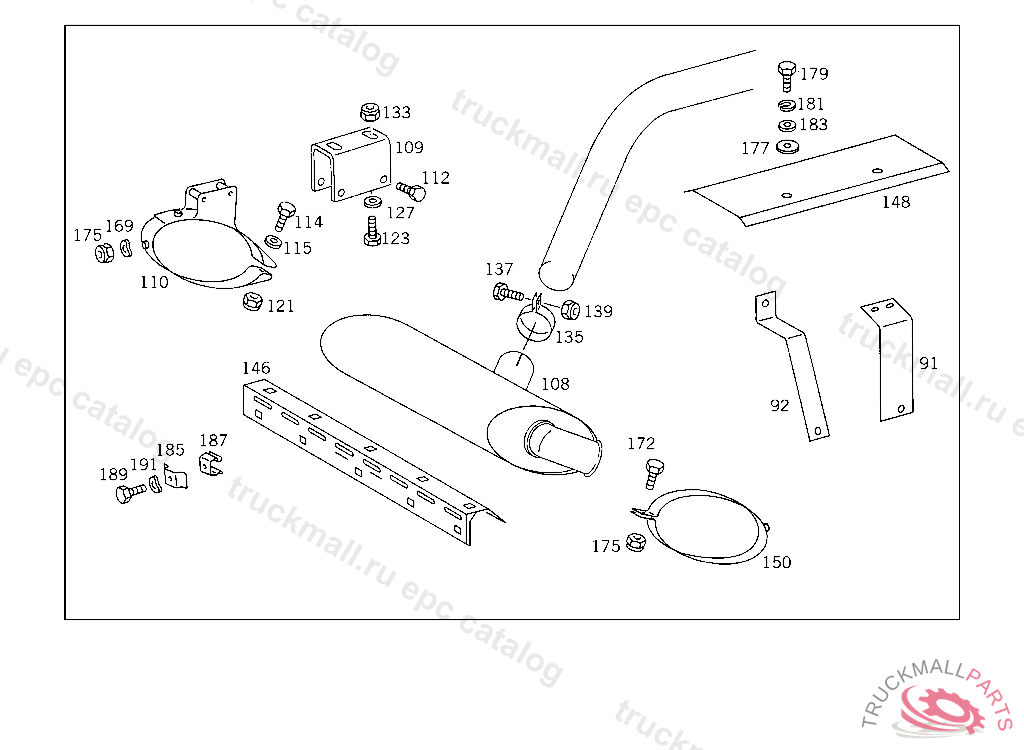

91
BRACKET FRONT EXHAUST PIPE REAR PART TO SUPPORT
92
BRACKET EXHAUST PIPE TO SIDE MEMBER
108
EXHAUST MUFFLER ,5 193595
109
BRACKET AT BRACKET
110
STRAP EXHAUST MUFFLER
112
SCREW SHIFTING ROD TO SHIFT LEVER
112
SCREW , Replaced By: N304017010055
112
SCREW , Replaced By: N304017010050
112
SCREW , Replaced By: N000933010192
114
SCREW EXHAUST PIPE TO BRACKET
115
WASHER RADIATOR TO RUBBER MOUNTING
121
NUT STRAP TO BRACKET
121
NUT , Replaced By: N910113010000
123
SCREW , Replaced By: N308676012015
123
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
123
SCREW LEFT AND RIGHT CONSOLES TO CAB
127
WASHER
133
NUT SUPPORT TO SIDE MEMBER
135
CLAMP EXHAUST PIPE
135
CLAMP , Replaced By: A6554920340
137
SCREW , Replaced By: N304017010002
137
SCREW BRACKET TO SIDE MEMBER
139
NUT STRAP TO BRACKET
139
NUT , Replaced By: N910113010000
146
PROTECTIVE PLATE EXHAUST MUFFLER
146
PROTECTIVE PLATE EXHAUST MUFFLER
148
PROTECTIVE PLATE TRANSMISSION COOLER HEAT SHIELD
150
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
169
SPRING WASHER , Replaced By: N000137008212
169
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
172
SCREW BRACKET TO SIDE MEMBER
172
CYLINDRICAL HEAD SCREW. SCREWTO 005 250 02 04, 03 04, 04 04
172
SCREW , Replaced By: N304017010002
175
NUT , Replaced By: N910113010000
175
NUT STRAP TO BRACKET
177
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
179
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
181
LOCK WASHERROCKINGER TYP 59 G140,59 G150
183
WASHER BRACKET TO FRAME
183
WASHER , Replaced By: N000125017016
185
BRACKET LICENSE PLATE
187
NUT RETAINER LICENSE PLATE TO BRACKET
187
NUT RETAINER , Replaced By: A0019906791
189
SCREW , Replaced By: N304017006020
189
SCREW LICENSE PLATE TO BRACKET
191
SPRING WASHER LICENSE PLATE TO BRACKET
999
PROTECTIVE PLATE RIGHT EXHAUST PIPE,5 294656
999
PROTECTIVE PLATE , Replaced By: A6484920030
999
PROTECTIVE PLATE EXHAUST PIPE
999
INTERMEDIATE PIECE BEHIND MANIFOLD,LEFT
999
INTERMEDIATE PIECE BEHIND MANIFOLD,LEFT
999
CLAMP , Replaced By: A6554920340
