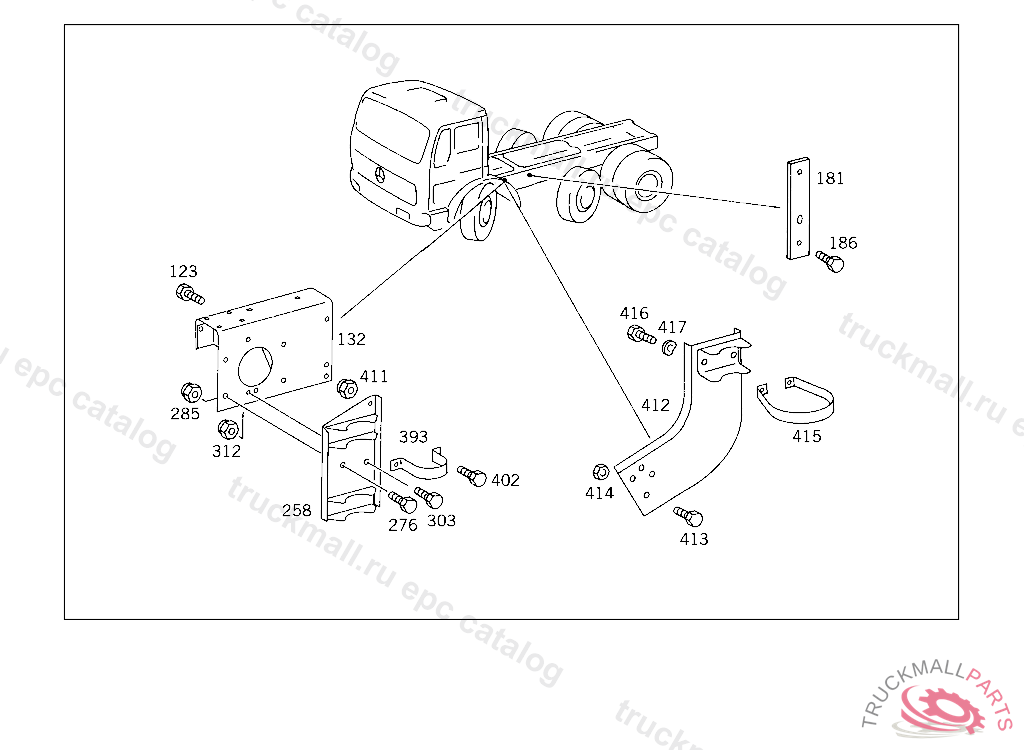

Поз.
Артикул
Описание
123
SCREW BRACKET TO FRAME SIDE MEMBER
123
SCREW SUPPORT TO FRAME M 14X32,5 129244
132
CONSOLE SUPPORT TO FRAME SIDE MEMBER
181
BASE SUPPORT TO SIDE MEMBER
186
SCREW BRACKET TO SIDE MEMBER
186
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
186
SCREW BRACKET TO CAB CONSOLE,K 035197
186
SCREW AT CROSS MEMBER M 14X110
186
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
186
SCREW , Replaced By: N308676014014
258
BRACKET EXHAUST PIPE TO CONSOLE
276
SCREW , Replaced By: N308676014020
276
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
285
NUT BRACKET TO SIDE MEMBER
285
NUT , Replaced By: N910113014001
303
SCREW END PIECE TO EXHAUST PIPE M 10X25
303
SCREW BRACKET TO SIDE MEMBER
312
NUT STRAP TO BRACKET
312
NUT , Replaced By: N910113010000
393
CLAMP EXHAUST PIPE TO BRACKET
393
CLAMP EXHAUST PIPE TO BRACKET
402
SCREW END PIECE TO EXHAUST PIPE M 10X25
411
NUT , Replaced By: N910113010000
411
NUT STRAP TO BRACKET
412
BRACKET BRACKET TO CAB MOUNTING CONSOLE
412
BRACKET BRACKET TO CAB MOUNTING CONSOLE
413
SCREW BRACKET TO CROSS CONNECTION STRUT
413
SCREW , Replaced By: N304017008034
414
NUT , Replaced By: N913004008001
414
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
415
CLAMP UPPER EXHAUST PIPE TO BRACKET
415
CLAMP UPPER EXHAUST PIPE TO BRACKET
416
SCREW , Replaced By: N304017008034
416
SCREW BRACKET TO CROSS CONNECTION STRUT
417
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
417
SPRING WASHER , Replaced By: N000137008212
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET PARTICLE FILTER
999
SPACER TUBE , Replaced By: A3140720253
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,5 193594
999
REAR EXHAUST PIPE (TAIL PIPE),5 129244
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,5 193594
999
BRACKET ,5 535799, Replaced By: A6204925341
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART, 015 5 006740 016 5 005657 017 5 007849 111 4 946456 112 4 947214 113 4 948529 116 4 965407 117 4 9463785 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART, 015 5 006740 016 5 005657 017 5 007849 111 4 946456 112 4 947214 113 4 948529 116 4 965407 117 4 9463785 129244
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,LEFT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 193595
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 193595
999
SUPPORT TAIL PIPE ON THE RIGHT
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET REAR EXHAUST PIPE
999
BRACKET , Replaced By: A6555240040
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE ,5 193595
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 193595
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE RIGHT,5 129244
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT,5 193595
999
BRACKET , Replaced By: A6524920741
999
BRACKET REAR EXHAUST PIPE TO DAMPING PAD,5 193595
999
REAR EXHAUST PIPE ,5 193594
999
BRACKET REAR EXHAUST PIPE,5 193595
999
REAR EXHAUST PIPE ,5 153311
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827815
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT,5 193595
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,5 193595
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,5 125493
999
BRACKET AT SUPPORT,5 125493
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT,5 149102
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
999
BRACKET REAR EXHAUST PIPE TO FRAME
999
BRACKET AT SIDE MEMBER,5 149102
999
BRACKET AT SIDE MEMBER,5 149102
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
999
BRACKET TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE , NOT USED
999
EXHAUST PIPE , NOT USED
999
BRACKET
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE TAIL PIPE,5 439561
999
BRACKET , Replaced By: A6244920741
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
FITTING , Replaced By: A6554900162
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG
999
REAR EXHAUST PIPE SHORT
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
