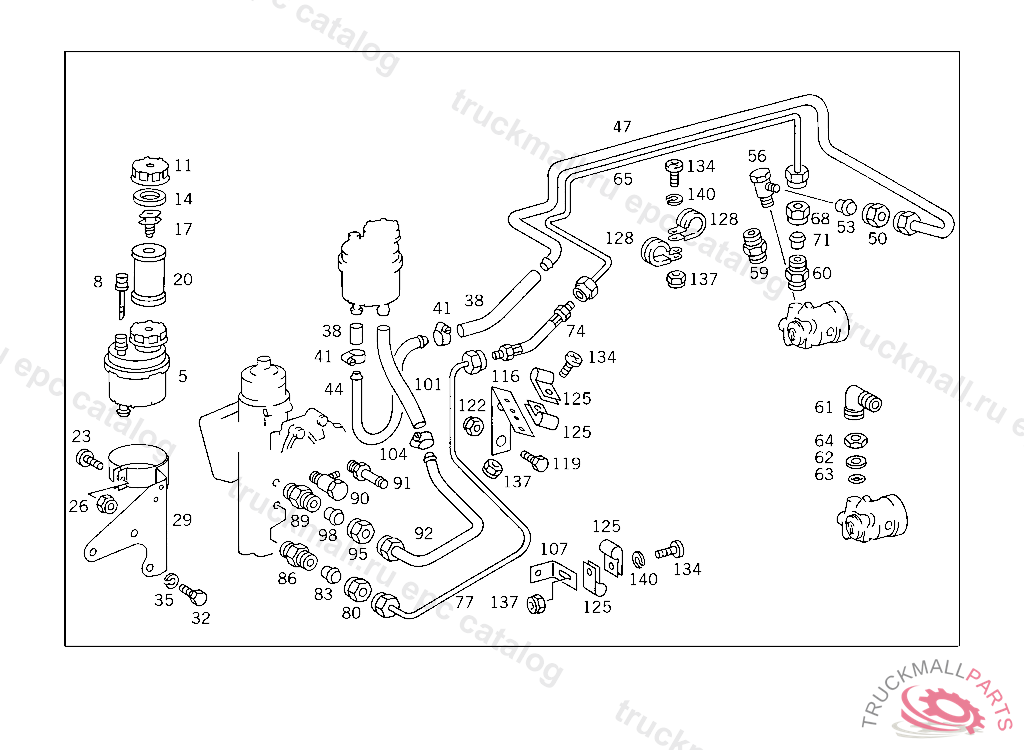

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET OIL TANK,5 593344
29
BRACKET OIL TANK,5 593344
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
44
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE FROM OIL TANK TO HOSE
44
LINE , NOT USED
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP 22X1,5 MM,5 360279
47
LINE ,5 913492 TO BE ADAPTED DURING ASSEMBLY LENGTH AVAILABLE: 3000 MM, Replaced By: A0004291601
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE RETURN LINE TO THERMOSTAT
50
UNION NUT LINE CONNECTION, Replaced By: N000000006243
50
NUT LINE CONNECTION
53
SEAL CONE LINE CONNECTION
53
GLAND , Replaced By: A0019901267
56
SCREW CONNECTION DELIVERY LINE TO PUMP
59
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
60
FITTING DELIVERY LINE TO PUMP
61
ELBOW FITTING SUCTION LINE TO OIL PUMP
62
THRUST RING SUCTION LINE TO OIL PUMP
63
SEALING CORD SUCTION LINE TO OIL PUMP
64
NUT SUCTION LINE TO OIL PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 033177
65
TUBE FROM HIGH PRESSURE HOSE TO STEERING
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE ,5 913492 TO BE ADAPTED DURING ASSEMBLY LENGTH AVAILABLE: 3000 MM, Replaced By: A0005516156
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
UNION NUT LINE CONNECTION
71
GLAND , Replaced By: A0019901967
71
SEAL CONE LINE CONNECTION
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
LINE , NOT USED
77
TUBE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
80
UNION NUT LINE CONNECTION
83
GLAND , Replaced By: A0019901967
83
SEAL CONE LINE CONNECTION
86
FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING , Replaced By: N003901015005
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE DELIVERY LINE TO STEERING
92
LINE , Replaced By: A0005516256
92
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE , NOT USED
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO FITTING AND TO OIL TANK
107
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP , Replaced By: A6739950001
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
134
SCREW CLAMP MOUNTING M 6X16
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
134
SCREW BRACKET MOUNTING M 6X20
134
SCREW , Replaced By: N000000001146
134
SCREW , Replaced By: N000000001422
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
140
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOSE LINE. OIL LINE FROM PUMP TO DELIVERY LINE,5 944106K 033177
999
PROTECTIVE CAP
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE , Replaced By: A0004291601
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
999
BRACKET OIL TANK
999
BRACKET OIL TANK
999
LINE RETURN, FROM STEERING TO OIL TANK
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CENTRAL LOCK TO CAB M 10X16
