Поз.
Артикул
Описание

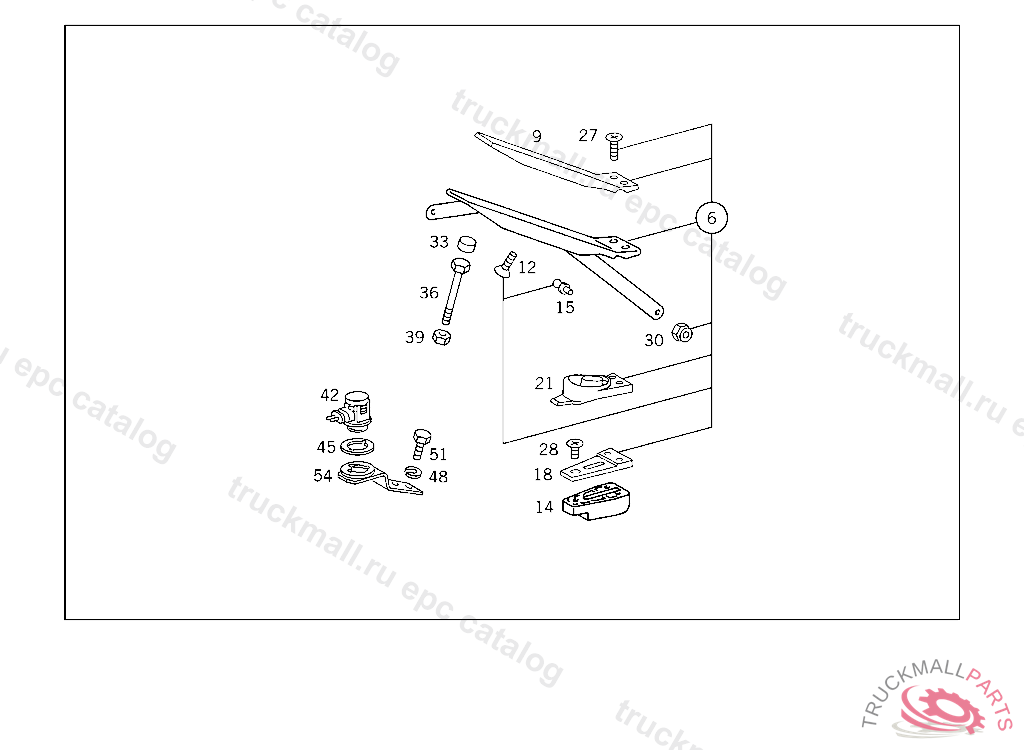

6
ACCELERATOR PEDAL PARTS KIT
6
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
6
ACCELERATOR PEDAL , Replaced By: A6583000004
9
PAD ACCELERATOR PEDAL
12
SCREW ACCELERATOR PEDAL
14
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
15
BALL PIVOT LOAD SENSOR
18
SHIM ACCELERATOR PEDAL
21
BOOT ACCELERATOR PEDAL
27
SCREW ACCELERATOR PEDAL TO CAB M 6X25
28
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
28
SCREW ACCELERATOR PEDAL TO CAB M 6X20
30
NUT PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
33
STOP ACCELERATOR PEDAL
36
SCREW VALVE TO BRACKET
36
SCREW VALVE TO BRACKET, Replaced By: N304014008002
39
NUT INTERMEDIATE SPEED STOP
42
KICK-DOWN SWITCH. SWITCH KICK-DOWN
45
SEAL RING KICK-DOWN SWITCH
48
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
51
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
51
SCREW , Replaced By: N304017008016
54
BRACKET KICK-DOWN SWITCH
54
BRACKET KICK-DOWN SWITCH
