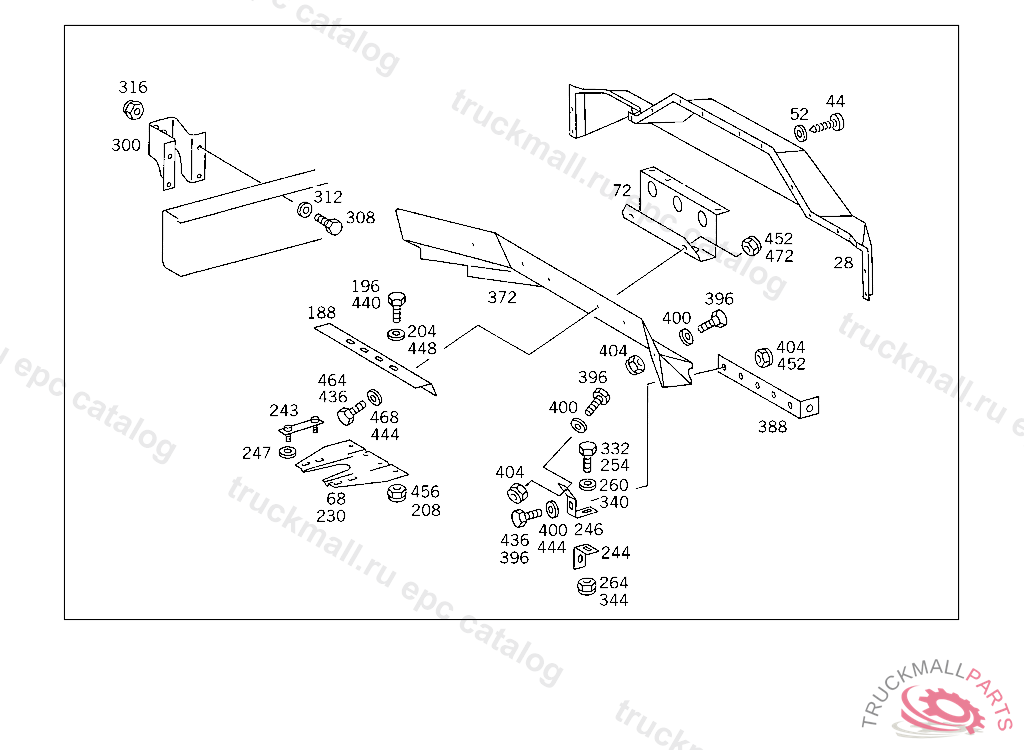

Поз.
Артикул
Описание
28
COVERING CHASSIS
28
COVERING CHASSIS
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
68
BRACKET COVERING
72
BRACKET CROSS CONNECTION
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
188
MOUNTING ANGLE COVERING
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N000125008443
204
WASHER , Replaced By: N009021008213
208
NUT , Replaced By: N913004008001
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
BRACKET CROSS CONNECTION
243
BRACKET STRUT TO CROSS MEMBER
244
BRACKET COVERING,5 736351
244
BRACKET COVERING
244
BRACKET , Replaced By: A6735460243
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6205240340
244
BRACKET COVERING
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
244
BRACKET LEFT
244
BRACKET FUEL LINES TO TRANSMISSION
246
BRACKET COVERING
247
WASHER STRUT TO CROSS MEMBER
247
NUT STRAP TO BRACKET
247
WASHER , Replaced By: N007349010007
247
WASHER , Replaced By: N009021010209
247
NUT , Replaced By: N910113010000
247
WASHER BRACKET TO COVERING
254
SCREW BRACKET TO SIDE MEMBER
254
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
254
SCREW , Replaced By: N304017010002
260
WASHER , Replaced By: N000125010532
260
WASHER RADIATOR TO RUBBER MOUNTING
260
WASHER BRACKET TO FRAME
264
NUT , Replaced By: N913004008001
264
NUT , Replaced By: N910113010000
264
NUT STRAP TO BRACKET
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
300
BRACKET MANUAL PUMP
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW EXHAUST PIPE TO BRACKET
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW , Replaced By: N304017010002
312
WASHER , Replaced By: N000125010532
312
WASHER RADIATOR TO RUBBER MOUNTING
316
NUT , Replaced By: N910113010000
316
NUT STRAP TO BRACKET
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
344
NUT , Replaced By: N910113010000
344
NUT STRAP TO BRACKET
372
COVERING CHASSIS
372
ANTINOISE CAPSULE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6175206524
372
COVERING , Replaced By: A6525202622
372
ANTINOISE CAPSULE CHASSIS, TO BE ADAPTED DURING ASSEMBLY
372
COVERING CHASSIS
372
COVERING CHASSIS
372
ANTINOISE CAPSULE CHASSIS
388
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
388
BRACKET , Replaced By: A3184923441
388
BRACKET , Replaced By: A3604292940
388
BRACKET , Replaced By: A3184923641
388
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
396
SCREW SUPPORT TO FENDER
396
SCREW , Replaced By: N304017008021
396
SCREW , Replaced By: N304017008018
396
SCREW , Replaced By: N304017008034
396
SCREW , Replaced By: N304017008016
396
SCREW , Replaced By: A0079900801
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW PIPE CLAMP
400
WASHER BRACKET TO LEFT SIDE MEMBER
400
WASHER EXHAUST MUFFLER TO STRAP
400
WASHER , Replaced By: N000125008443
400
WASHER , Replaced By: N009021008213
404
NUT , Replaced By: N913004008001
404
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
436
SCREW END PIECE TO EXHAUST PIPE M 10X25
436
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
440
SCREW PIPE CLAMP
440
SCREW , Replaced By: N304017008021
444
WASHER , Replaced By: N000125010532
444
WASHER RADIATOR TO RUBBER MOUNTING
448
WASHER EXHAUST MUFFLER TO STRAP
448
WASHER , Replaced By: N000125008443
452
NUT , Replaced By: N910113010000
452
NUT STRAP TO BRACKET
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT , Replaced By: N913004008001
456
NUT , Replaced By: N910113008007
456
NUT COVERING TO BRACKET
464
SCREW END PIECE TO EXHAUST PIPE M 10X25
468
WASHER , Replaced By: N000125010532
468
WASHER RADIATOR TO RUBBER MOUNTING
472
NUT , Replaced By: N910113010000
472
NUT STRAP TO BRACKET
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET LEFT
999
BRACKET RIGHT,5 385158
999
BRACKET COVERING
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS,5 736351
999
COVERING CHASSIS
999
BRACKET , Replaced By: A6555240040
999
BRACKET , Replaced By: A6555240040
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N009021008213
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
