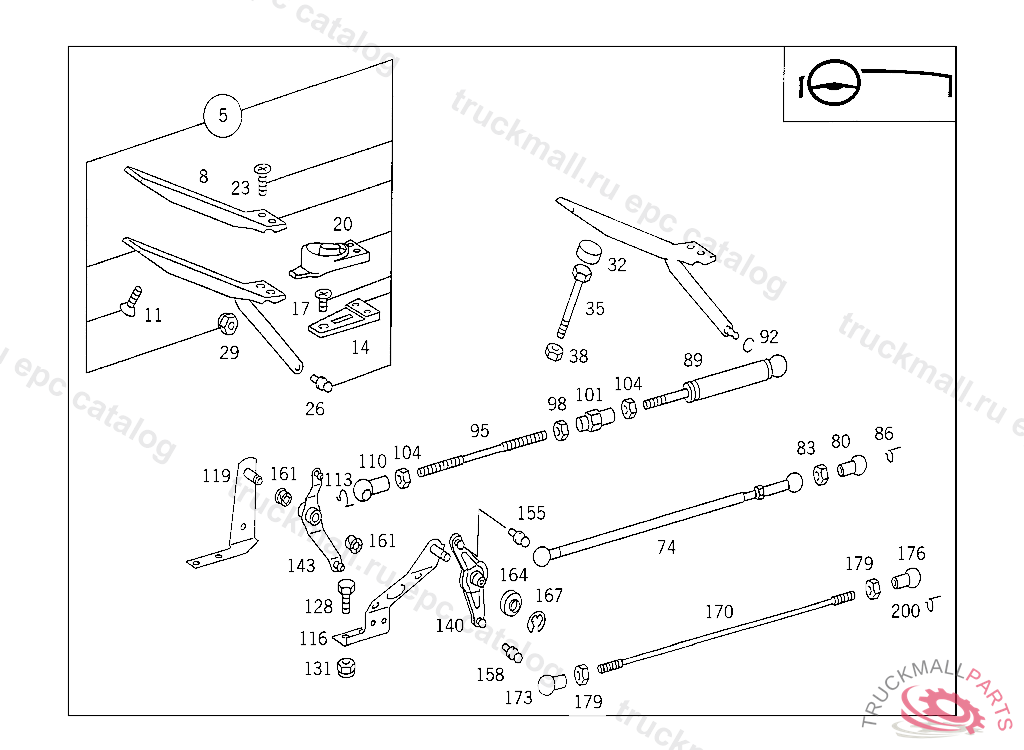

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
NUT
74
ROD LOAD SENSOR CONTROL
74
ROD , Replaced By: A6583001715
74
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
74
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
80
BALL SOCKET PULL ROD TO LEVER
83
NUT BALL PIVOT TO LEVER
86
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
92
SNAP RING SPRING-LOADED PUSH ROD
95
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
95
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
98
NUT L.H. THREAD
101
TURNBUCKLE TURNBUCKLE
104
NUT BALL PIVOT TO LEVER
110
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
113
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
116
BEARING BRACKET INTERMEDIATE BEARING
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
140
LEVER , Replaced By: A6153000628
140
LEVER INTERMEDIATE BEARING
155
BALL STUD. BALL PIVOT TOP B10X4,5 MM
158
BALL PIVOT BOTTOM B13X5 MM
164
COVERING INTERMEDIATE BEARING
167
LOCK PLATE INTERMEDIATE BEARING
170
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
173
BALL SOCKET ROD TO BALL PIVOT
176
BALL SOCKET ROD TO BALL PIVOT
179
NUT
200
SECURING CLIP. CIRCLIP
