Поз.
Артикул
Описание

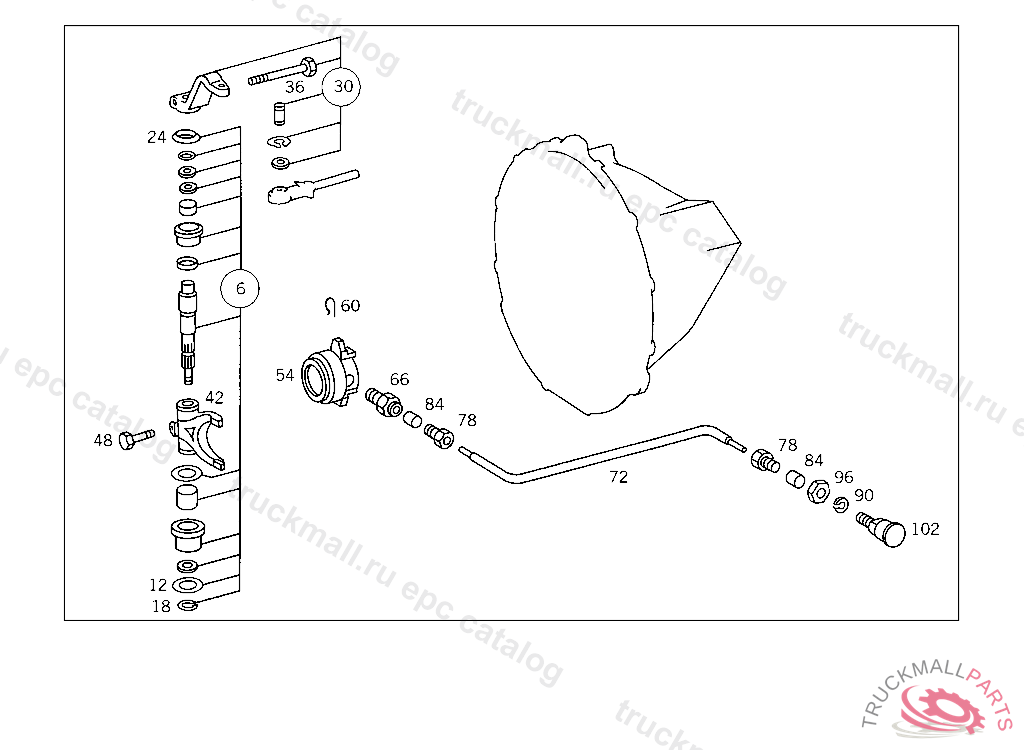

6
SHAFT (PARTS KIT),RELEASE SHAFT
12
SPACER WASHER RELEASE SHAFT,BOTTOM
18
LOCK RING RELEASE SHAFT,BOTTOM
24
COVER RELEASE SHAFT,TOP
30
LEVER (PARTS KIT),CLUTCH ACTUATION
36
SCREW RADIATOR M 10X45
36
SCREW PIPE ELBOW TO BRACKET M 10X50
36
SCREW , Replaced By: N304017010053
42
RELEASE LEVER CLUTCH ACTUATION
48
SCREW RELEASE LEVER TO SHAFT
48
SCREW , Replaced By: N304017012018
48
SCREW , Replaced By: N000933012102
54
RELEASE BEARING CLUTCH ACTUATION
54
RELEASE BEARING CLUTCH ACTUATION
60
SPRING RELEASE BEARING TO RELEASE LEVER
66
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
72
HOSE RELEASE COLLAR LUBRICATION 220 MM
78
UNION SCREW RELEASE COLLAR LUBRICATION
84
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
90
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
96
NUT RELEASE BEARING LUBRICATION
102
GREASE NIPPLE RELEASE COLLAR LUBRICATION
102
GREASE NIPPLE , Replaced By: A6209970088, +001A6209880135
999
SEAL RING CLUTCH ACTUATION
999
PIN CLUTCH ACTUATION
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
