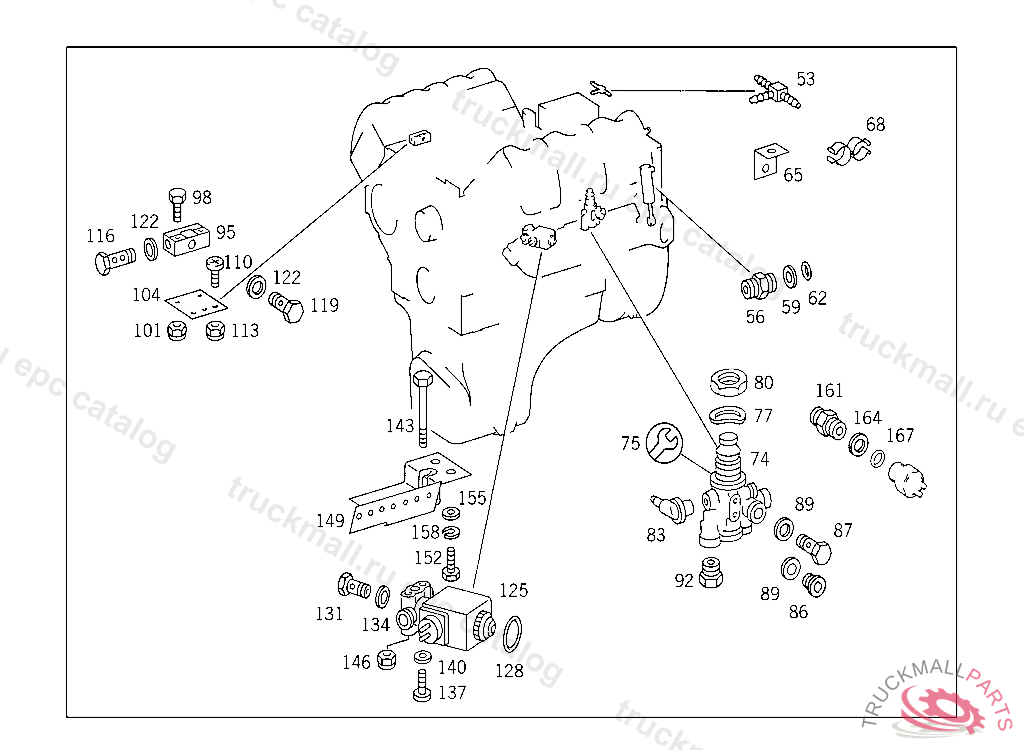

Поз.
Артикул
Описание
53
T-FITTING EXHAUST BRAKE LINE CONNECTION
56
FITTING DELIVERY LINE TO PUMP
59
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
75
REPAIR KIT 3/2-WAY VALVE WABCO
75
REPAIR KIT 3/2-WAY VALVE BOSCH
77
SPRING WASHER AT CAB FLOOR
80
NUT SUCTION LINE TO OIL PUMP
83
BREATHER , Replaced By: A3933280065
83
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
86
SCREW PLUG , Replaced By: N000908012009
86
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
89
SEAL RING LINE CONNECTION
92
SCREW. UNION SCREW , Replaced By: A0009973734
92
SCREW. UNION SCREW LINE CONNECTION
95
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
98
SCREW TWO-WAY VALVE TO BRACKET
101
NUT TWO-WAY VALVE TO BRACKET
104
BRACKET 3/2-WAY SOLENOID VALVE
110
SCREW OIL TANK TO BRACKET
113
NUT PUMP TO BRACKET
113
NUT , Replaced By: N913004006001
116
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
119
HOLLOW SCREW FUEL LINE TO FEED PUMP
119
HOLLOW SCREW , Replaced By: N915036010108
122
SEAL RING FUEL LINE TO FEED PUMP
125
VALVE (3/2-WAY SOLENOID VALVE) EKS
125
VALVE , Replaced By: A0049975736
128
SEAL RINGWABCO
131
HOLLOW SCREW HEATING CONNECTION
134
SEAL RING LINE CONNECTION
137
SCREW TO PLUG THE FREE CONNECTIONS
140
SEAL RINGBOSCH
143
SCREW VALVE TO BRACKET
143
SCREW VALVE TO BRACKET, Replaced By: N304014008002
146
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT , Replaced By: N913004008001
149
BRACKET 3/2-WAY SOLENOID VALVE
149
BRACKET 3/2-WAY SOLENOID VALVE
152
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
SCREW , Replaced By: N304017008016
155
WASHER EXHAUST MUFFLER TO STRAP
155
WASHER , Replaced By: N000125008443
158
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
161
FITTING CONNECTION TO STOP LIGHT SWITCH
161
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
164
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
167
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
PROTECTIVE CAPWABCO
999
ELBOW FITTING
999
GASKET KITKNORR
999
SEAL RINGBOSCH
999
SHIM 3/2-WAY SOLENOID VALVE
