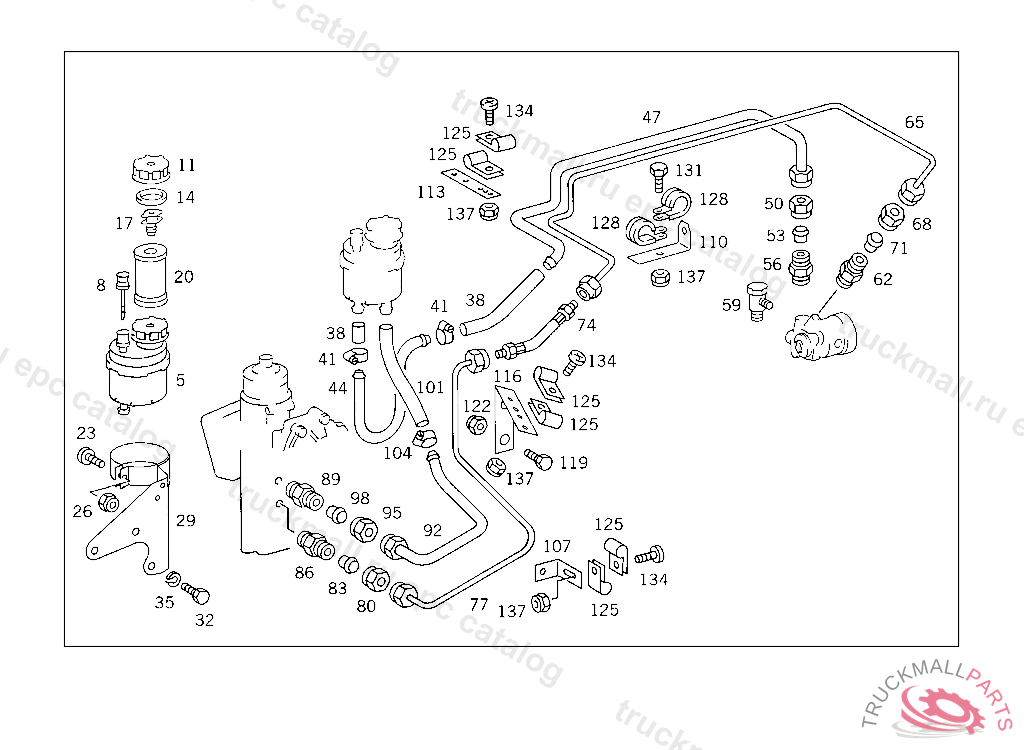

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT , Replaced By: N913002006009
26
NUT OIL TANK TO BRACKET
29
BRACKET OIL TANK
29
BRACKET OIL TANK
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW , Replaced By: N304017010028
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
44
LINE FROM OIL TANK TO HOSE
44
LINE , NOT USED
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE , Replaced By: A0004291601
44
LINE FROM OIL TANK TO HOSE
44
LINE FROM OIL TANK TO HOSE, NOT USED
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE , Replaced By: A0004291601
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE , Replaced By: A0004291601
50
NUT LINE CONNECTION
50
UNION NUT LINE CONNECTION, Replaced By: N000000006243
53
SEAL CONE LINE CONNECTION
53
GLAND , Replaced By: A0019901267
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
59
THREADED CONNECTION SUCTION LINE TO OIL PUMP
59
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
62
FITTING DELIVERY LINE TO PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
65
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 549076
65
LINE FROM POWER STEERING PUMP TO HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
TUBE FROM HIGH PRESSURE HOSE TO STEERING
65
TUBE FROM HIGH PRESSURE HOSE TO STEERING
68
UNION NUT LINE CONNECTION
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
71
SEAL CONE LINE CONNECTION
71
GLAND , Replaced By: A0019901967
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 549077
77
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
77
LINE , NOT USED
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
SEAL CONE LINE CONNECTION
83
GLAND , Replaced By: A0019901967
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
92
LINE FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE , Replaced By: A0005516256
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
101
HOSE RETURN, FROM STEERING TO OIL TANK
101
HOSE RETURN, FROM STEERING TO OIL TANK
104
CLAMP , Replaced By: N000000000667
104
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
107
BRACKET FUEL LINES TO TRANSMISSION
110
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
BRACKET , Replaced By: A3875015820
110
BRACKET , Replaced By: A3524290740
110
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
113
BRACKET , Replaced By: A3604293140
113
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
116
BRACKET , Replaced By: A6564660040
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
119
SCREW , Replaced By: N308676012026
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP , Replaced By: A6739950001
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
SCREW VALVE TO BRACKET,5 465030
134
SCREW , Replaced By: A0029903712
134
SCREW , Replaced By: N000000001149
134
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
134
SCREW , Replaced By: N000000001146
134
SCREW CLAMP MOUNTING M 6X16
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
999
PROTECTIVE CAP
999
FITTING RETURN LINE TO STEERING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW CONNECTION RETURN, FROM STEERING TO OIL TANK
