Поз.
Артикул
Описание

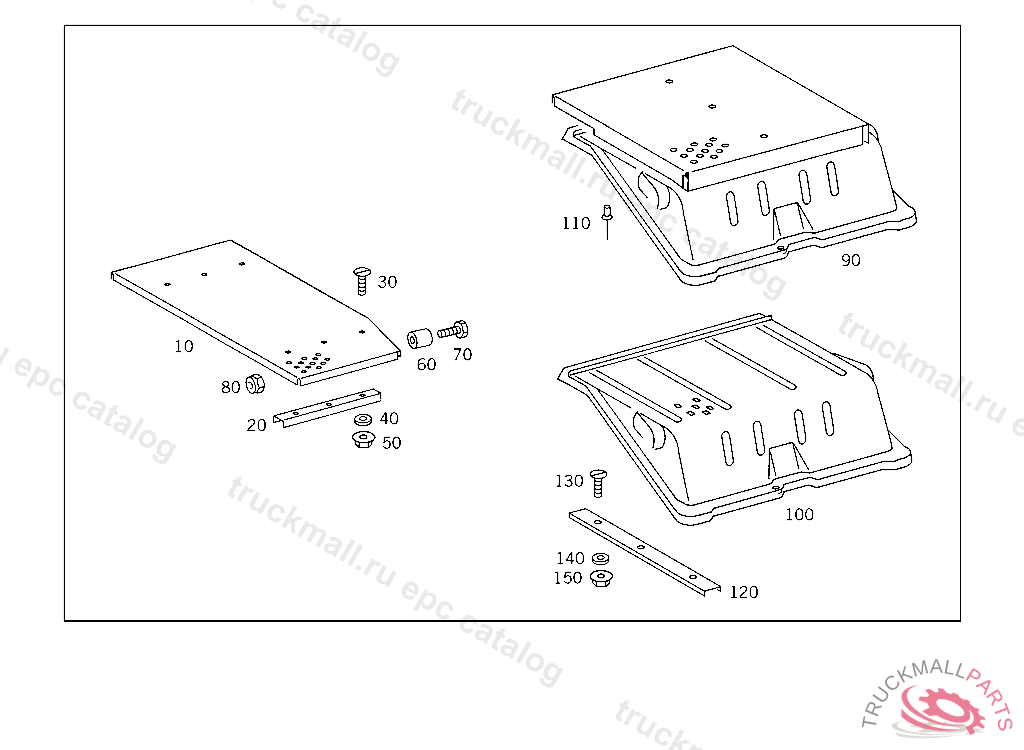

10
RUNNING BOARD
20
REINFORCEMENT
30
SCREW REINFORCEMENT TO ROCKER PANEL
40
WASHER , Replaced By: N000433010510
40
WASHER VIBRATION ABSORBER TO BRACKET
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
NUT , Replaced By: N913023010002
60
BUSHING
70
SCREW ROCKER PANEL TO STEP
80
NUT , Replaced By: N913002006009
80
NUT OIL TANK TO BRACKET
90
ANTINOISE CAPSULE APPARATUS SUPPORT
100
COVER BATTERY/APPARATUS SUPPORT
110
RIVET
120
REINFORCEMENT
130
SCREW REINFORCEMENT TO ROCKER PANEL
140
WASHER , Replaced By: N000433010510
140
WASHER VIBRATION ABSORBER TO BRACKET
150
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
150
NUT , Replaced By: N913023010002
999
RUNNING BOARD BATTERY/APPARATUS SUPPORT
999
BRACKET ROCKER PANEL
