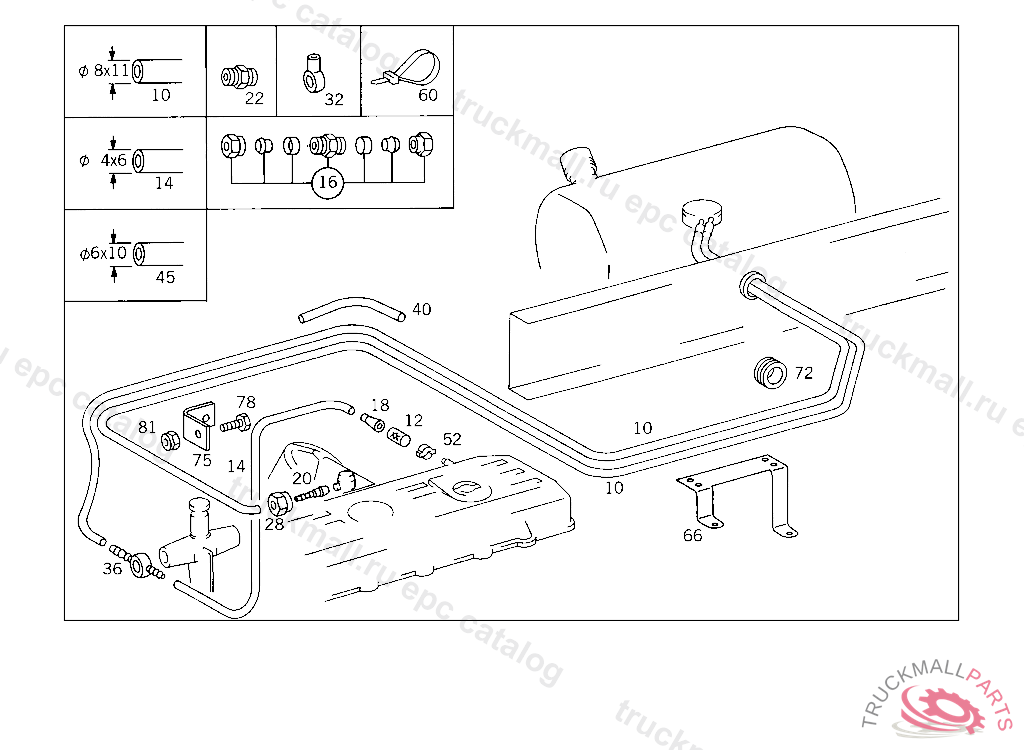

Поз.
Артикул
Описание
10
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
12
HOSE LEAK LINE, ORDER BY THE METER
14
PLASTIC PIPE RISING PIPE 4X6 MM
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
18
SLEEVE LEAK LINE
20
SLEEVE FEED
20
SLEEVE FEED
20
SLEEVE FEED
20
CONNECTOR RIGHT,177-LITER
20
CONNECTOR RIGHT,177-LITER
22
FITTING RETURN
22
FITTING RETURN
22
FITTING RETURN
28
UNION NUT RETURN
28
NUT. UNION NUT RETURN
28
NUT. UNION NUT RETURN
32
BANJO UNION , Replaced By: N000000000363
36
BANJO UNION FEED
40
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
45
HOSE LEAK LINE
45
HOSE LEAK LINE
52
CLIP LEAK LINE
52
CLIP LEAK LINE
60
LOOM TIE LINE MOUNTING
60
LOOM TIE LINE MOUNTING 280 MM
66
BRACKET LINE MOUNTING,5 268219
72
GROMMET LINE PASSAGE AT SIDE MEMBER
72
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
72
GROMMET LINE PASSAGE AT SIDE MEMBER
72
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
75
BRACKET FUEL LINE TO BELL HOUSING
75
BRACKET , Replaced By: A6454310740
78
SCREW BRACKET TO CROSS CONNECTION STRUT
78
SCREW , Replaced By: N304017008034
81
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
81
NUT , Replaced By: N913004008001
999
ELBOW FITTING RETURN
999
BANJO UNION FUEL LINE TO FUEL TANK
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
CLAMPING PIECE FUEL LINE TO BRACKET
999
BRACKET , Replaced By: A4404700105
999
LINE FEED LINE AND RETURN LINE
999
HOSE
