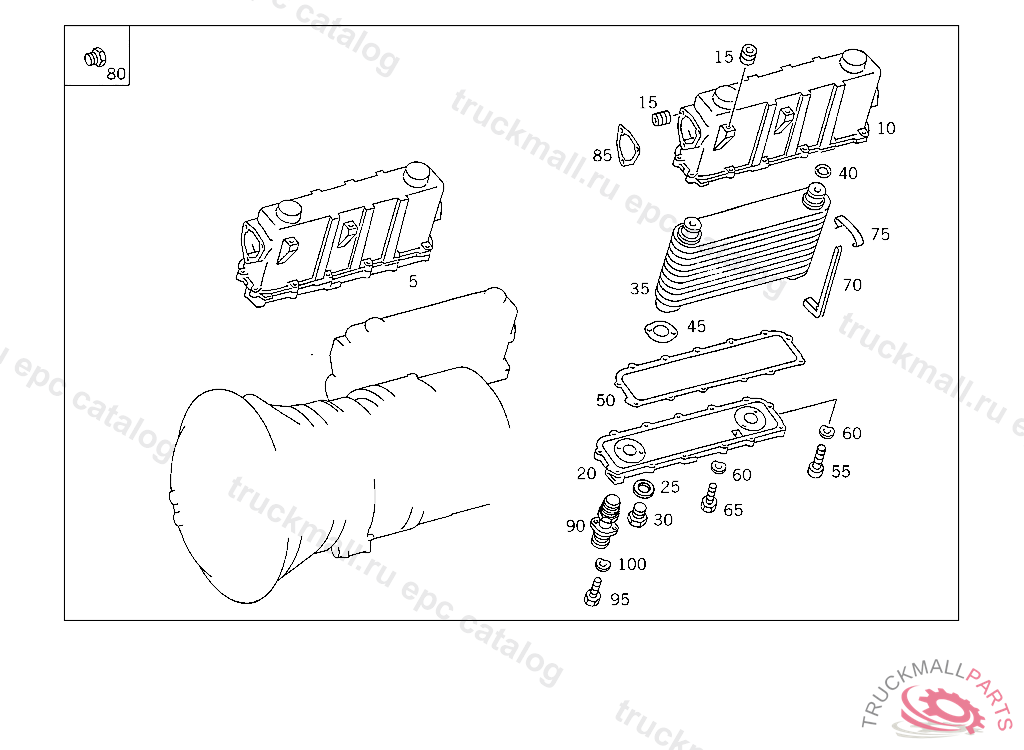

Поз.
Артикул
Описание
5
OIL COOLER RETARDER
10
HOUSING OIL COOLER
15
THREADED INSERTM 8X22
20
COVER
25
SEAL RING
30
SCREW PLUG
35
OIL COOLER
35
OIL COOLER
40
SEAL RING
45
GASKET
50
GASKET OIL COOLER TO OIL COOLER HOUSING
55
HEXALOBULAR BOLT. SCREWM 8X45
55
SCREW , Replaced By: N000000001448
60
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
60
SPRING WASHER , Replaced By: N000137008212
65
SCREWM 8X40
70
SEALING STRIP COVER TO OIL COOLER HOUSING
75
SPRING COVER TO OIL COOLER HOUSING
80
SCREW PLUGROCKINGER,TYP 59 U150
80
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
85
GASKET COOLING WATER LINE TO OIL COOLER
90
LINE OIL LINE TO RADIATOR
95
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
95
SCREW , Replaced By: N304017008027
100
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
100
SPRING WASHER , Replaced By: N000137008212
999
SEAL RING LINE TO OIL COOLER AND TO RETARDER
999
PIPE ELBOW COOLING WATER LINE
999
PIPE ELBOW COOLING WATER LINE
