Mercedes N910113014001 - АВТОЗАПЧАСТЬ

2422 653.076

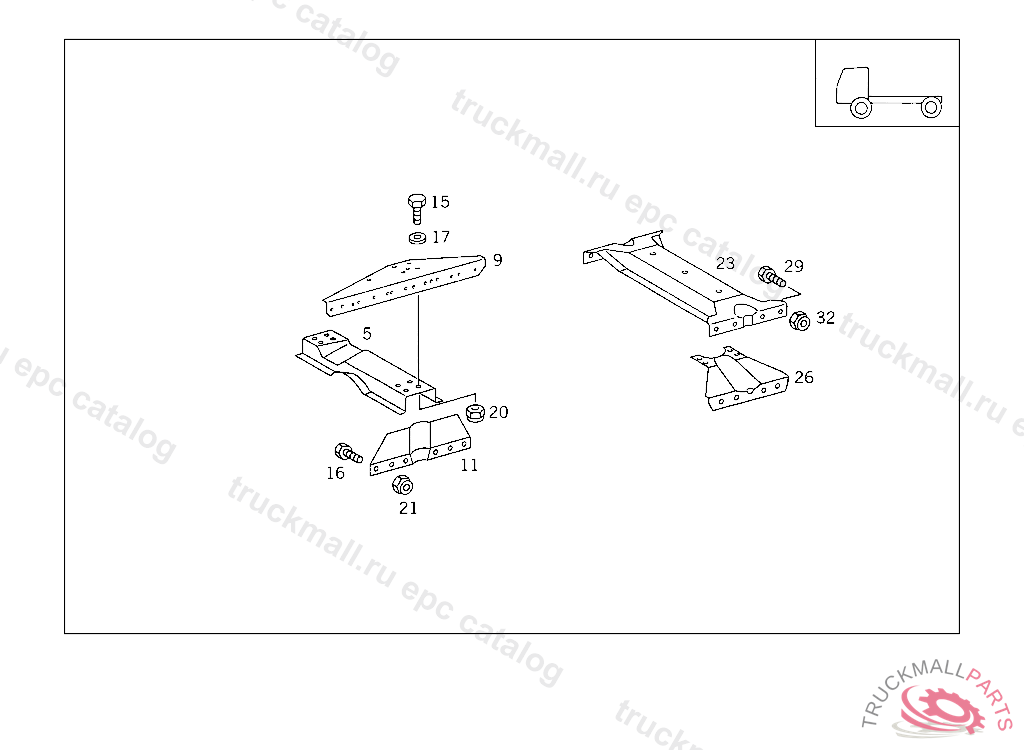

24 ENGINE SUSPENSION - 060 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
5
A3813120015
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3, TO BE ADAPTED DURING ASSEMBLY
9
A6523120987
GUSSET PLATE TOP LEFT, TO BE ADAPTED DURING ASSEMBLY
9
A6523121087
GUSSET PLATE TOP RIGHT, TO BE ADAPTED DURING ASSEMBLY
11
A6523120161
STRUT BOTTOM LEFT
11
A6523120261
STRUT BOTTOM RIGHT
15
A0029902604
SCREW STRUT TO CONSOLE
15
A0029902604
SCREW STRUT TO CONSOLE
16
N000961014027
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
17
A3859901040
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
20
A0009906750
NUT STRAP TO SUPPORT
20
A0009906750
NUT STRAP TO SUPPORT
21
N913004014002
NUT , Replaced By: N910113014001
21
N910113014001
NUT BRACKET TO SIDE MEMBER
