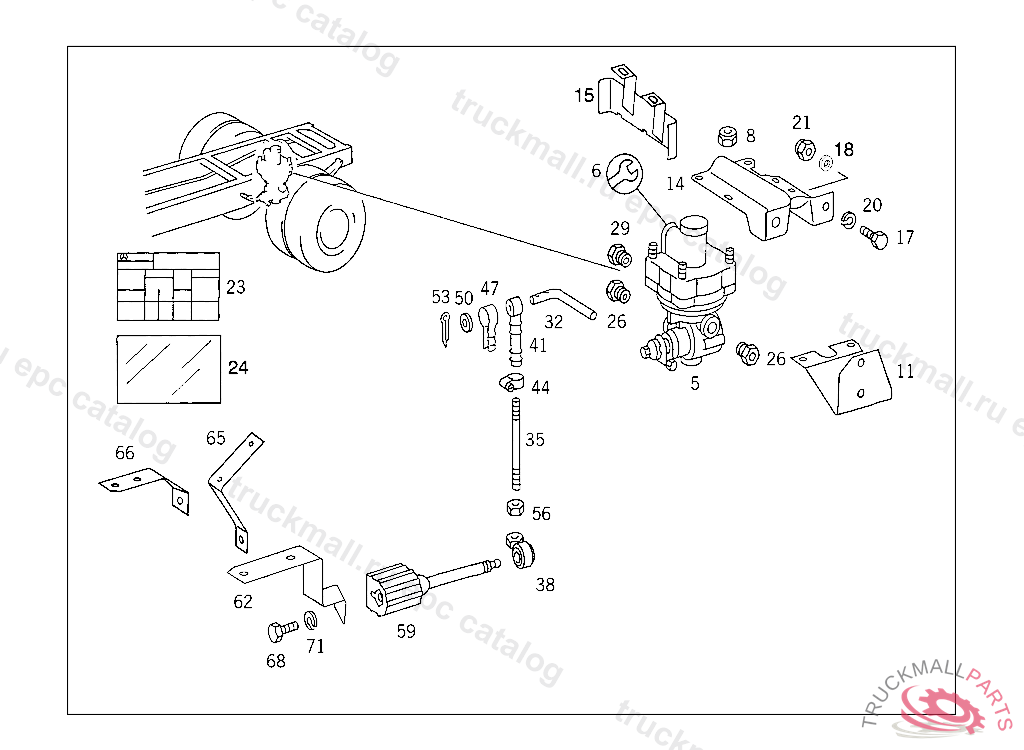

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
6
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
6
REPAIR KIT BRAKE POWER REGULATOR WABCO
6
REPAIR KIT BRAKE POWER REGULATOR BOSCH
6
REPAIR KIT BRAKE POWER REGULATOR KNORR
8
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
8
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
8
NUT , Replaced By: N913004008001
14
BRACKET BRAKE POWER REGULATOR
14
BRACKET BRAKE POWER REGULATOR,K 186394
15
BRACKET BRAKE POWER REGULATOR,K 186394
17
SCREW BRACKET TO SIDE MEMBER
17
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
17
SCREW , Replaced By: N304017010002
17
SCREW , Replaced By: N308676012031
17
SCREW , Replaced By: N000961016097
17
SCREW , Replaced By: N308676016005
17
SCREW , Replaced By: N308676012011
17
SCREW REAR EXHAUST PIPE TO MUFFLER
17
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
18
WASHER , Replaced By: N000125010532
18
WASHER , Replaced By: N007349010007
18
WASHER RADIATOR TO RUBBER MOUNTING
18
WASHER STRUT TO CROSS MEMBER
18
WASHER BRACKET TO CROSS MEMBER
21
NUT , Replaced By: N910113010000
21
NUT STRAP TO BRACKET
23
GUIDE SIGN LOAD-DEPENDING BRAKE
24
ADHESIVE FOIL GUIDE SIGN
26
SCREW. UNION SCREW LINE CONNECTION
29
SCREW. UNION SCREW LINE CONNECTION
29
SCREW. UNION SCREW , Replaced By: A0009973734
32
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
35
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
38
BALL SOCKET PULL ROD
41
CONNECTOR PULL ROD TO LEVER
44
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
44
CLAMP , Replaced By: N000000000665
47
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
53
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
56
NUT
59
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,5 557360K 049885
59
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 186394
65
BRACKET METAL SPRING BELLOWS,5 356525
68
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
71
LOCK WASHER FITTING TO BRACKET
