Поз.
Артикул
Описание

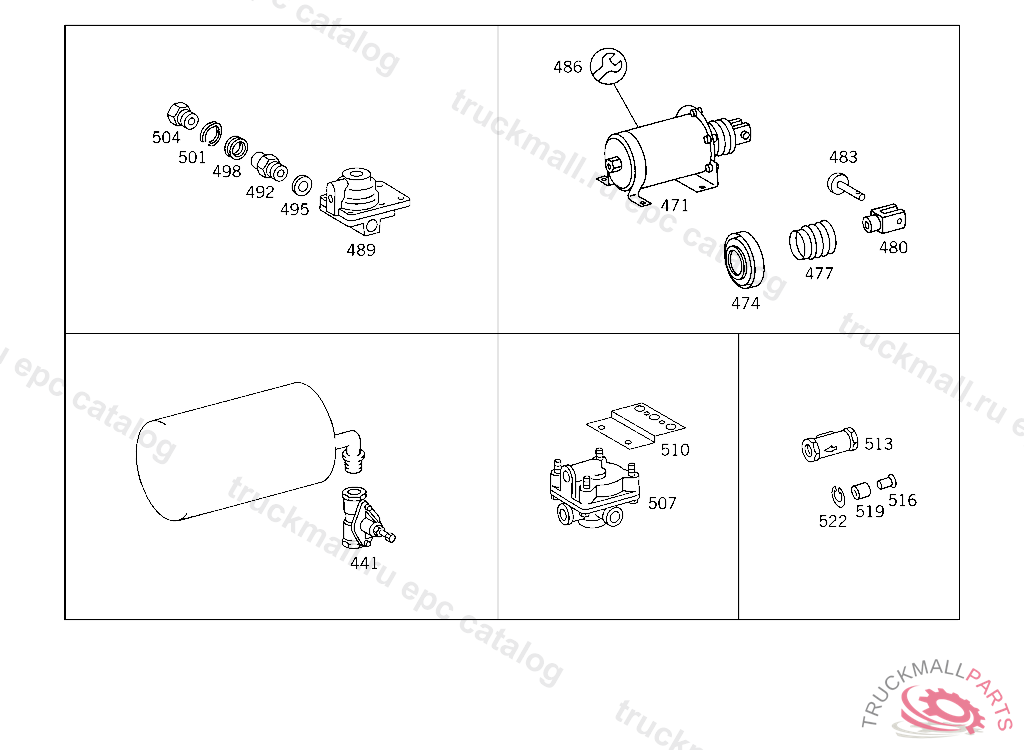

441
VALVE (OVERFLOW VALVE) GRAU
441
VALVE (OVERFLOW VALVE) WABCO
471
CYLINDER STEERED AXLE
474
CUP
477
PROTECTIVE CAP
480
YOKE
483
PIN
486
REPAIR KIT CYLINDER
489
VALVE (REDUCTION VALVE)
492
FITTING LINE CONNECTION
495
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
498
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
501
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
504
SCREW. UNION SCREW LINE CONNECTION
507
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
507
VALVE FRONT AXLE II RELAY VALVE "WABCO"
507
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
510
BRACKET FRONT AXLE REGULATING SOLENOID VALVE
513
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
516
VALVE SEAT RINGWABCO,5 433388
519
BUSHINGWABCO,5 433388
522
LOCK RINGWABCO,5 433388
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
DISTRIBUTOR
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
TANK RECESS. T-FITTING LINE CONNECTION
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
999
LEVER SENSOR
999
PROTECTIVE PLATE AIR SPRING VALVE TO BRACKET
999
LEVER , Replaced By: A9453200627
999
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
