Поз.
Артикул
Описание

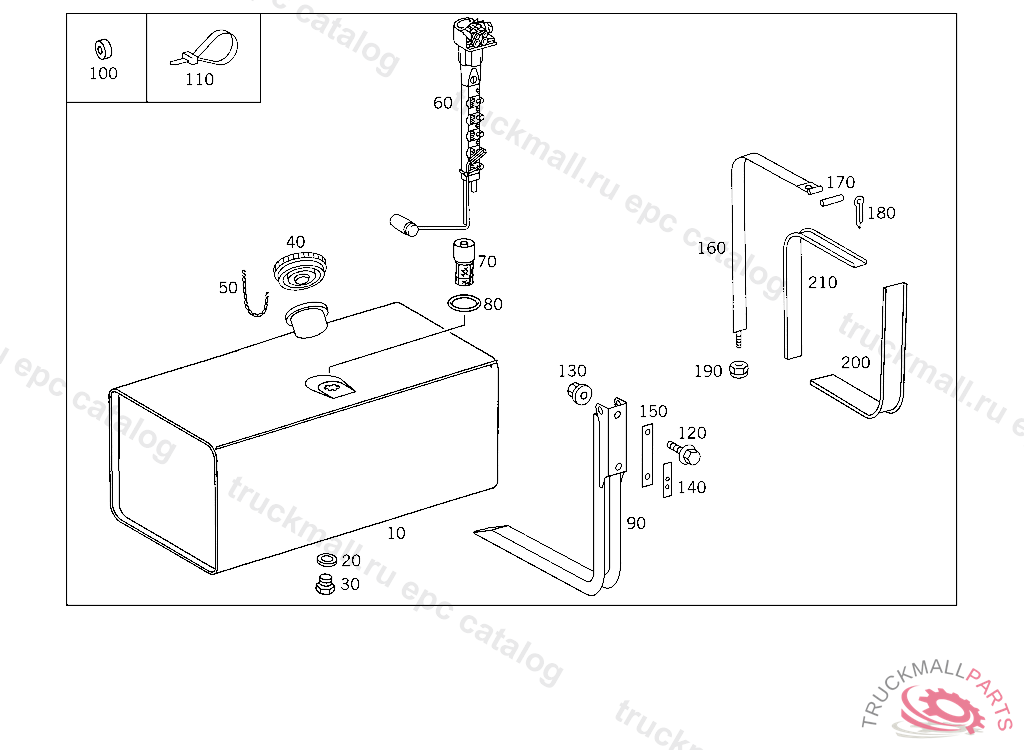

10
FUEL TANK ALUMINUM 400 L
20
SEALING RING. SEAL RING FUEL TANK
30
SCREW PLUG FUEL DISCHARGE
40
FILLER CAP
50
CHAIN FILLER CAP
60
SENDER UNIT FUEL GAUGE
70
FUEL STRAINER FUEL TANK,K 169123
80
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
90
SUPPORT FRONT FUEL TANK
90
SUPPORT REAR FUEL TANK
100
WASHER BRACKET TO LEFT SIDE MEMBER
100
WASHER , Replaced By: A3609902340
110
LOOM TIE LINE MOUNTING
120
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
120
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
120
SCREW SUPPORT TO SIDE MEMBER M14X40
120
SCREW , Replaced By: N910105014010
130
NUT PARTICLE FILTER M14
140
BASE FROM RUBBER HOSE TO FUEL PUMP
150
SHIM SUPPORT TO SIDE MEMBER
160
STRAP FUEL TANK TO CONSOLE
170
PIN STRAP TO SUPPORT
170
PIN , Replaced By: A9444750074
170
PIN , Replaced By: A9414750074, +002N912007016001
180
COTTER PIN STRAP TO SUPPORT
180
CLIP RESERVOIR TO CAB FRONT PANEL
190
NUT STRAP TO SUPPORT
200
PAD , Replaced By: A9414751620
210
PAD , Replaced By: A9414751720
210
PAD BRAKE ANCHOR 53 MM
999
WASHER25MM
