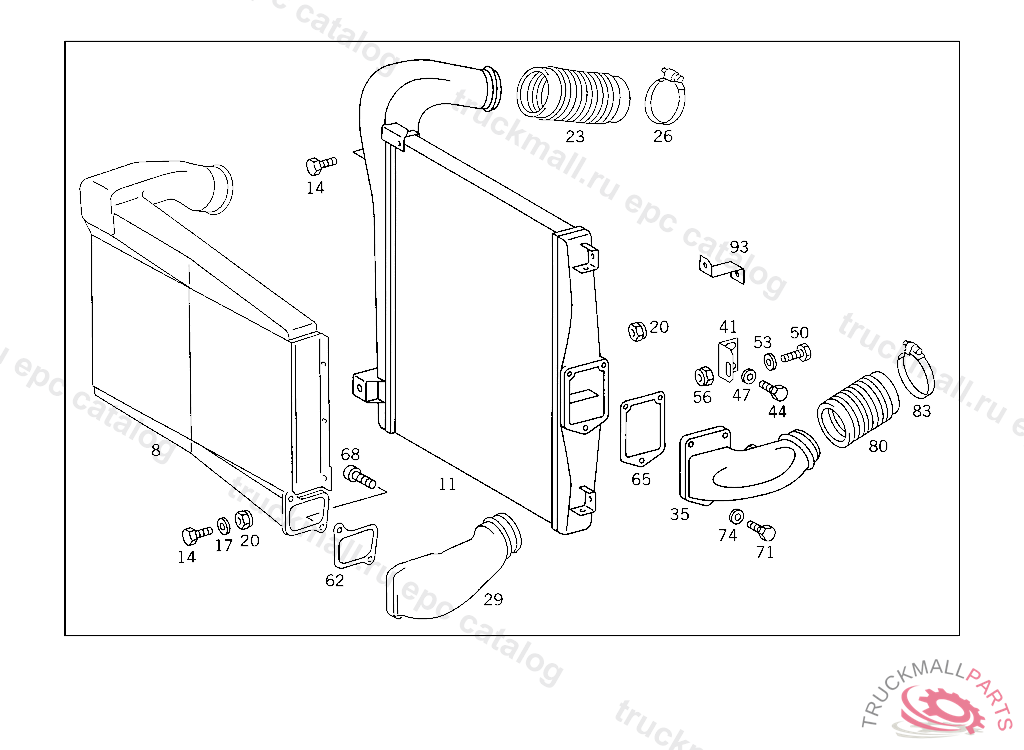

Поз.
Артикул
Описание
8
RADIATOR (CHARGING AIR INTERCOOLER)
11
RADIATOR (CHARGING AIR INTERCOOLER)
14
SCREW LICENSE PLATE TO BRACKET
14
SCREW PIPE CLAMP
14
SCREW PUMP TO BRACKET
14
SCREW , Replaced By: N304017008021
14
SCREW , Replaced By: N304017006016
14
SCREW , Replaced By: N304017006020
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
WASHER COMPRESSED AIR LINE TO BRACKET
20
NUT PUMP TO BRACKET
20
NUT , Replaced By: N913004006001
23
HOSE , Replaced By: A0020945282
23
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
23
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
26
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
26
CLAMP , Replaced By: A0059970690
29
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
29
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
35
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
41
BRACKET PIPE BEND TO RADIATOR
44
SCREW COVER PLATE TO COVER PLATE M 6 X 12
44
SCREW , Replaced By: N304017006018
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
WASHER COMPRESSED AIR LINE TO BRACKET
50
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
50
SCREW , Replaced By: N304017008027
53
WASHER , Replaced By: N000125008443
53
WASHER EXHAUST MUFFLER TO STRAP
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
GASKET PIPE ELBOW
62
GASKET , Replaced By: A6555280080
65
GASKET , Replaced By: A6255280180
65
GASKET PIPE TO CHARGING AIR INTERCOOLER
68
SCREW PIPE TO CHARGING AIR INTERCOOLER
68
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
71
SCREW BRACKET TO SIDE MEMBER M10X38
74
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
80
CHARGE AIR HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
80
HOSE , Replaced By: A0020945482
80
HOSE , Replaced By: A0010947982
83
CLAMP AIR INTAKE PIPE TO ENGINE "100"
83
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
93
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
