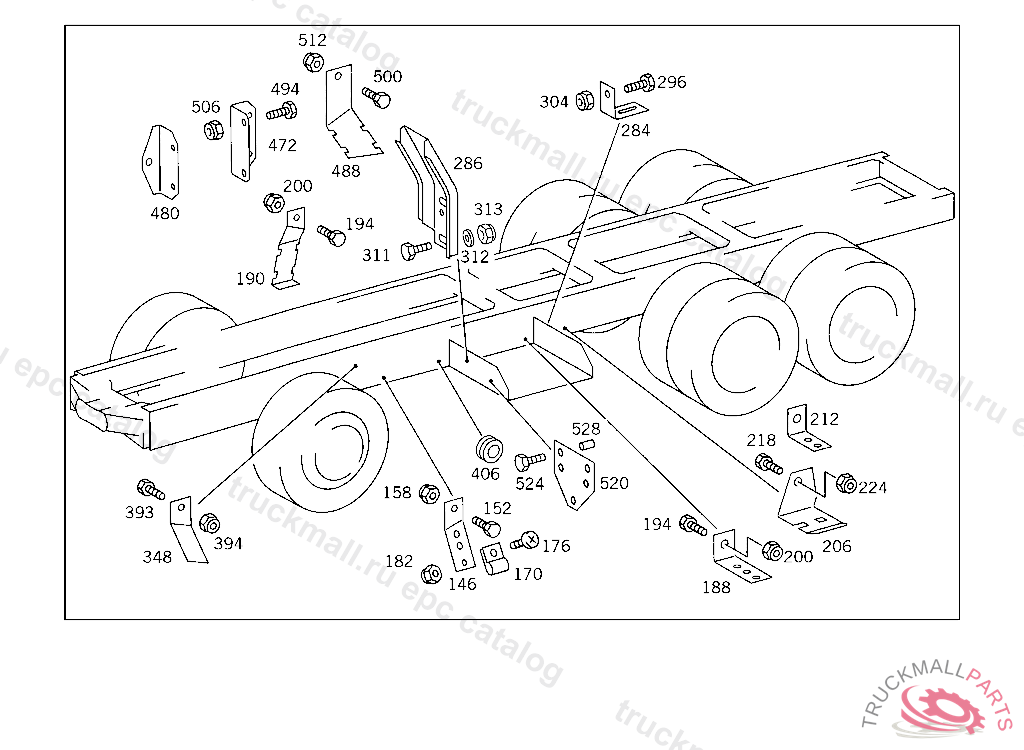

Поз.
Артикул
Описание
146
BRACKET AT CAB SIDE MEMBER
152
SCREW , Replaced By: N308676012026
152
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
158
NUT SUPPORT TO SIDE MEMBER
170
CLAMP DELIVERY AND SUCTION LINES TO STEERING
170
CLAMP LINE MOUNTING
170
CLAMP , Replaced By: A6739950001
176
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
176
SCREW CLAMP TO BRACKET
182
NUT PUMP TO BRACKET
182
NUT , Replaced By: N913004006001
188
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
190
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
194
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
194
SCREW LINE MOUNTING M 10X20
194
SCREW , Replaced By: N304017010028
200
NUT , Replaced By: N910113010000
200
NUT EXHAUST PIPE TO SIDE MEMBER
200
NUT STRAP TO BRACKET
206
BRACKET LINE MOUNTING
212
BRACKET FUEL LINES TO TRANSMISSION
212
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
212
BRACKET COVERING
218
SCREW , Replaced By: N304017010028
218
WASHER , Replaced By: N000125008443
218
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
218
SCREW END PIECE TO EXHAUST PIPE M 10X25
218
WASHER EXHAUST MUFFLER TO STRAP
218
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
224
NUT STRAP TO BRACKET
224
NUT , Replaced By: N910113010000
284
BRACKET , Replaced By: A6205240340
284
BRACKET FUEL LINES TO TRANSMISSION
286
SUPPORT AT CROSS MEMBER,5 317649
296
SCREW BRACKET TO SIDE MEMBER
296
SCREW END PIECE TO EXHAUST PIPE M 10X25
296
SCREW REAR EXHAUST PIPE TO MUFFLER
296
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
296
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
296
SCREW , Replaced By: N910105010009
296
SCREW , Replaced By: N304017010002
304
NUT , Replaced By: N910113010000
304
NUT STRAP TO BRACKET
304
NUT EXHAUST PIPE TO SIDE MEMBER
311
SCREW BRACKET TO SIDE MEMBER,K 168169
311
SCREW , Replaced By: A0089907401
312
WASHER EXHAUST MUFFLER TO STRAP
312
WASHER , Replaced By: N000125008443
313
NUT , Replaced By: N913004008001
313
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
348
BRACKET OIL LINE MOUNTING
348
BRACKET , Replaced By: A3464296040
393
SCREW END PIECE TO EXHAUST PIPE M 10X25
394
NUT STRAP TO BRACKET
394
NUT , Replaced By: N910113010000
406
GROMMET CABLE HARNESS THRU SIDE MEMBER
406
GROMMET LINE PASSAGE AT SIDE MEMBER
406
GROMMET CABLE HARNESS THRU SIDE MEMBER
406
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
472
BRACKET BRACKET TO SPARE WHEEL CARRIER
480
BRACKET BRACKET TO SPARE WHEEL CARRIER
480
BRACKET , Replaced By: A6554314840
488
BRACKET BRACKET TO SPARE WHEEL CARRIER
494
SCREW END PIECE TO EXHAUST PIPE M 10X25
500
SCREW , Replaced By: N304017008021
500
SCREW PIPE CLAMP
506
NUT , Replaced By: N910113010000
506
NUT STRAP TO BRACKET
512
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
512
NUT , Replaced By: N913004008001
520
BRACKET AT APPARATUS SUPPORT
524
SCREW REAR EXHAUST PIPE TO MUFFLER
528
SPACER TUBE BRACKET TO APPARATUS SUPPORT
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BASE AIR RESERVOIR STRAP
999
BRACKET AIR RESERVOIR TO CROSS MEMBER
999
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
999
BRACKET AT APPARATUS SUPPORT
999
BRACKET FUEL LINE TO BELL HOUSING
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
BRACKET AIR DEHYDRATOR,5 433280
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
999
WASHER , Replaced By: A3609902340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
999
RESERVOIR5.6L,114,3 MM,10 BAR
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
