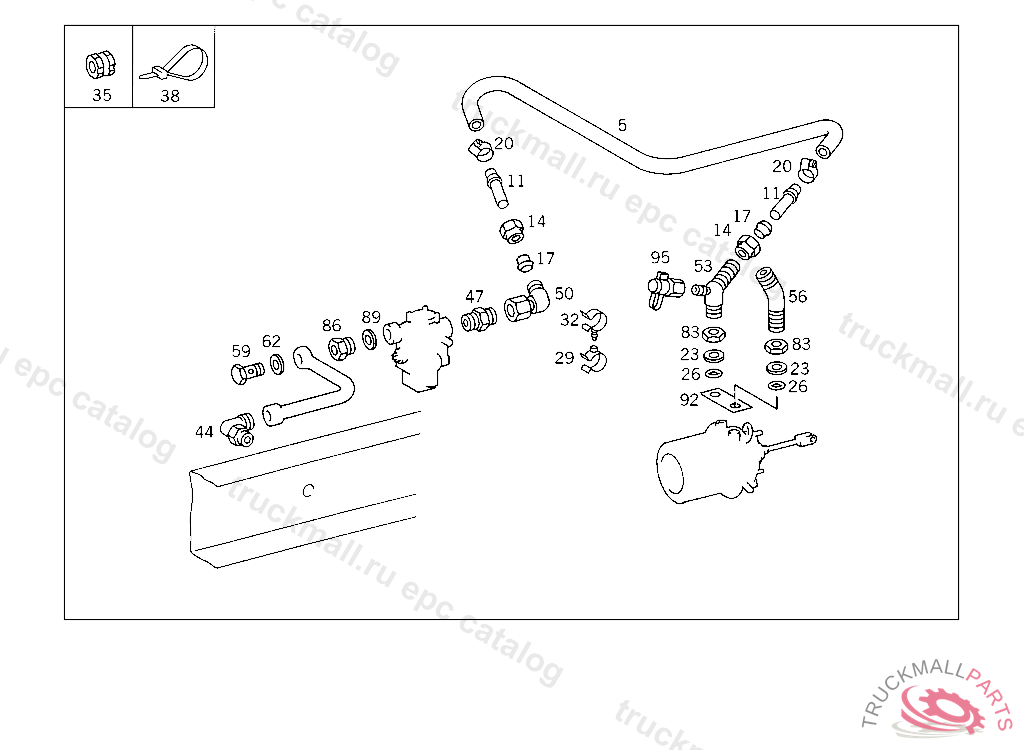

Поз.
Артикул
Описание
5
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
11
FITTING DIAPHRAGM CYLINDER,CONNECTION:
14
UNION NUT LINE CONNECTION
14
UNION NUT LINE CONNECTION, Replaced By: N000000006239
17
SEAL CONE LINE CONNECTION
17
GLAND , Replaced By: A0019901967
20
CLAMP HOSE TO FITTING AND TO OIL TANK
23
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
26
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
29
CLAMP BRAKE HOSE
32
CLAMP BRAKE HOSE
35
BRACKET LINE MOUNTING
38
LOOM TIE LINE MOUNTING 280 MM
44
ELBOW FITTING DELIVERY LINE TO PUMP
47
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
47
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
53
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
56
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
59
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
62
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
92
LOCK COMBINATION CYLINDER,5 557074
95
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
95
TEST CONNECTION
95
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
95
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
T-FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BRACKET LINE MOUNTING
999
BRACKET LINE MOUNTING
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW , Replaced By: N000000001146
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
