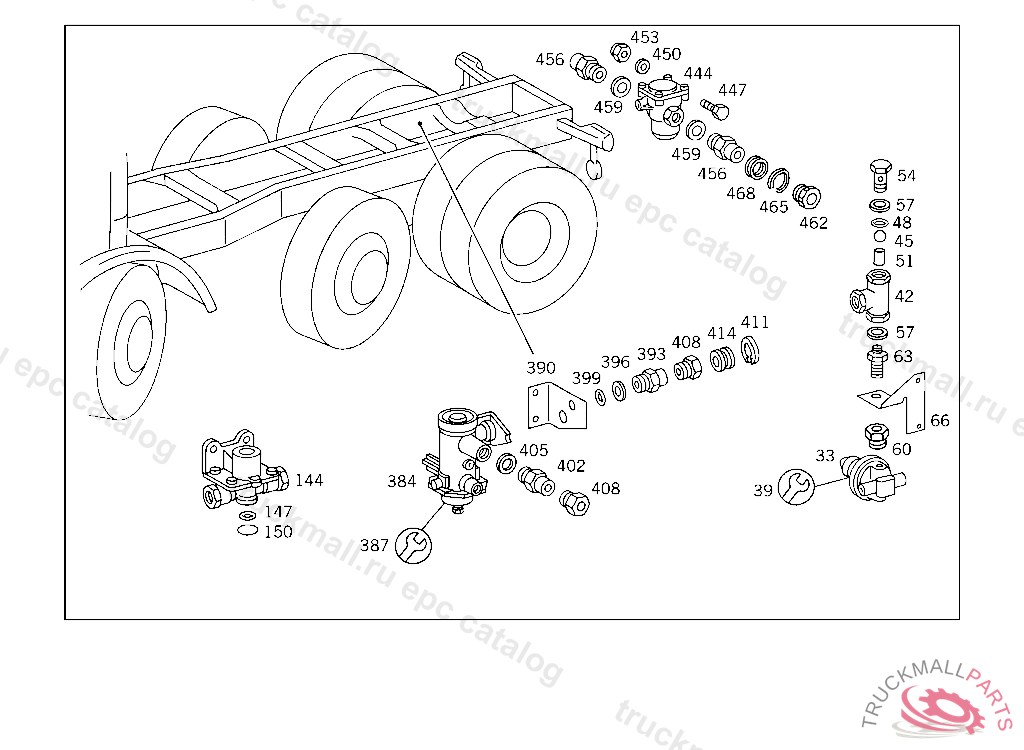

Поз.
Артикул
Описание
33
VALVE PRESSURE RELIEF FOR BELLOWS RESIDUAL PRESSURE
33
VALVE (PRESSURE RELIEF VALVE) "WESTINGHOUSE"
39
REPAIR KIT REDUCTION VALVE
42
VALVE TWO-WAY
42
VALVE TWO-WAY
45
BALLTO 003 429 22 44
48
GASKETTO 003 429 22 44
51
VALVE BODYTO 002 429 95 44
54
HOLLOW SCREW HEATING CONNECTION
57
SEAL RING LINE CONNECTION
60
ADAPTER FITTING BRAKE LINE COUPLING TO BRACKET
63
FITTING LINE CONNECTION
66
BRACKET PRESSURE RELIEF VALVE
144
VALVE (QUICK-RELEASE VALVE)
147
SEAL RINGWABCO
150
DIAPHRAGMWABCO
384
VALVE (PRESSURE LIMIT VALVE)
387
VALVE REPAIR KIT
387
REPAIR KIT , Replaced By: A0024292844
390
BRACKET PRESSURE LIMIT VALVE
393
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
396
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
396
THRUST RING CHECK VALVE TO AIR RESERVOIR
399
O-RING CHECK VALVE TO AIR RESERVOIR
402
FITTING LINE CONNECTION
405
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
408
SCREW. UNION SCREW LINE CONNECTION
411
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
414
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
444
VALVE PRESSURE RELIEF
444
VALVE (PRESSURE LIMIT VALVE)
447
SCREW VALVE TO CAB M 8X85
450
WASHER , Replaced By: N000125008443
450
WASHER EXHAUST MUFFLER TO STRAP
453
NUT , Replaced By: N913004008001
453
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
459
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
462
SCREW. UNION SCREW LINE CONNECTION
465
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
468
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
DISTRIBUTOR
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
TANK RECESS. T-FITTING LINE CONNECTION
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
999
LEVER SENSOR
999
PROTECTIVE PLATE AIR SPRING VALVE TO BRACKET
999
LEVER , Replaced By: A9453200627
999
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
