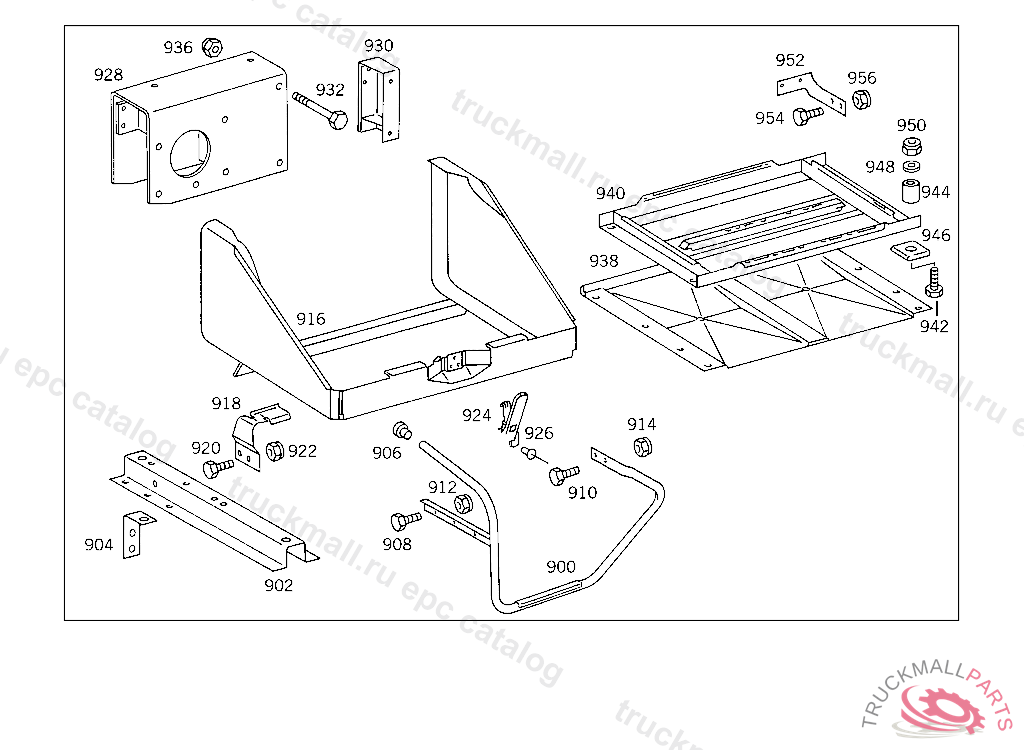

Поз.
Артикул
Описание
900
SUPPORT ROCKER PANEL
902
SUPPORT ROCKER PANEL
904
BRACKET FROM SUPPORT TO BATTERY/APPARATUS SUPPORT
906
PLUG ROCKER PANEL
908
SCREW BRACKET TO FRAME SIDE MEMBER
910
SCREW END PIECE TO EXHAUST PIPE M 10X25
912
NUT END PIECE TO EXHAUST PIPE
914
NUT STRAP TO BRACKET
914
NUT , Replaced By: N910113010000
916
BATTERY SUPPORT , Replaced By: A6555400516
916
BATTERY SUPPORT APPARATUS
918
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
918
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
920
SCREW LICENSE PLATE TO BRACKET
920
SCREW , Replaced By: N304017006020
922
NUT , Replaced By: N913004006001
922
NUT PUMP TO BRACKET
924
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
924
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
926
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
928
CONSOLE BATTERY/APPARATUS SUPPORT,FRONT
930
SUPPORT APPARATUS SUPPORT
932
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
932
SCREW , Replaced By: N308765014006
932
SCREW SUPPORT TO SIDE MEMBER M 14X90
936
NUT , Replaced By: N910113014001
936
NUT BRACKET TO SIDE MEMBER
938
BATTERY CASE
940
RAIL. BATTERY BASE FRAME
942
SCREW RADIATOR M 10X45
942
SCREW BRACKET TO FRAME SIDE MEMBER
944
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
946
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
948
WASHER , Replaced By: N007349010007
948
WASHER STRUT TO CROSS MEMBER
950
NUT STRAP TO BRACKET
950
NUT , Replaced By: N910113010000
952
BRACKET PRESSURE REGULATOR
952
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
954
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
956
NUT , Replaced By: N910113010000
956
NUT STRAP TO BRACKET
956
HOLLOW SCREW AIR DEHYDRATOR,CONNECTION: "21"
999
BRACKET LINE TO FRONT PANEL
999
REPAIR KIT CHECK VALVE VOSS
999
BUSHINGWABCO,5 433388
999
VALVE SEAT RINGWABCO,5 433388
999
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
999
REPAIR KIT BRAKE POWER REGULATOR KNORR
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KIT BRAKE POWER REGULATOR WABCO
999
BUSHING , Replaced By: A4421440050
999
DIAPHRAGM , Replaced By: A0004314128
999
LEVER PARKING BRAKE VALVE WABCO
999
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
999
PINTO 002 430 90 81
999
HANDLE"WABCO"
999
PROTECTIVE CAPWABCO
999
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
999
EDGE GUARD SECTION , Replaced By: A0019872272
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KIT HAND BRAKE VALVE "WABCO"
999
GASKET KITKNORR
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
BUSHING"WABCO"
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
TREENAIL BRACKET TO FIRE WALL
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
BRACKET DEHYDRATOR AIR-RESERVOIR
999
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
999
CONNECTOR , Replaced By: A0009908878
999
BRACKET , Replaced By: A6554316740
999
GUIDE SIGN AIR SPRING BELLOWS,5 760167
999
CONNECTOR9MM / M22X1,5 / VOSS 230, Replaced By: A0019909571, +001A0009940147, +001A0009941448, +001A0009970934
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK RINGWABCO,5 433388
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008040
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SLEEVE LEAK LINE
