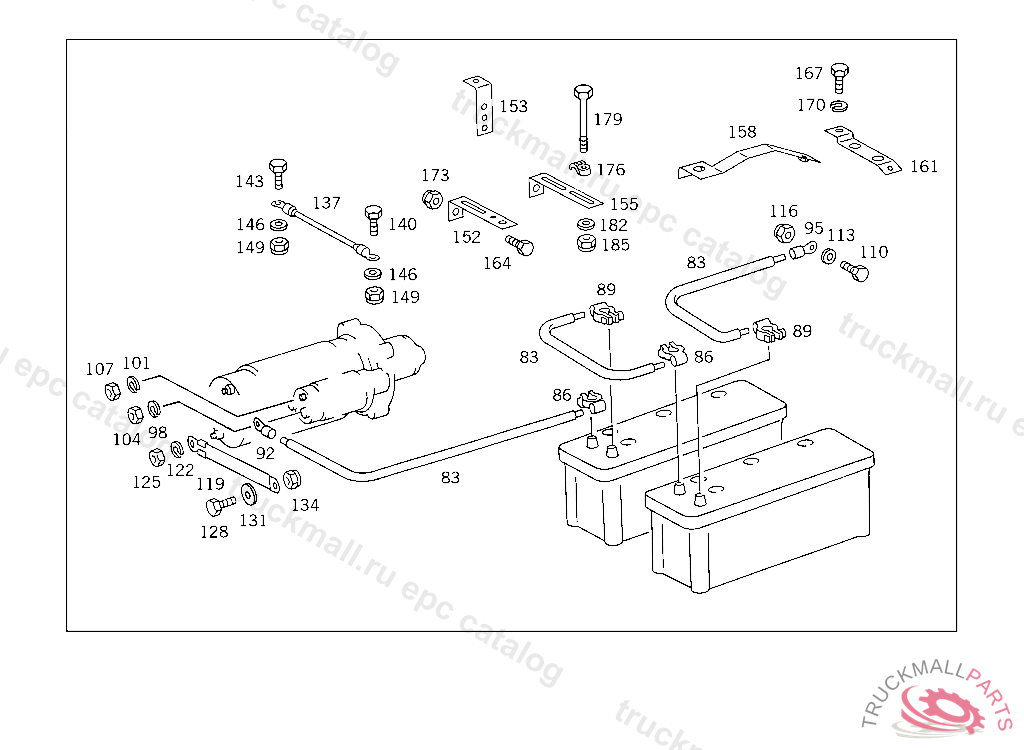

Поз.
Артикул
Описание
83
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
86
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
89
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
92
CABLE SHOE BATTERY CABLE 12-70 MM
95
CABLE SHOE BATTERY CABLE 10-70 MM
98
LOCK WASHER FITTING TO BRACKET
101
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
104
NUT STRAP TO SUPPORT,5 149419
107
NUT BALL PIVOT TO LEVER
110
SCREW EXHAUST PIPE TO SIDE MEMBER
113
WASHER RADIATOR TO RUBBER MOUNTING
113
WASHER , Replaced By: N000125010532
116
NUT , Replaced By: N910113010000
116
NUT STRAP TO BRACKET
119
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
119
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER,5 193595
122
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
125
NUT BRACKET TO SUPPORT AND TO END PIECE
128
SCREW EXHAUST PIPE TO SIDE MEMBER
131
WASHER RADIATOR TO RUBBER MOUNTING
131
WASHER , Replaced By: N000125010532
134
NUT , Replaced By: N910113010000
134
NUT STRAP TO BRACKET
137
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
137
NEG. CABLE , Replaced By: A6205402339
140
SCREW , Replaced By: N304017008034
140
SCREW BRACKET TO CROSS CONNECTION STRUT
143
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
SCREW , Replaced By: N304017008016
146
WASHER , Replaced By: N000125008443
146
WASHER EXHAUST MUFFLER TO STRAP
149
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
149
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
NUT , Replaced By: N913004008001
152
BRACKET LINE MOUNTING
155
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
155
BRACKET , Replaced By: A3524290740
158
BRACKET BATTERY CABLE TO ENGINE,5 496439
161
BRACKET BATTERY CABLE TO ENGINE
164
SCREW BRACKET TO SUPPORT M 16X20
164
SCREW CLAMP TO BRACKET,5 597426
164
SCREW , Replaced By: N910142008009
167
SCREW CENTRAL LOCK TO CAB M 10X16
170
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
173
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
173
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
173
NUT , Replaced By: N913004008001
176
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
179
SCREW , Replaced By: N304017006026
182
WASHER COMPRESSED AIR LINE TO BRACKET
182
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
185
NUT , Replaced By: N913004006001
185
NUT PUMP TO BRACKET
999
BLIND CAPTO A 004 541 48 01
