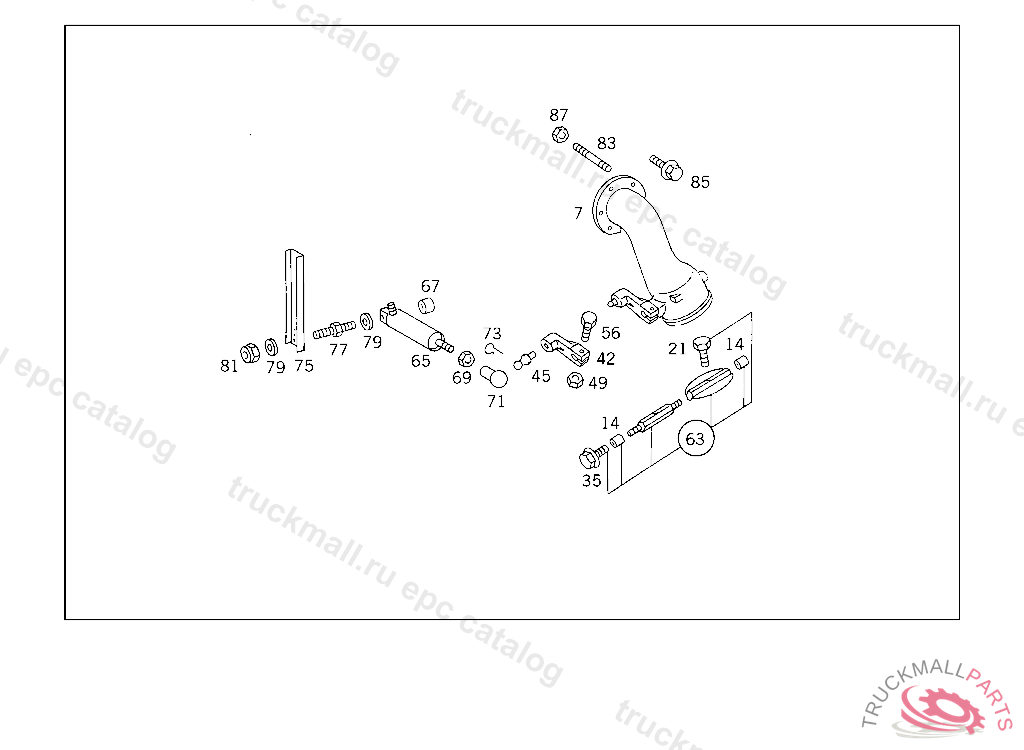

Поз.
Артикул
Описание
7
THROTTLE HOUSING LEFT
14
BUSHING
21
SCREW SHAFT TO THROTTLE VALVE
21
SCREW , Replaced By: N000933008390
35
SCREW BRACKET TO THROTTLE HOUSING
42
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
45
BALL PIVOT LEVER TO THROTTLE VALVE SHAFT
49
NUT BATTERY MOUNTING
49
NUT CYLINDER TO BRACKET TO0002902112
56
SCREW LEVER TO THROTTLE VALVE SHAFT
63
VALVE PARTS KIT
63
VALVE , Replaced By: A4411400263
65
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
65
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
65
CYLINDER , Replaced By: A0004305926
67
BUSHING"WABCO"
69
NUT
69
NUT , Replaced By: N304035008001
71
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
73
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
75
BRACKET EXHAUST-BRAKE POWER CYLINDER
77
PIN POWER CYLINDER TO BRACKET
79
WASHER INTERMEDIATE SPEED STOP
81
NUT POWER CYLINDER TO BRACKET
83
STUD CONNECTING PIPE TO EXHAUST MANIFOLD
85
SCREW CONNECTING PIPE TO EXHAUST BRAKE
87
NUT END PIECE TO EXHAUST PIPE
87
NUT END PIECE TO EXHAUST PIPE
