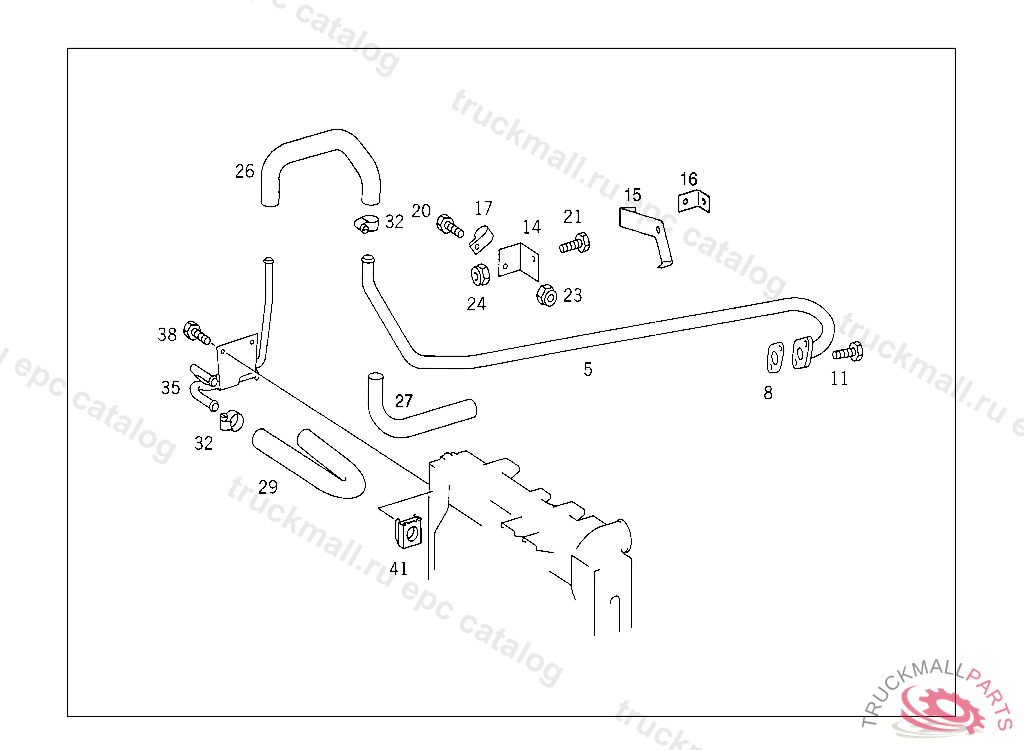

Поз.
Артикул
Описание
5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
8
GASKET HEATING PIPE TO ENGINE
11
SCREW , Replaced By: N304017008021
11
SCREW PIPE CLAMP
14
BRACKET FEED LINE TO THERMOSTAT
14
BRACKET HEATING PIPE
16
ANGLE LINE MOUNTING
17
CLAMP FEED LINE TO THERMOSTAT
20
SCREW COVER PLATE TO BRACKET
20
SCREW COVER PLATE TO BRACKET
20
SCREW LEVER TO ENGINE CONTROL SHAFT
21
SCREW END PIECE TO EXHAUST PIPE M 10X25
23
NUT AT FILTER BRACKET
24
NUT EXHAUST PIPE TO SIDE MEMBER
26
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
29
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
32
CLAMP , Replaced By: N000000000667
32
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
35
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
35
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
38
SCREW , Replaced By: N304017006016
38
SCREW PUMP TO BRACKET
41
NUT RETAINER , Replaced By: A0019906791
41
NUT RETAINER LICENSE PLATE TO BRACKET
