Mercedes A4069910022 - ЦАПФА СФЕРИЧЕСКАЯ

2538 L 658.416 DATACARD: CHASSIS-SA 5...../..

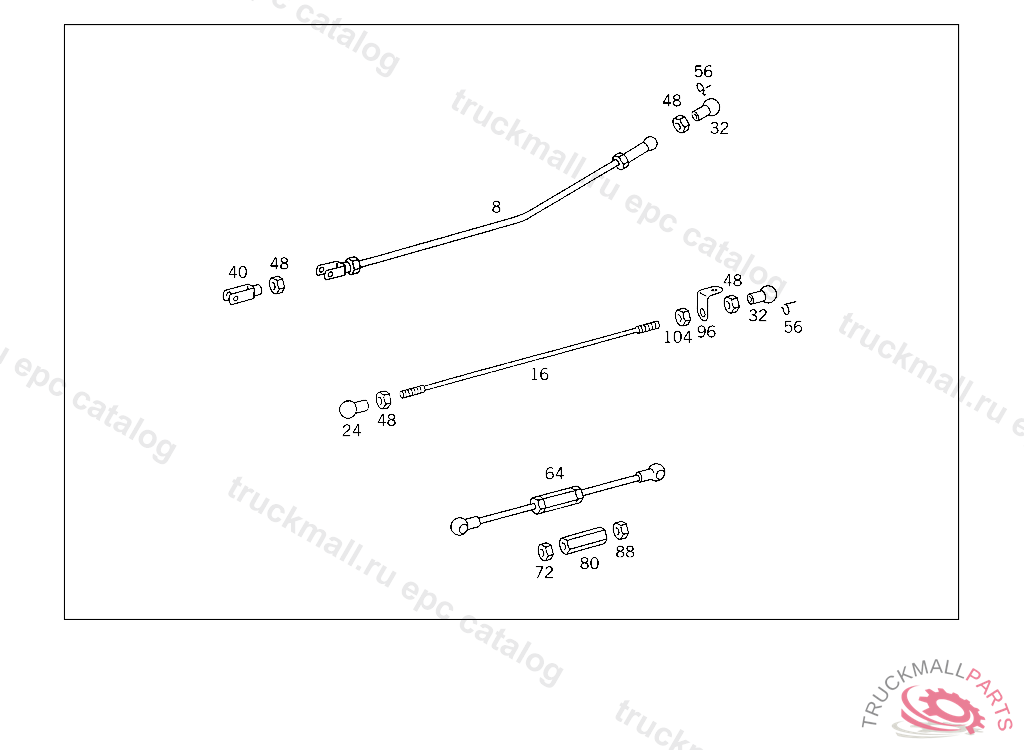

30 CONTROL - 001 LINKAGE,AT ENGINE

Поз.
Артикул
Описание
8
A6583010315
ROD FROM INTERMEDIATE LEVER TO ENGINE
8
A6583010515
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
16
N900331008420
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
16
N900331008421
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
24
N071805013203
BALL SOCKET ROD TO BALL PIVOT
32
A4069910022
BALL SOCKET ROD TO BALL PIVOT
40
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
48
N304032008006
NUT
48
N000934008010
NUT , Replaced By: N304032008006
56
N071805013402
SECURING CLIP. CIRCLIP
64
A6173000615
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
72
N304032008006
NUT
72
N000934008010
NUT , Replaced By: N304032008006
80
A3812920033
NUT TURNBUCKLE
88
N304032008007
NUT BALL SOCKET TO ROD
96
A3853010040
BRACKET FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
104
N304032008006
NUT
104
N000934008010
NUT , Replaced By: N304032008006
