Mercedes A6204920640 - ХОМУТ

2538 L 658.416 DATACARD: CHASSIS-SA 5...../..

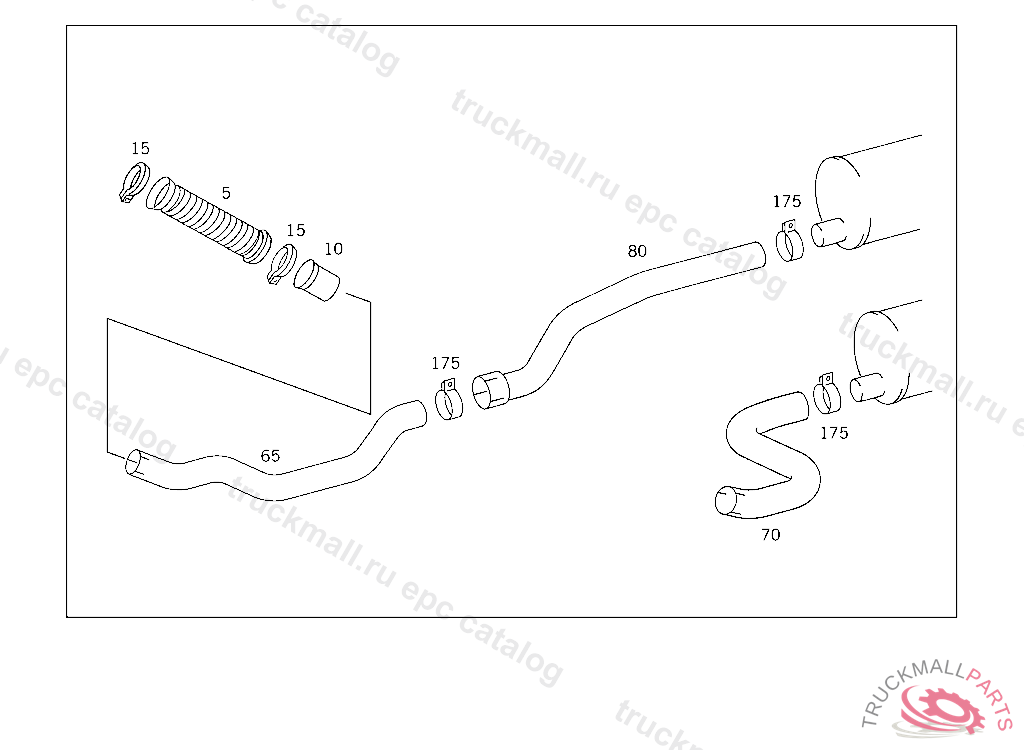

49 EXHAUST SYSTEM - 001 FRONT EXHAUST PIPE IL.1

Поз.
Артикул
Описание
5
A6214900065
FLEXIBLE METAL TUBE FRONT LEFT
10
A6214920008
COLLAR (SLIDING COLLAR)
15
A6219970090
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
65
A0804902152
EXHAUST PIPE FRONT
70
A6254904120
EXHAUST PIPE FRONT
70
A0804903652
EXHAUST PIPE FRONT
80
A0814924791
EXHAUST PIPE INTERMEDIATE PIECE TO FRONT EXHAUST PIPE AND TO EXHAUST MUFFLER
175
N071555104501
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
175
N071555104501
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
A0804905552
EXHAUST PIPE FRONT
999
A0804923230
PROTECTIVE PLATE CONNECTING PIPE
999
A0804926430
PROTECTIVE PLATE (HEAT SHIELD)
999
A0814904152
EXHAUST PIPE FRONT
999
A0814904552
EXHAUST PIPE FRONT
999
A0814905120
EXHAUST PIPE FRONT
999
A0814905752
EXHAUST PIPE FRONT
999
A0814921590
FRONT EXHAUST PIPE FRONT
999
A3604292940
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
A6174290540
BRACKET , Replaced By: A3604292940
999
A6204920640
CLAMP STRUT TO EXHAUST PIPE
999
A6554926541
BRACKET FRONT EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
A6674710541
BRACKET AT CROSS MEMBER
