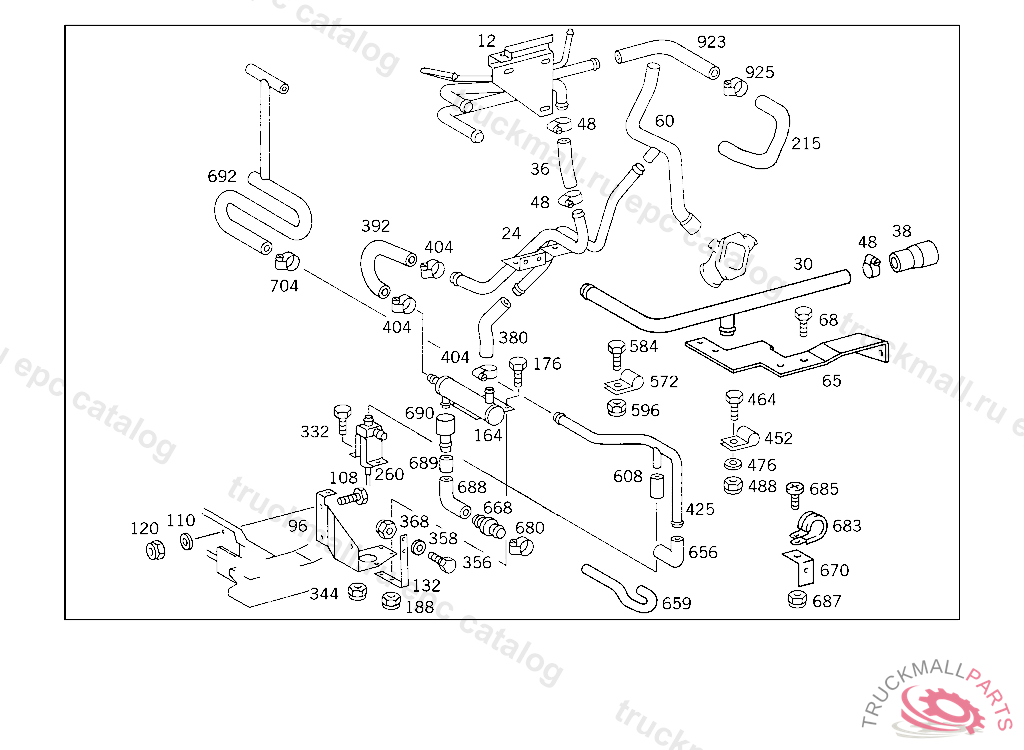

Поз.
Артикул
Описание
12
LINE HEATING WATER,5 902122
12
LINE FROM SOLENOID VALVE TO PUMP
12
LINE
12
LINE HEATING WATER
12
LINE HEATING AND BREATHING,5 944085
12
LINE HEATING WATER,5 602406
12
LINE HEATING WATER,5 534803
12
LINE HEATING WATER
12
LINE HEATING WATER
12
LINE HEATING WATER
12
LINE HEATING AND BREATHING,5 944084
12
LINE HEATING WATER
12
LINE HEATING WATER
12
LINE HEATING WATER
12
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
12
LINE , Replaced By: A0005516456
12
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6525003972
12
LINE HEATING WATER
12
LINE HEATING WATER
24
LINE , Replaced By: A6205002572
24
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 188037, Replaced By: A6205002572
24
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 188037, Replaced By: A6205002772
24
LINE HEATING WATER
24
LINE HEATING WATER
24
LINE HEATING WATER
24
LINE HEATING WATER
24
LINE HEATING WATER
30
LINE HEATING WATER
30
PIPE HEATING WATER
30
LINE HEATING WATER
36
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
38
HOSE FROM VALVE TO FEED LINE
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
48
CLAMP , Replaced By: N000000000667
60
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6555062835
60
HOSE FROM EXPANSION TANK TO WATER PUMP, 5 721796
60
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,5 534804K 003668
60
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
60
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
60
HOSE FROM EXPANSION TANK TO WATER PUMP, 5 721797
60
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
60
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
60
HOSE FROM EXPANSION TANK TO WATER PUMP
65
BRACKET LINE TO RADIATOR
68
SCREW SUPPORT TO CROSS MEMBER M 10X28
96
BRACKET BUBBLE SEPARATOR
108
SCREW PIPE CLAMP
108
SCREW , Replaced By: N304017008021
108
SCREW , Replaced By: N304017008021
110
WASHER , Replaced By: N009021008213
110
WASHER BRACKET TO LEFT SIDE MEMBER
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
NUT , Replaced By: N913004008001
132
BRACKET ENGINE WATER PIPE
164
SEPARATOR (BUBBLE SEPARATOR)
164
SEPARATOR (BUBBLE SEPARATOR),4 943405
176
SCREW CAB FLOOR COVERING M 6X25
176
SCREW COVER PLATE TO BRACKET
188
NUT , Replaced By: N913004006001
188
NUT PUMP TO BRACKET
215
HOSE HEATING PIPE TO RADIATOR
260
VALVE (SOLENOID VALVE)
260
SOLENOID VALVE. VALVE (SOLENOID VALVE),5 762455
260
VALVE (SOLENOID VALVE),5 232740
332
SCREW REGULATOR TO BRACKET
332
SCREW BRACKET MOUNTING
344
NUT ATTACHMENT, MARKER LIGHT
344
NUT , Replaced By: N913002004001
356
SCREW END PIECE TO EXHAUST PIPE M 10X25
356
SCREW EXHAUST PIPE TO BRACKET
358
WASHER RADIATOR TO RUBBER MOUNTING
358
WASHER , Replaced By: N000125010532
368
NUT , Replaced By: N910113010000
368
NUT STRAP TO BRACKET
380
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR
392
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR
392
PIPE FROM HEATING LINE TO BUBBLE SEPARATOR
392
PIPE FROM HEATING LINE TO BUBBLE SEPARATOR
392
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE
392
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR
392
HOSE , Replaced By: A3898320523
392
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 928744 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525060435
392
HOSE , Replaced By: A3818321823
404
CLAMP , Replaced By: N000000000667
404
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
425
LINE HEATING WATER
452
CLAMP FEED LINE TO THERMOSTAT
464
SCREW COVER PLATE TO COVER PLATE M 6 X 12
464
SCREW , Replaced By: N304017006018
464
SCREW COVER PLATE TO BRACKET
476
WASHER , Replaced By: N009021006208
476
WASHER COMPRESSED AIR LINE TO BRACKET
488
NUT PUMP TO BRACKET
488
NUT , Replaced By: N913004006001
572
CLAMP FEED LINE TO THERMOSTAT
584
SCREW COVER PLATE TO BRACKET
596
NUT PUMP TO BRACKET
596
NUT , Replaced By: N913004006001
608
HOSE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO.5 561857-5 738672, Replaced By: A3095061023
608
HOSE , Replaced By: A6255060335
608
BEARING BRACKET FROM HEATING LINE TO SOLENOID VALVE
656
HOSE FROM CHECK VALVE TO PIPE LINE
656
HOSE FROM FLANGE TO VALVE
656
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR
656
HOSE , Replaced By: A6205060635
659
HOSE FEED LINE LEADING TO CAB
668
VALVE CHECK VALVE
668
VALVE , Replaced By: A0008352872
668
VALVE , Replaced By: A0008352872
670
ANGLE LINE MOUNTING
680
CLAMP , Replaced By: N000000000667
680
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
683
CLAMP , Replaced By: N000000000670
683
CLAMP BRAKE HOSE BRACKET
683
CLAMP
685
SCREW CLAMP MOUNTING M 6X16
685
SCREW , Replaced By: N000000001146
687
NUT , Replaced By: N913004006001
687
NUT PUMP TO BRACKET
688
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR,5 602407
689
HOSE FROM HEATING LINE TO BUBBLE SEPARATOR,5 602407
690
PIPE SOCKET HOSE TO BUBBLE SEPARATOR,5 602407
692
HOSE FEED LINE LEADING TO CAB
692
HOSE HEATING, ADDITIONAL WATER PUMP,HEATER UNIT,HEAT EXCHANGER
692
HOSE , Replaced By: A6555061535
704
CLAMP , Replaced By: N000000000667
704
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
923
HOSE FROM FLANGE TO HEATING PIPE
923
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6555062835
923
HOSE , Replaced By: A6205060635
923
HOSE , Replaced By: A3635060235
923
HOSE FROM EXPANSION TANK TO WATER PUMP, 5 721797
923
HOSE FROM CHECK VALVE TO PIPE LINE
923
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
923
HOSE HEATING PIPE TO RADIATOR
923
HOSE FEED LINE TO RADIATOR,5 944085
923
HOSE HEATING PIPE TO RADIATOR
923
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
925
CLAMP , Replaced By: N000000000667
925
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
NUT END PIECE TO EXHAUST PIPE
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
PIN BRACKET TO CONSOLE
999
SCREW BRACKET TO SIDE MEMBER M 12X40
999
SCREW , Replaced By: N304017008021
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
BRACKET BUBBLE SEPARATOR
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK,5 528984
999
BRACKET ENGINE/ENGINE-SPEED-LIMITATION CABLEHARNESS PLUG-CONNECTION
999
BRACKET HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003669
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET FEED LINE TO THERMOSTAT
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
LINE DE-AERATION PIPE TO ENGINE
999
LINE HEATING LINES,K 003669
999
LINE HEATING LINES
999
LINE HEATING AND BREATHING,K 096749
999
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,K 003769
999
LINE HEATING AND BREATHING
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE
999
BRACKET HEATING PIPE TO OIL COOLER
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING FEED,K 004002
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING AND BREATHING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
LINE
999
BRACKET AT BRACKET
999
BRACKET ENGINE CABLE HARNESS BRANCH-OFF,5 094166
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
LINE , NOT USED
999
LINE (HEATING LINE),FROM ENGINE TO HEATER
999
LINE HEATING PIPE
999
LINE HEATING PIPE
999
LINE HEATING AND BREATHING
999
BRACKET DE-AERATION LINE TO CAB
999
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
BRACKET , Replaced By: A6454310740
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
FLANGE (BLIND FLANGE)
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
SCREW , Replaced By: N910105010009
999
NUT EXHAUST PIPE TO SIDE MEMBER
