Mercedes N007981004261 - САМОНАРЕЗ ВИНТ ПО МЕТАЛЛУ

2644/L,3544 659.093

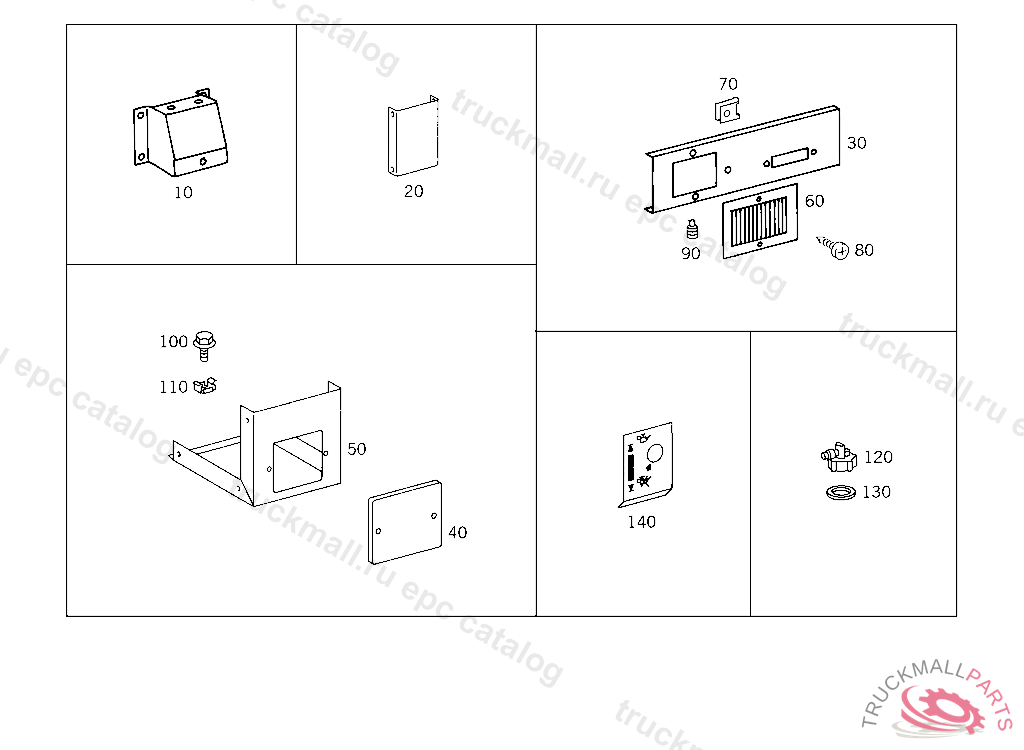

46 STEERING - 001 FASTENING PARTS FOR UNIT,ELECTRONIC HYDRAULIC AUXILIARY STEERING IL.1

Поз.
Артикул
Описание
10
A0804600435
BRACKET SERVO UNIT
10
A0804601935
BRACKET SERVO UNIT
20
A6995409273
BRACKET FRONT AND REAR
30
A6994601195
COVERING PUMP
30
A6994600895
COVERING , Replaced By: A6994601195
40
A6994601495
COVERING TOP
50
A6994601295
COVERING BOTTOM
60
A6994662438
COVER PLATE VENTILATION
70
A1409941045
LOCK FUEL LINE
80
N007981004261
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
90
A0009887042
FASTENER
100
N914007008000
COMBINATION BOLT , Replaced By: N304017008021, +001N000125008443
100
N304017008021
SCREW PIPE CLAMP
110
A0009902691
CAGE CLIP WITH NUT M 8. NUT RETAINER COVERING TO COVER PLATE
120
A1298000021
COVER OIL TANK, TO BE ADAPTED DURING ASSEMBLY
130
A6999902840
WASHER OIL TANK
140
A6995842124
UNIT IDENTIFICATION PLATE OIL TANK
999
A0009906750
NUT STRAP TO SUPPORT
999
A0029902704
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
A0029906804
SCREW , Replaced By: N910105012025
999
A6204310184
SHIM FUEL TANK TO FRAME
999
A6995530050
BUSHING BRACKET TO FRAME
999
N910105012025
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
