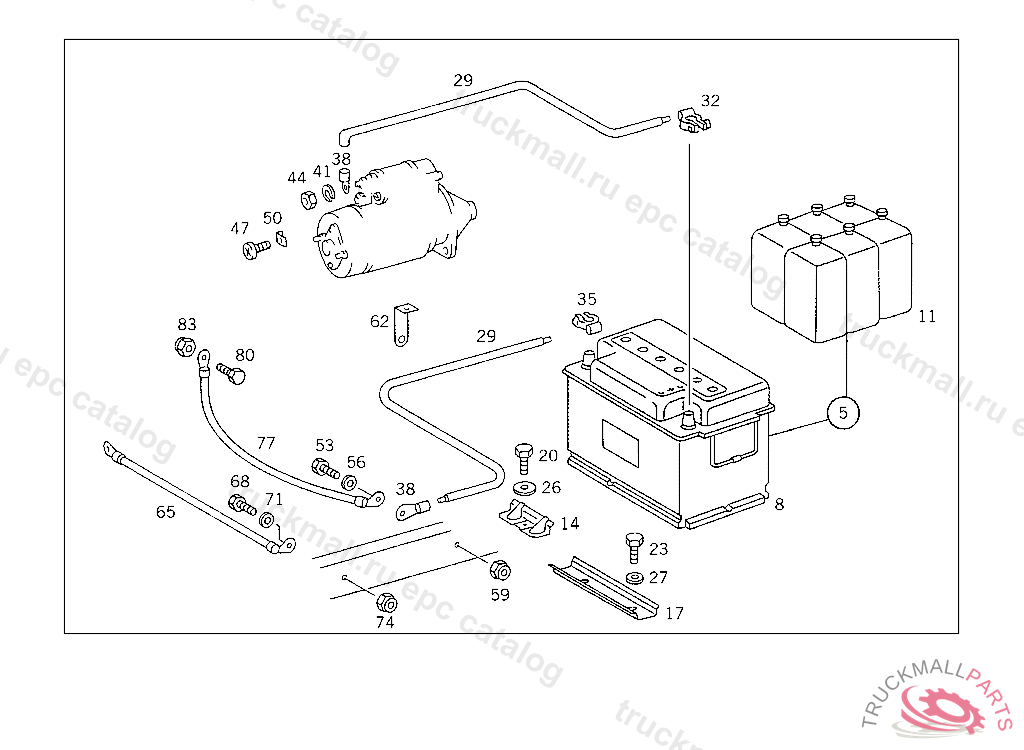

Поз.
Артикул
Описание
5
BATTERY PARTS KIT
5
BATTERY , Replaced By: A0045414601
5
BATTERY100 AH
5
BATTERY , Replaced By: A1405400101
5
BATTERY , Replaced By: A0035419201, +001A0009891415
8
BATTERY , Replaced By: A0025414101
8
BATTERY , Replaced By: A0045411501
8
BATTERY , Replaced By: A0045413101
8
BATTERY12V/88AH, Replaced By: A0009823808
8
BATTERY12V/88AH
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891415
11
BATTERY ACID BOTTLE SET
14
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
17
MOUNTING RAIL
20
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
SCREW BRACKET TO CONSOLE
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER , Replaced By: N009021008213
27
WASHER RADIATOR TO RUBBER MOUNTING
29
ELECTRIC CABLE , Replaced By: A6735460011
29
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
32
SOLDERING TERMINAL POS. POLE
35
SOLDERING TERMINAL POS. POLE
38
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
38
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
38
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
41
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
44
NUT
44
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
44
NUT , Replaced By: N304035010001
47
SCREW ELECTRIC CABLE TO HORN
50
MOUNTING BOW CABLE TO STARTING MOTOR,TERMINAL 50
53
SCREW STRUT TO CROSS MEMBER M 10X25
56
WASHER RADIATOR TO RUBBER MOUNTING
59
NUT CROSS MEMBER TO SIDE MEMBERS
62
BRACKET STARTING MOTOR LINE TO CLUTCH BELL, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
65
GROUND STRAP
68
SCREW STRUT TO CROSS MEMBER M 10X25
71
WASHER RADIATOR TO RUBBER MOUNTING
74
NUT CROSS MEMBER TO SIDE MEMBERS
77
ELECTRIC CABLE GROUND CABLE
80
SCREW PUMP TO BRACKET
83
NUT HEATING PIPE TO BRACKET
999
BATTERY , Replaced By: A0045413101
999
BATTERY12V/88AH, Replaced By: A0009823808
