Mercedes A6718300126 - ZB LUFTDUESENVERBIND

O 345,CONECTO H 671.042

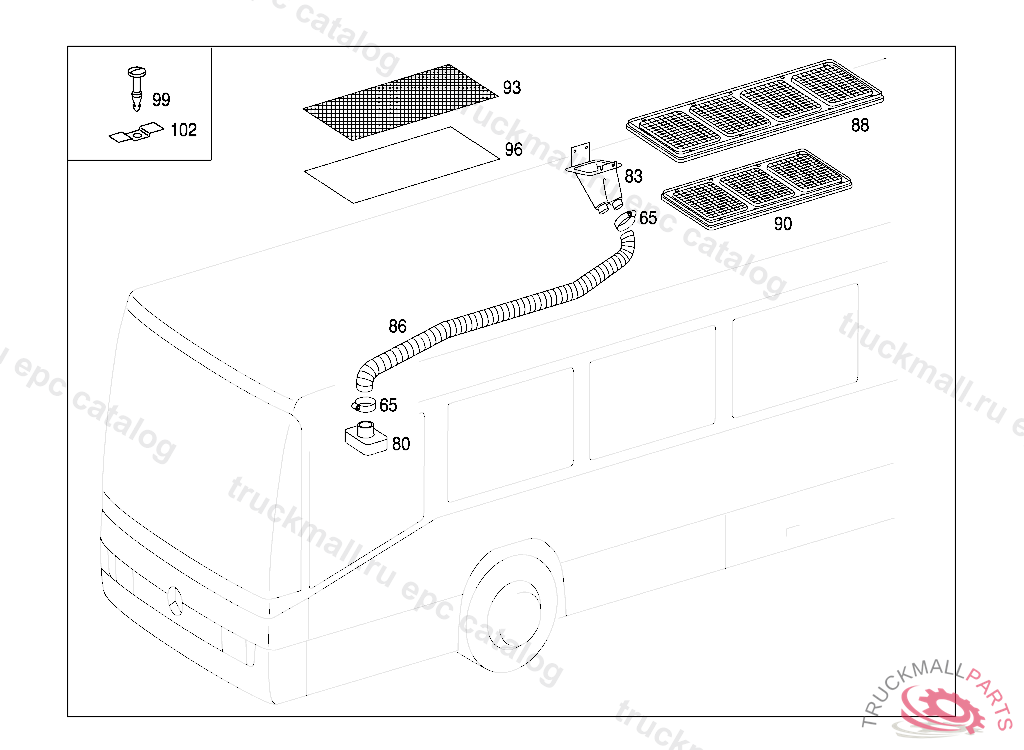

83 HEATING AND VENTILATION - 180 AIR GUIDE IL. 2

Поз.
Артикул
Описание
65
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
65
N000000003528
CLAMP
65
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
65
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
80
A0008320227
CONNECTOR
80
A6718310126
83
A6718300126
83
A6718300026
86
A6718321523
86
A6298310088
HOSE37MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
A0008312588
HOSE AIR INTAKE,HEATER 64.8 X 2.4 X 1400 MM, TO BE ADAPTED DURING ASSEMBLY
88
A6718300265
90
A0008352818
90
A6718300165
93
A0008352718
96
A0028350247
96
A0018355347
99
A0008310578
FASTENER
102
A0008354434
SPRING CLIPTO A 628 830 65 61
