Mercedes N912004008102 - Кольцо стопорное

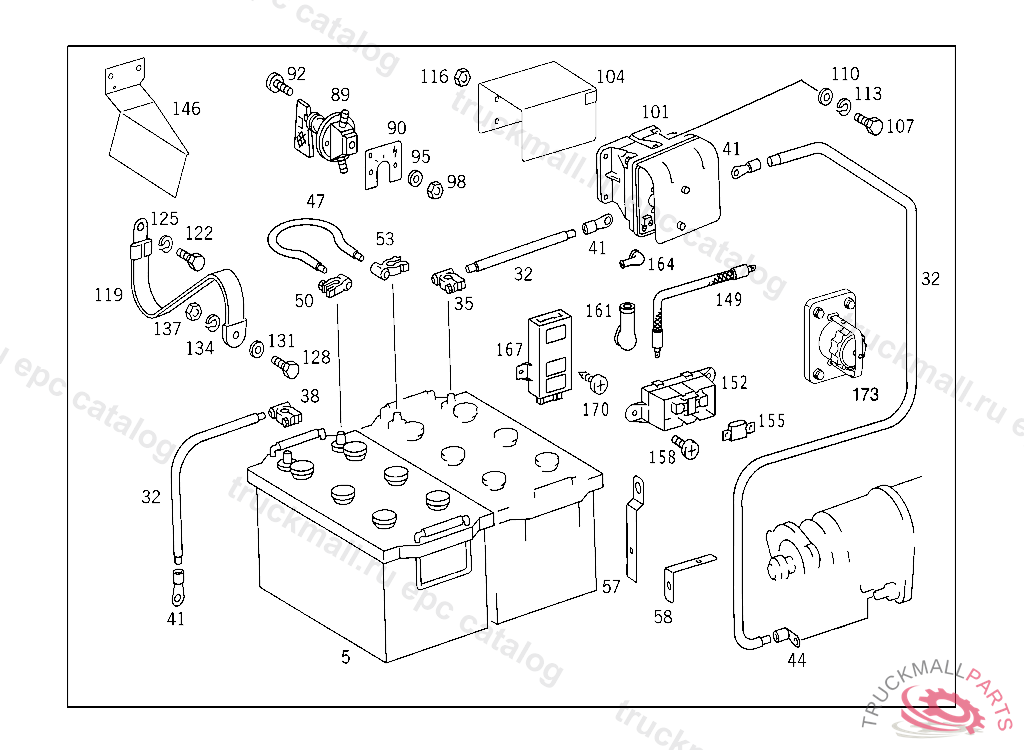

5

BATTERY

5

BATTERY MAINTENANCE-FREE 12V/200 AH, SA 67062/01

5

STARTER BATTERY TROPICAL VERSION 12 V / 220 AH

5

BATTERY , Replaced By: A0025413901

32

ELECTRIC CABLE FROM BATTERY TO BATTERY MASTER SWITCH, ORDER BY THE METER

35

SOLDERING TERMINAL POS. POLE

38

SOLDERING TERMINAL NEG.POLE

41

CABLE SHOE

41

CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR

41

CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH

44

CABLE SHOE

47

ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR

50

SOLDERING TERMINAL POS. POLE

53

SOLDERING TERMINAL NEG.POLE

57

58

101

RELAY (BATTERY MASTER SWITCH)

104

104

107

SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30

110

WASHER EXHAUST MUFFLER TO STRAP

116

NUT

119

GROUND STRAP FROM ENGINE TO FRAME, FROM CHASSIS 018694,ALSO INSTALLED ON 018411,018469,018489,018529,018549,018589,018610,EXCEPT FOR 018709,018713,018731,018735,018752,018756,018777,018784,018805,018817,018839,018843,018859,018871, 018874,018883,018892,018901,018907,018911,018917,019001,019023,019044,019064,019085,019135,019157, 019180,019221,019243,019276,019319,019361,019403,019424,019488,019530.

122

SCREW OIL LINE TO CRANKCASE

122

125

LOCK WASHER CAB TO FRONT CONSOLE,4 444945

128

SCREW BRACKET TO SIDE MEMBER

131

WASHER RADIATOR TO RUBBER MOUNTING

134

LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500

137

NUT BATTERY CABLE

137

NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET

146

146

149

149

149

149

149

152

FUSE BOX

152

FUSE BOX DOUBLE

155

FUSE LINK ADAPTER BOX PLUS 125A

155

FUSE125A, Replaced By: N000000000594

158

SCREW HOOK TO BRACKET

161

BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF

164

BOOT , Replaced By: A0005463335

164

BOOT NEG. CABLE

167

CONTROL UNIT PROTECTION AGAINST CONSEQUENTIAL DAMAGE

170

SHEET METAL SCREW BRACKET TO CAB 4,2X13

173

PLUG SOCKET , Replaced By: N072593035100
