Поз.
Артикул
Описание

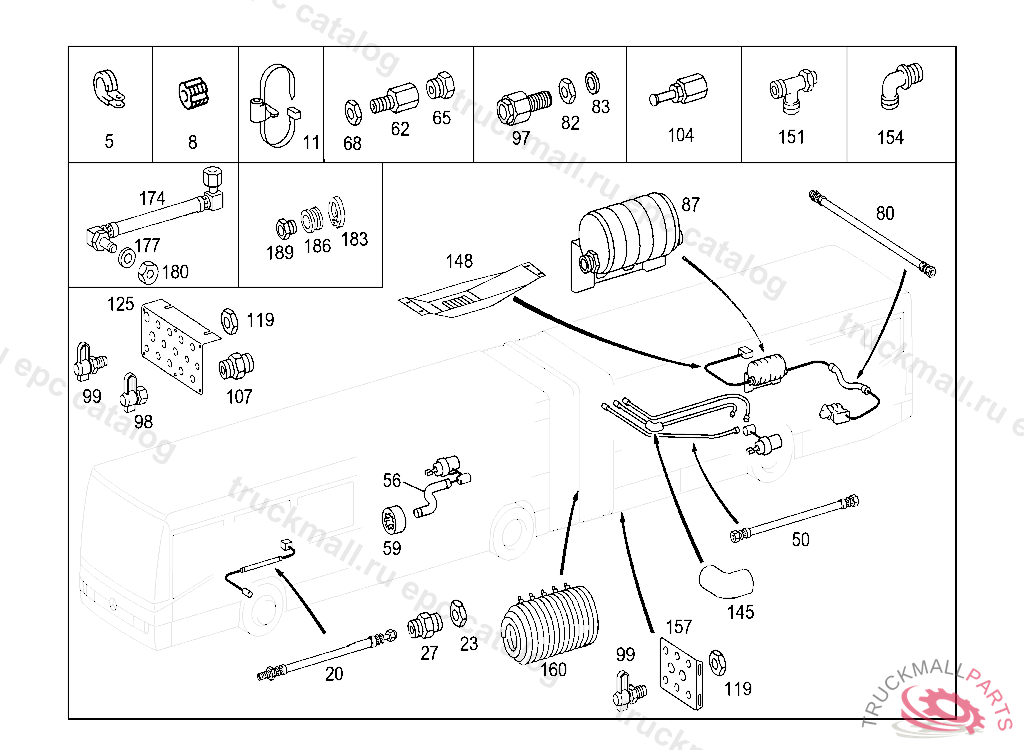

5
CLAMP PIPE LINE TO CONDENSER
5
CLAMP LINE MOUNTING
5
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
5
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
5
CLAMP SENSOR CABLE TO FRONT AXLE
5
CLAMP ,K 147121, Replaced By: N000000000319
8
BRACKET LINE MOUNTING
11
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
20
BRAKE HOSE FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
23
NUT BRACKET TO SIDE MEMBER
27
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
50
50
50
BRAKE HOSE DELIVERY LINE TO CLUTCH BOOSTER
56
BRAKE HOSE BETWEEN THE LINES
59
RUBBER RING
62
FITTING TWO-WAY VALVE,CONNECTION: "2"
62
ADAPTER FITTING AT BRACKET
62
65
SCREW. UNION SCREW , Replaced By: A0009973734
68
NUT AT TEST CONNECTION BRACKET
80
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
80
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
82
NUT BRACKET TO SIDE MEMBER
83
WASHER BEARING BODY TO SUBSTRUCTURE 2.00 MM
87
MUFFLER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
87
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR,095094 UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
87
MUFFLER , Replaced By: A6284300570
87
MUFFLER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
97
CONNECTOR BRAKE HOSE TO COMPRESSED AIR LINE M18X1.5
97
CONNECTOR BRAKE HOSE TO BRACKET
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
98
TEST CONNECTION
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
98
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
99
TEST CONNECTION
99
TEST CONNECTIONM16X1.5/M16X1.5
104
TEST CONNECTION
107
FITTING AT BRACKET
119
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
125
145
HOSE
148
