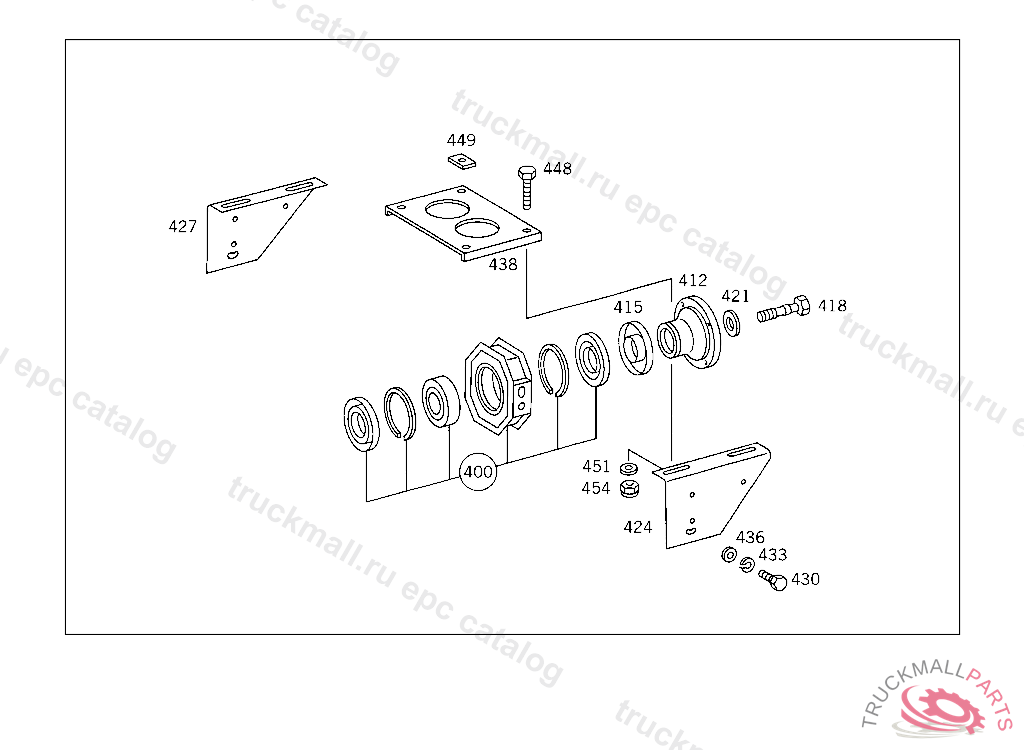

Поз.
Артикул
Описание
400
INTERMEDIATE BEARING PROPELLER SHAFT,5 529480
400
INTERMEDIATE BEARING ,5 529479, Replaced By: A4604100222, +002A4604110096
412
FLANGE PROPELLER SHAFT BEARING,5 529480
412
CENTERING FLANGE PROPELLER SHAFT BEARING,5 529479
415
PROTECTIVE CAP ,5 529479
415
PROTECTIVE CAP
418
SCREW FLANGE TO SHAFT
421
WASHER , Replaced By: A6734110062
421
THRUST WASHER FLANGE TO SHAFT
424
BRACKET PROPELLER SHAFT BEARING I,LEFT
427
BRACKET PROPELLER SHAFT BEARING I,RIGHT
430
SCREW , Replaced By: N304017010043
430
SCREW BRACKET TO CONSOLE
433
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
436
WASHER , Replaced By: N007349010007
436
WASHER STRUT TO CROSS MEMBER
438
REINFORCEMENT PROPELLER SHAFT BEARING
448
SCREW , Replaced By: N308676010023
448
SCREW BRACKET TO CROSS MEMBER M 10X40
448
SCREW , Replaced By: N000961010031
449
REINFORCEMENT MOUNTING USED FOR FRAME CONNECTION PARTS
451
WASHER STRUT TO CROSS MEMBER
451
WASHER , Replaced By: N007349010007
454
NUT BRACKET TO CROSS MEMBER
