Поз.
Артикул
Описание
5

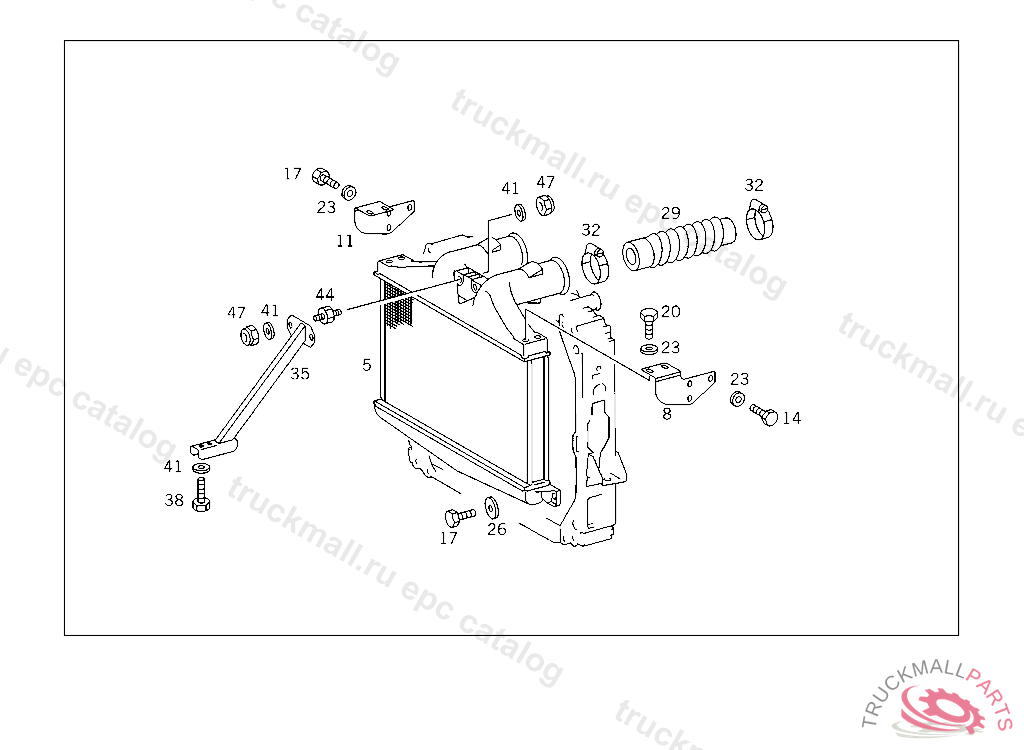

RADIATOR (CHARGING AIR INTERCOOLER)
8
BRACKET RADIATOR,LEFT
11
BRACKET RADIATOR,RIGHT
14
SCREW REDUCTION VALVE TO BRACKET
14
SCREW , Replaced By: A0079900801
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
20
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
20
SCREW , Replaced By: N304017008039
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER BRACKET TO CAB REAR PANEL
26
WASHER , Replaced By: N009021008213
29
HOSE AT CHARGING AIR INTERCOOLER
29
HOSE FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE
32
CLAMP , Replaced By: N000000000674
32
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
35
RADIATOR STRUT CHARGE AIR INTERCOOLER
38
SCREW PIPE CLAMP
38
SCREW , Replaced By: N304017008021
41
WASHER , Replaced By: N000125008443
41
WASHER EXHAUST MUFFLER TO STRAP
44
RUBBER BUFFER COVERING TO FRAME
47
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT , Replaced By: N913004008001
999
SCREW WATER DRAIN
