Поз.
Артикул
Описание

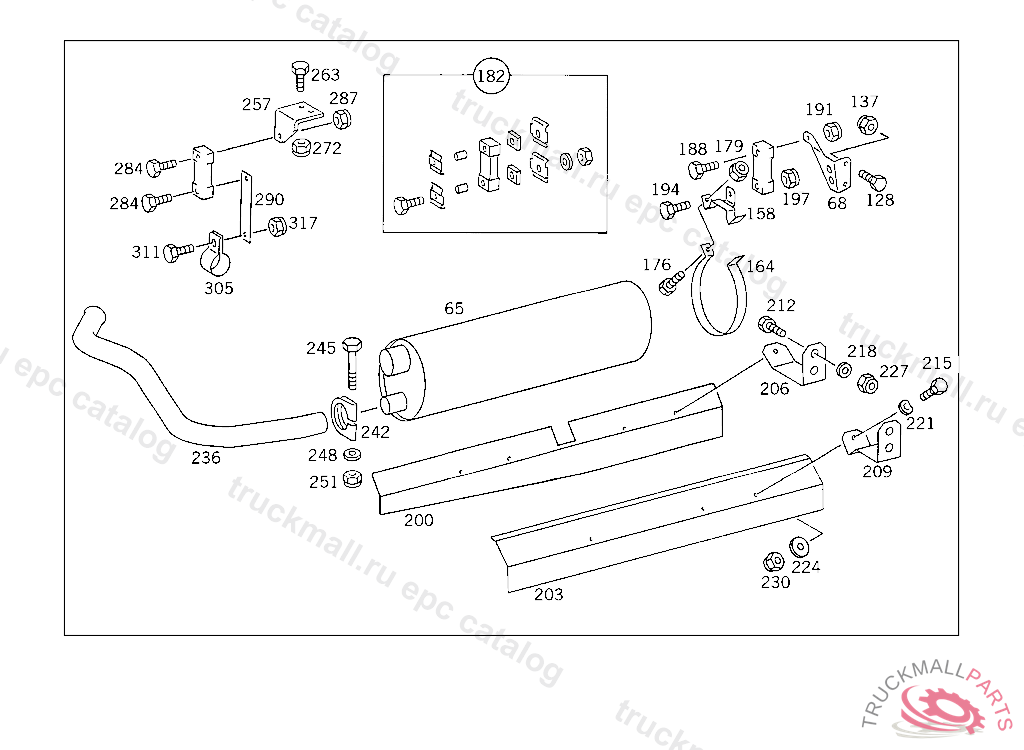

65
EXHAUST MUFFLER , NOT USED
68
BRACKET EXHAUST MUFFLER,5 194472
128
SCREW SUPPORT TO CROSS MEMBER M 10X28
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
158
BRACKET AT MUFFLER,5 194472
164
BRACKET AT MUFFLER,5 337342
176
SCREW BRACKET TO SIDE MEMBER
176
SCREW BRACKET TO SIDE MEMBER
179
NUT , Replaced By: N910113010000
179
NUT STRAP TO BRACKET
179
NUT STRAP TO BRACKET
182
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
188
SCREW CLUTCH TO FLYWHEEL M 8X60
191
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
191
NUT , Replaced By: N913004008001
194
SCREW CLUTCH TO FLYWHEEL M 8X60
197
NUT , Replaced By: A1201420072
197
HEXAGON NUT SCREENING PLATE,5 163561
236
REAR EXHAUST PIPE ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 422640, Replaced By: A6744927504
236
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 3373435 743552
236
REAR EXHAUST PIPE (TAIL PIPE),5 337342
236
REAR EXHAUST PIPE ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 527717, Replaced By: A6754920704
242
CLAMP REAR EXHAUST PIPE TO MUFFLER
245
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
248
WASHER EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
251
NUT , Replaced By: N913004008001
251
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
257
BRACKET TAIL PIPE,FRONT,5 7435525 800001-5 803729
263
SCREW , Replaced By: N304017008034
263
SCREW BRACKET TO CROSS CONNECTION STRUT
263
SCREW BRACKET TO CROSS CONNECTION STRUT
272
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
272
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
272
NUT , Replaced By: N913004008001
284
SCREWM 8X40
287
NUT , Replaced By: N913004008001
287
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
290
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
290
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
305
CLAMP ,5 152276, Replaced By: N071555075502, +001A6734921041, +001N000933010129, +001N913004010000
305
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
305
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
311
SCREW BRACKET TO SIDE MEMBER
311
SCREW BRACKET TO SIDE MEMBER
311
SCREW , Replaced By: N304017010002
317
NUT STRAP TO BRACKET
317
NUT STRAP TO BRACKET
317
NUT , Replaced By: N910113010000
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
WASHER , Replaced By: N006902011102
999
BRACKET ON AIR CLEANER BRACKET
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
999
REAR EXHAUST PIPE , Replaced By: A6744920005
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET ON AIR CLEANER BRACKET
999
BRACKET , Replaced By: A3524920141
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
999
BRACKET ,5 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744904640, +001A6734901734
999
BRACKET , Replaced By: A6744903840
999
BRACKET , Replaced By: A6744903740
999
WASHER , Replaced By: N006902011100
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
