Поз.
Артикул
Описание

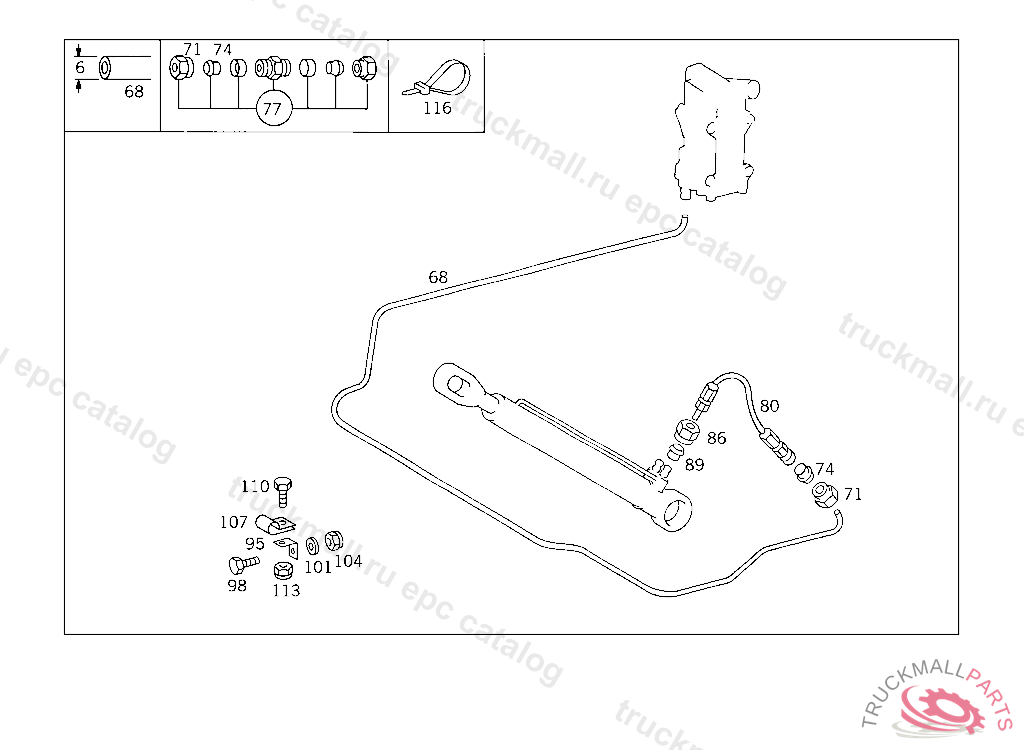

68
PIPE LINE , Replaced By: A0004290001, +002N003861006007, +002N915017006100
68
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
71
UNION NUT
74
GLAND , Replaced By: A0019901667
74
SEAL CONE
77
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
80
HOSE , Replaced By: A3875530182
80
HOSE FROM HYDRAULIC LINE TO CYLINDER
86
UNION NUT
89
GLAND , Replaced By: A0019901667
89
SEAL CONE
95
BRACKET , Replaced By: A3852670040
95
BRACKET SENSOR CABLE TO FRONT AXLE
98
SCREW , Replaced By: N308676012012
98
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
101
WASHER BRACKET TO FRAME
104
NUT SUPPORT TO SIDE MEMBER
107
CLAMP LINE MOUNTING
110
SCREW , Replaced By: N304017006018
110
SCREW COVER PLATE TO COVER PLATE M 6 X 12
113
NUT , Replaced By: N913004006001
113
NUT PUMP TO BRACKET
116
LOOM TIE LINE MOUNTING
