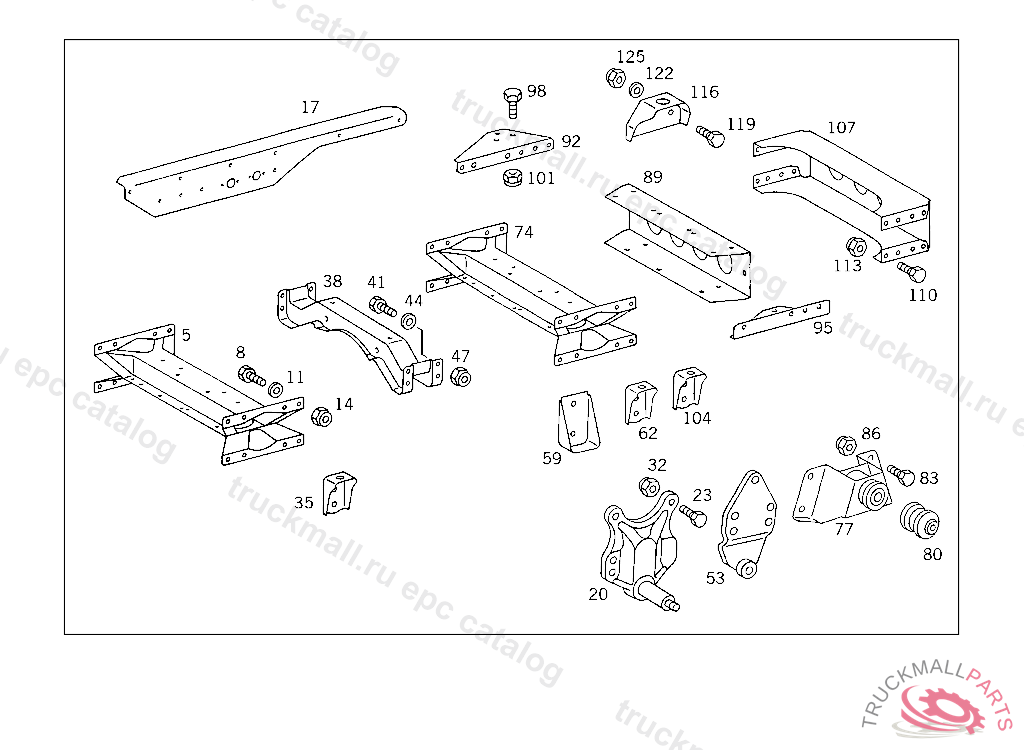

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING BRACKET NO.9
20
SPRING BRACKET REAR SPRING FRONT BRACKET
23
SCREWM 14X15X19X36
23
SCREWM 14X15X17X34
23
SCREWM 14X15X21X38
32
NUT , Replaced By: N910113014000
32
NUT STEERING SUPPORT TO FRAME
35
CONSOLE BODY MOUNTING
38
CROSS MEMBER SHOCK ABSORBER
53
CONSOLE TORSION BAR,REAR
59
REINFORCEMENT AT SIDE MEMBER
62
CONSOLE BODY MOUNTING
77
SPRING BRACKET REAR-SPRING REAR BRACKET
80
BUSHING SPRING EYE,REAR
83
SCREWM 14X15X17X34
86
NUT , Replaced By: N910113014000
86
NUT STEERING SUPPORT TO FRAME
89
CROSS MEMBER
92
GUSSET PLATE TOP LEFT,5 437116
92
GUSSET PLATE TOP RIGHT,5 437116
95
GUSSET PLATE BOTTOM RIGHT,5 437116
95
GUSSET PLATE BOTTOM LEFT,5 437116
98
SCREW , Replaced By: N308676014008
98
SCREW MOUNTING TO CONSOLE M 14X35
98
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
98
SCREW , Replaced By: N308676012012
101
NUT STEERING SUPPORT TO FRAME
101
NUT , Replaced By: N910113012003
101
NUT , Replaced By: N910113014000
101
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
