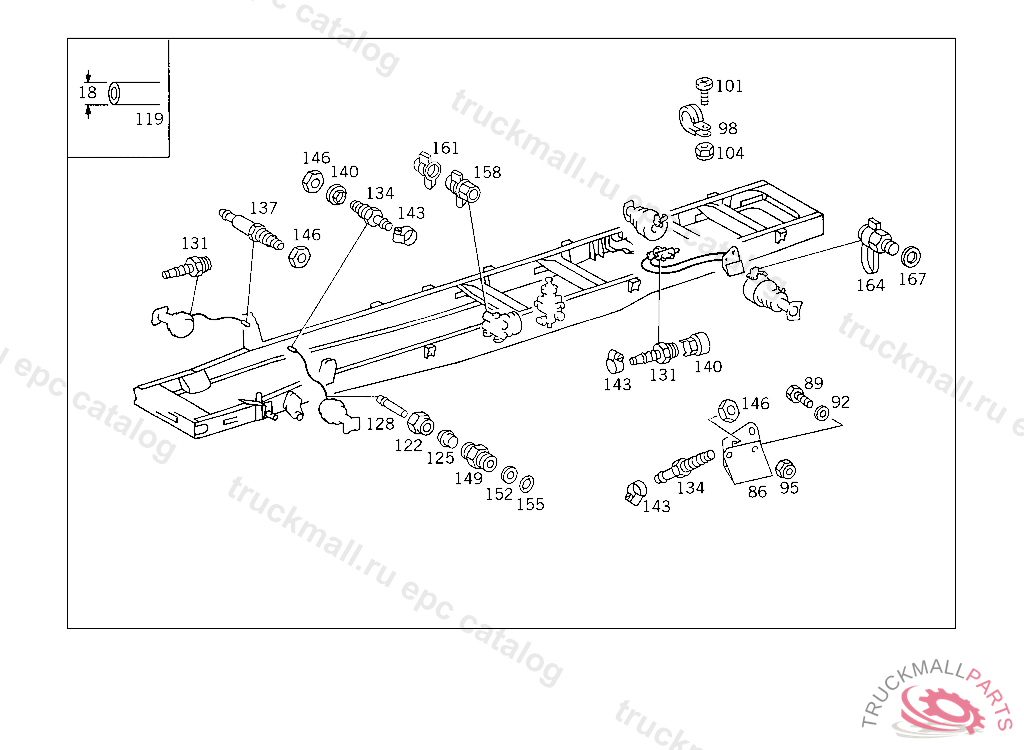

Поз.
Артикул
Описание
86
BRACKET COMPRESSED AIR LINE
89
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
92
WASHER , Replaced By: N006902011100
92
WASHER , Replaced By: N006902011102
95
NUT , Replaced By: N910113010000
95
NUT STRAP TO BRACKET
98
CLAMP BRAKE HOSE BRACKET
101
SCREW CLAMP TO BRACKET
101
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
104
NUT , Replaced By: N913004006001
104
NUT PUMP TO BRACKET
119
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
122
UNION NUT LINE CONNECTION, Replaced By: N000000006239
122
UNION NUT LINE CONNECTION
125
GLAND , Replaced By: A0019901967
125
SEAL CONE LINE CONNECTION
128
FITTING DIAPHRAGM CYLINDER,CONNECTION:
131
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
131
CONNECTOR ,5 288358, Replaced By: A0019901378, +001A6734210073
134
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
137
CONNECTOR COMPRESSED AIR LINE THRU RIGHT SIDE MEMBER TO M 22
140
LOCK REAR AXLE BRAKE HOSE,K 181360
143
CLAMP HOSE TO FITTING AND TO OIL TANK
143
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
146
NUT BRACKET TO SIDE MEMBER
149
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
149
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
O-RING CHECK VALVE TO AIR RESERVOIR
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
158
TEST CONNECTION
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
161
PLUG
164
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
164
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
167
SEAL RING LINE CONNECTION
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
999
BRACKET LINE MOUNTING, K001774
