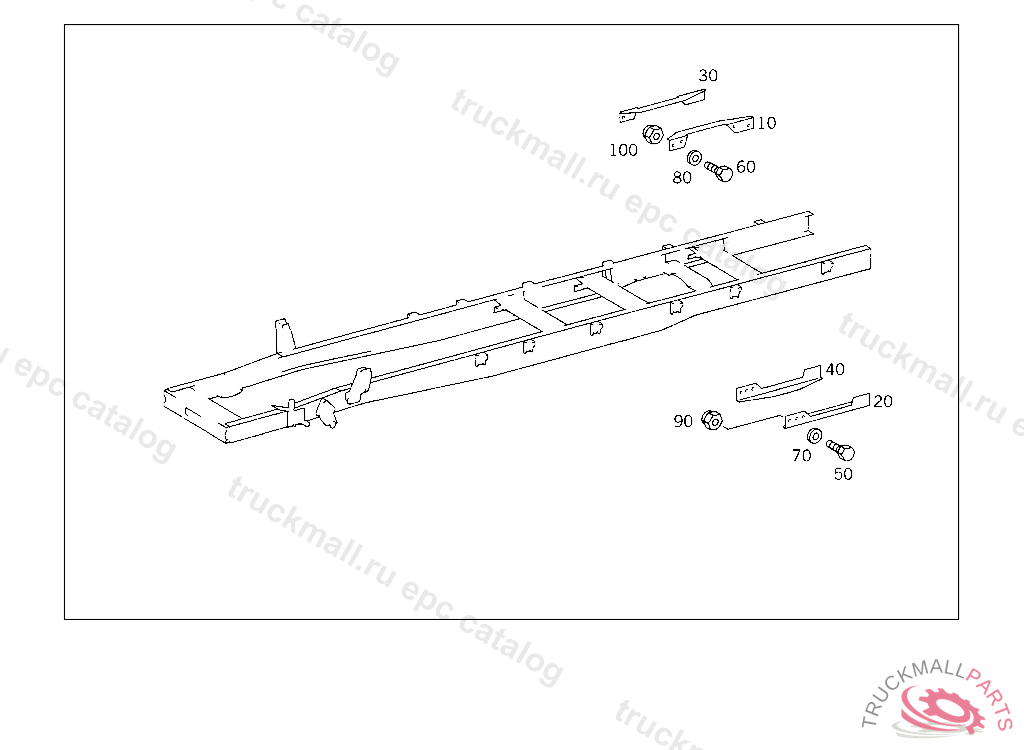

Поз.
Артикул
Описание
10
REINFORCEMENT LEFT TOP
10
REINFORCEMENT LEFT TOP
20
REINFORCEMENT LEFT BOTTOM
20
REINFORCEMENT LEFT BOTTOM
30
REINFORCEMENT RIGHT TOP
30
REINFORCEMENT RIGHT TOP
40
REINFORCEMENT RIGHT BOTTOM
40
REINFORCEMENT RIGHT BOTTOM
50
SCREW CONSOLE TO SIDE MEMBER
50
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
50
SCREW , Replaced By: N308676012012
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
60
SCREW BRACKET TO CROSS CONNECTION STRUT
60
SCREW , Replaced By: N304017008034
60
SCREW BRACKET TO SIDE MEMBER
60
SCREW , Replaced By: N304017010002
60
SCREW END PIECE TO EXHAUST PIPE M 10X25
70
WASHER BRACKET TO FRAME
70
WASHER HELPER SPRING BRACKET TO SIDE MEMBER,5 201989 UP TO IDENT NO. 5 319597,FROM IDENT NO. SEE STANDARD VERSION
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER , Replaced By: N000125008443
80
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
80
WASHER , Replaced By: N006902011102
80
WASHER , Replaced By: N006902011100
90
NUT SUPPORT TO SIDE MEMBER
90
NUT BRACKET TO SIDE MEMBER
90
NUT , Replaced By: N910113014001
100
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
NUT , Replaced By: N913004008001
100
NUT STRAP TO BRACKET
100
NUT , Replaced By: N910113010000
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REAR CROSS MEMBER 12X42 MM
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET REINFORCEMENT TO SIDE MEMBER
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
999
STIFFENING HELPER SPRING BRACKET,5 201989 UP TO IDENT NO. 5 319597,FROM IDENT NO. SEE STANDARD VERSION
999
HELPER SPRING BRACKET HELPER SPRING,5 201989 UP TO IDENT NO. 5 319597,FROM IDENT NO. SEE STANDARD VERSION
