Поз.
Артикул
Описание

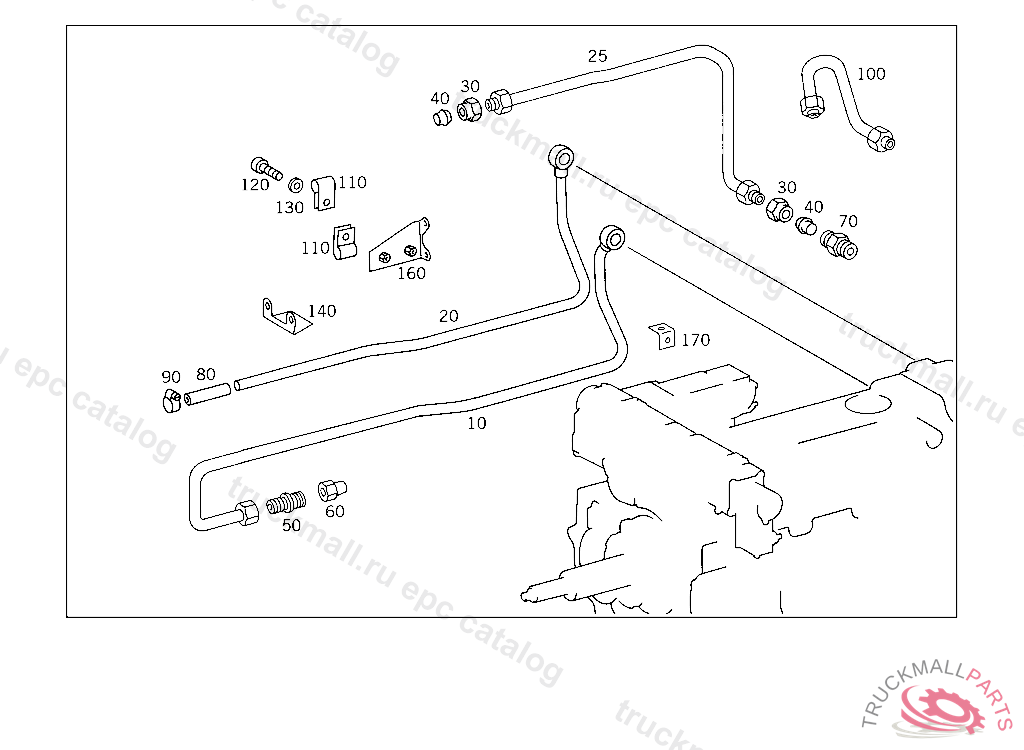

10
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,BOTTOM
10
PIPE TRANSMISSION OIL COOLING SYSTEM
10
OIL LINE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,BOTTOM
10
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,BOTTOM
10
PIPE OIL LINE TO TRANSMISSION
10
PIPE TRANSMISSION OIL COOLING SYSTEM
10
PIPE , Replaced By: A6552604985
10
PIPE TRANSMISSION OIL COOLING SYSTEM
20
PIPE TRANSMISSION OIL COOLING SYSTEM
20
PIPE , Replaced By: A6552605585
20
PIPE , Replaced By: A6552604885
20
PIPE TRANSMISSION OIL COOLING SYSTEM
20
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
20
PIPE TRANSMISSION OIL COOLING SYSTEM
20
PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
25
OIL LINE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
30
NUT. UNION NUT LINE CONNECTION
40
CUTTING RING. GLAND LINE CONNECTION
50
FITTING OIL LINE TO TRANSMISSION
60
PLUG OIL LINE TO TRANSMISSION
70
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
80
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
90
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
90
CLAMP , Replaced By: N000000000667
100
PIPE OIL LINE
110
CLAMP FEED LINE TO THERMOSTAT
120
SCREW BEARING BRACKET TO TRANSMISSION
120
SCREWM 6X16
130
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
130
WASHER COMPRESSED AIR LINE TO BRACKET
140
BRACKET TRANSMISSION
160
BRACKET TRANSMISSION
160
BRACKET FEED LINE TO TRANSMISSION
170
ANGLE LINE MOUNTING
999
BRACKET OIL LINE TO TRANSMISSION
