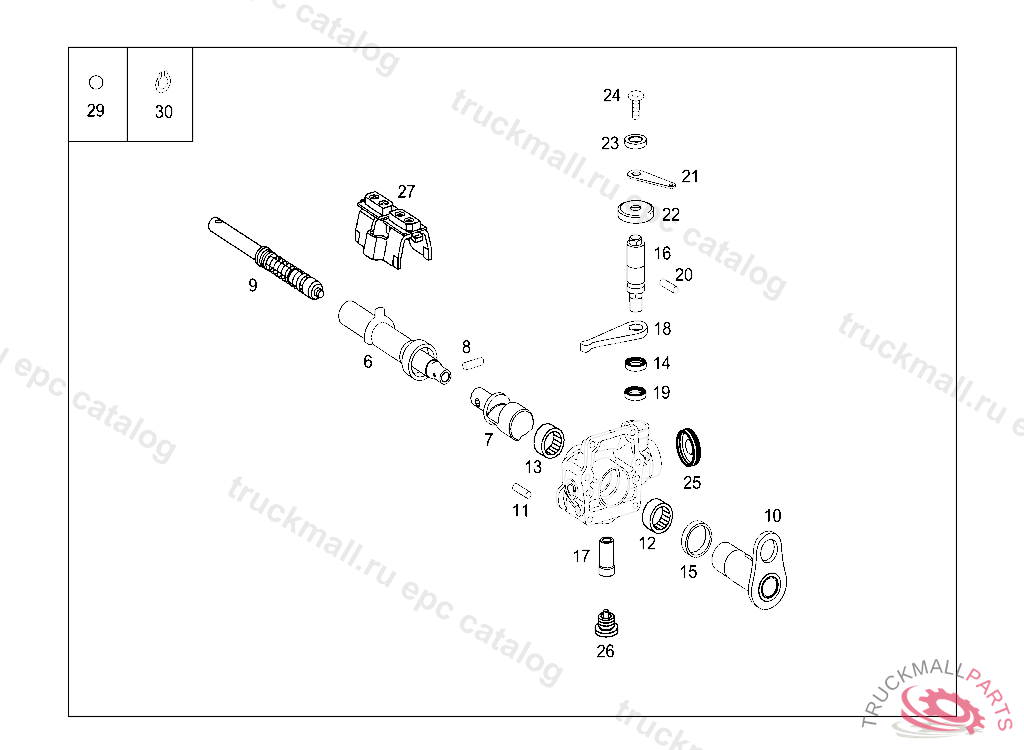

Поз.
Артикул
Описание
6
SELECTOR SHAFT
6
SELECTOR SHAFT (SHIFTING SHAFT)
7
INDEXING BOLT
8
ROLL PIN
9
PRESSURE PIN
10
GEARSHIFT LEVER (SHIFTING SHAFT)
10
SHIFT TUBE
11
SLEEVE OUTSIDE BEARING COVER, TO BE ORDERED ONLY FROM MBB
11
SCREW , Replaced By: A1199900401
12
NEEDLE BEARING
12
BALL SLEEVE
13
NEEDLE BEARING BEARING COVER
13
NEEDLE BEARING BEARING COVER
14
SEAL RING
15
SEAL RING ,ZAA 1000/02N11 Y30938 05.01.04
15
SEAL RING BEARING COVER,INSIDE
16
SHAFT
16
SHAFT (SHIFTING SHAFT)
17
BUSH, ROTARY COLLAR
18
SHIFT LEVER
18
SELECTOR LEVER (SHIFTING SHAFT)
19
SPACER WASHER
20
CYLINDER PIN
21
SELECTOR LEVER
21
SELECTOR LEVER (SHIFTING SHAFT)
22
COVERING
23
SPACER WASHER
24
SCREW
25
EXPANSION PLUG
26
PLUG
27
PAWL SHIFTING RAIL
29
SNAP RING BEARING TO SHIFTING FORK
30
BALL P.T.O. SHAFT
