Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ

OM 366 376.908

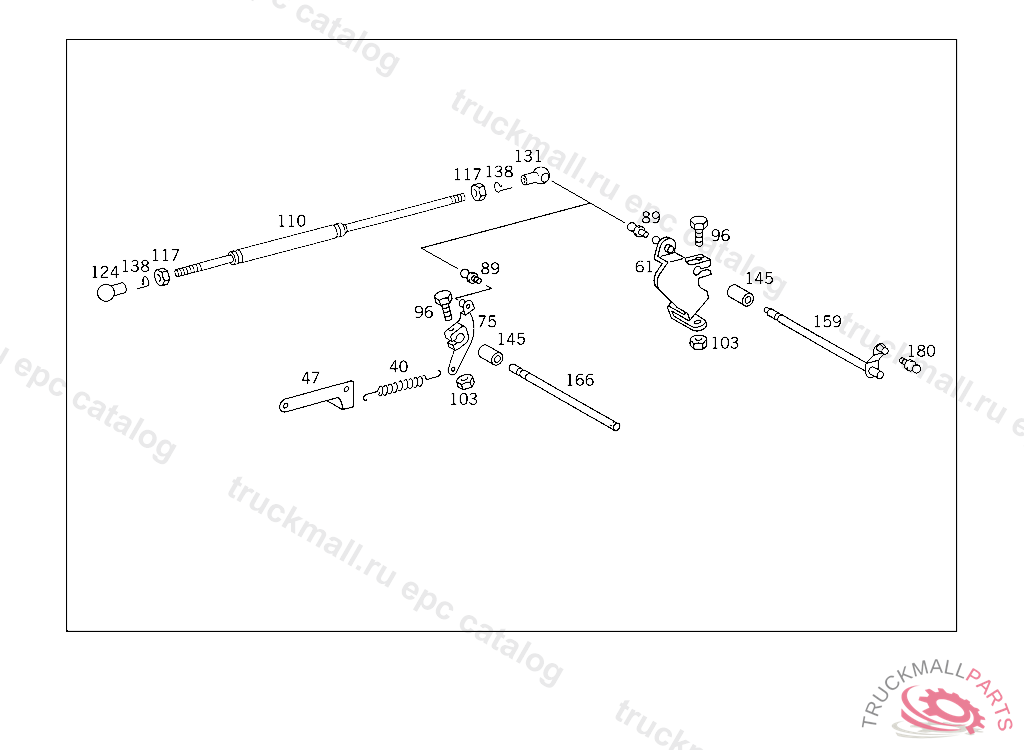

07 INJECTION PUMP - 135 MANUAL CONTROL IL. 2

Поз.
Артикул
Описание
40
A3199930510
SPRING ACCELERATOR CONTROL LINKAGE RELEASE SPRING
47
A3660720740
BRACKET
75
A3760701021
LEVER CONTROL LEVER
89
N071803010209
BALL PIVOT , Replaced By: A3129910120
89
A3449917515
BALL PIVOT
96
N000933006061
SCREW LEVER TO THROTTLE VALVE SHAFT
103
N000934006006
NUT
110
A3763001915
ROD SPRING-LOADED
117
N000934006006
NUT
124
N071805010202
BALL SOCKET AT CONTROL LEVER
131
A0009912422
BALL SOCKET PULL ROD TO LEVER
138
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
145
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
145
A3210720253
SPACER TUBE , Replaced By: A3210720053
166
A3760727310
SHAFT , Replaced By: A3760722010
166
A3760722010
SHAFT (CONTROL SHAFT)
