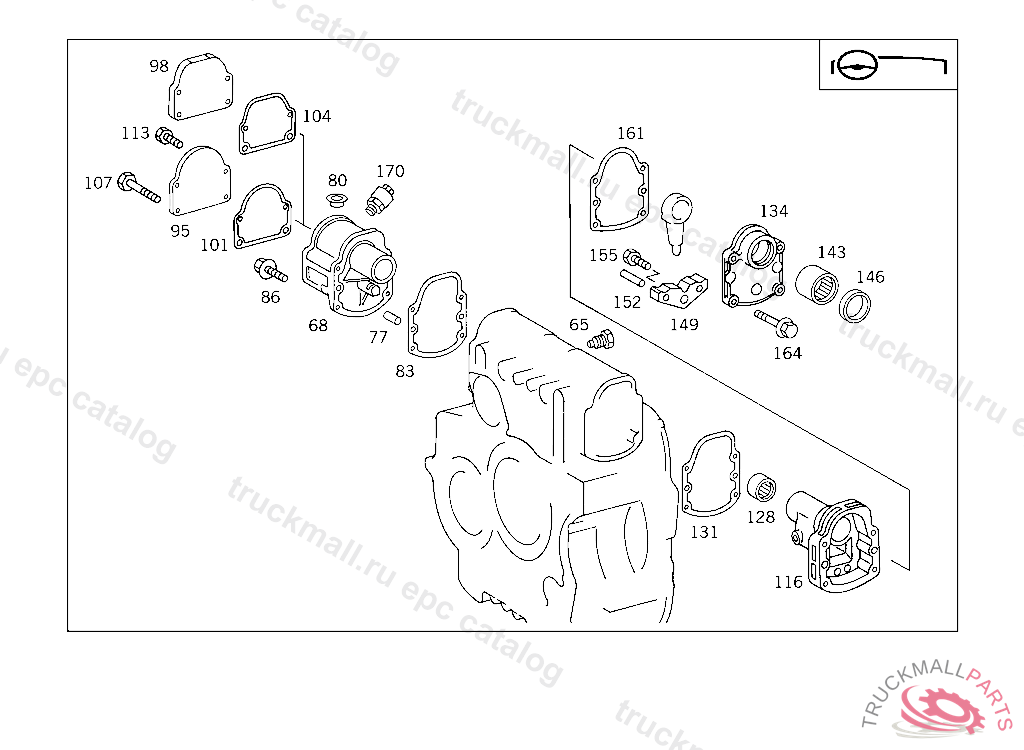

Поз.
Артикул
Описание
65
GUIDE PIVOT TRANSMISSION CASE
65
GUIDE PIVOT TRANSMISSION CASE
65
GUIDE PIVOT , Replaced By: A9472680039
65
GUIDE PIVOT , Replaced By: A9452680139
68
BEARING COVER
68
BEARING COVER , AS A SEALANT USE: A 002 989 23 20 IN PLACE OF A 389 268 11 80, Replaced By: A3892681812, +001A1369970830, +001N007603018100
68
BEARING COVER INTERLOCK, NORMAL GEARSHIFT SYSTEM
77
CYLINDRICAL PIN
77
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
80
COVER BEARING COVER
83
GASKET BEARING COVER TO TRANSMISSION CASE
86
SCREW PIPE BEND TO BRACKET
95
BEARING COVER INTERLOCK
98
COVER BEARING COVER INTERLOCK
101
GASKET BEARING COVER TO TRANSMISSION CASE
101
GASKET , Replaced By: A3892682180
104
GASKET , Replaced By: A3892682080
104
GASKET COVER TO TRANSMISSION
107
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
107
SCREW , Replaced By: N304014008021
113
SCREW PIPE CLAMP
116
BEARING COVER INSIDE, AS A SEALANT USE: A 002 989 23 20 IN PLACE OF A 389 268 11 80
116
BEARING COVER INSIDE, AS A SEALANT USE: A 002 989 23 20 IN PLACE OF A 389 268 11 80
116
BEARING COVER , Replaced By: A3892681312
128
NEEDLE BEARING , Replaced By: A0099810510
128
NEEDLE BEARING , Replaced By: A0099810510
128
NEEDLE BEARING BEARING COVER
134
BEARING COVER OUTSIDE, NORMAL GEARSHIFT SYSTEM
134
BEARING COVER , Replaced By: A3892686412
134
BEARING COVER , Replaced By: A3892686412
143
NEEDLE BEARING BEARING COVER
143
NEEDLE BEARING BEARING COVER
143
NEEDLE BEARING BEARING COVER
146
SEAL RING OUTSIDE BEARING COVER
149
SHIFTING SEGMENT GEAR INTERLOCK
149
DETENT , Replaced By: A3872681846, +002N308748006000
152
CLAMPING PIN SHIFTING SEGMENT
152
CLAMPING PIN SHIFTING SEGMENT
155
SCREW BRACKET TO APPARATUS SUPPORT
155
SCREW , Replaced By: A0099900101
155
SCREW , Replaced By: N000933008337
155
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
161
GASKET BEARING COVER TO TRANSMISSION CASE
164
SCREW SENDER UNIT TO BRACKET M 8X60
170
BREATHER TRANSFER CASE
999
GUIDE TUBE BREATHER
999
CAP BREATHER
999
SPACER TUBE , Replaced By: A7112610043
